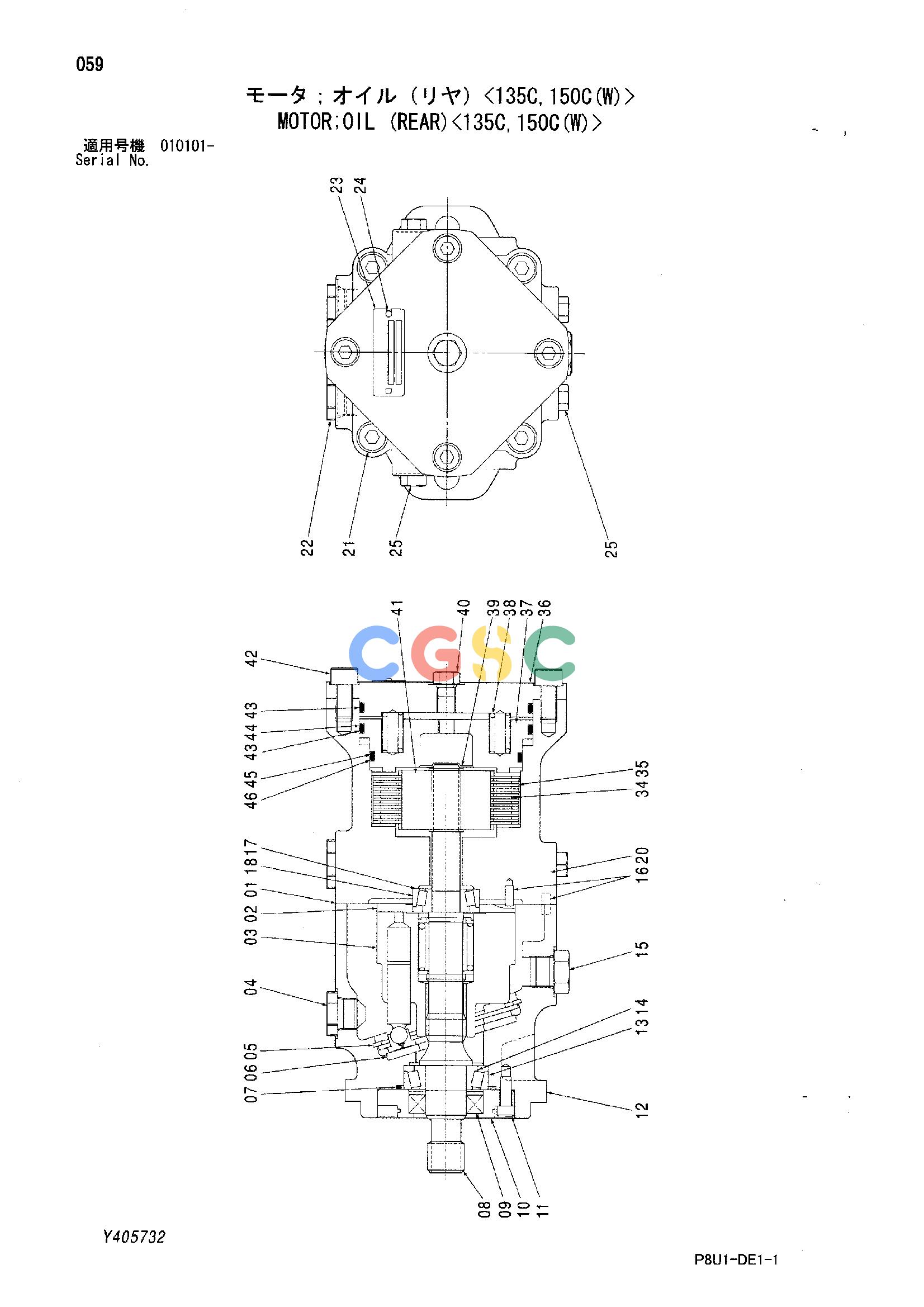

日立零件查询（CC150CW）MOTOR;OIL (REAR)<135C,150C(W)> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425462 | [1] | MOTOR;OIL | |
| 01. | 425462-01 | [1] | GASKET | |
| 02. | 425462-02 | [1] | PLATE;VALVE | |
| 03. | 425462-03 | [1] | BLOCK;CYL. | |
| 04. | 425462-04 | [1] | PLUG | |
| 05. | 425462-05 | [1] | RING;RETAINING | |
| 06. | 425462-06 | [1] | PLATE;THRUST | |
| 07. | 425462-07 | [1] | O-RING | |
| 08. | 425462-08 | [1] | SHAFT | |
| 09. | 425462-09 | [1] | SEAL | |
| 10. | 425462-10 | [1] | COVER | |
| 11. | 425462-11 | [4] | BOLT;SOCKET | |
| 12. | 425462-12 | [1] | HOUSING | |
| 13. | 425462-13 | [1] | BRG. | |
| 14. | 425462-14 | [1] | BRG. | |
| 15. | 425462-15 | [1] | PLUG | |
| 16. | 425462-16 | [3] | PIN | |
| 17. | 425462-17 | [1] | SHIM | |
| 18. | 425462-18 | [1] | BRG. | |
| 20. | 425462-19 | [1] | CAP | |
| 21. | 425462-20 | [4] | BOLT;SOCKET | |
| 22. | 425462-21 | [2] | PLUG | |
| 23. | +++++++ | [1] | NAME-PLATE | |
| 24. | 425463-54 | [2] | SCREW;DRIVE | |
| 25. | 232061 | [4] | PLUG | |
| 34. | 425462-22 | [10] | PLATE;FRICTION | |
| 35. | 944688 | [11] | PLATE | |
| 36. | 425462-23 | [1] | COVER | |
| 37. | 941151 | [1] | PISTON | |
| 38. | 941155 | [10] | SPRING | |
| 39. | 150005 | [2] | RING;RETAINING | |
| 40. | 425462-24 | [1] | PLUG | |
| 41. | 425462-25 | [1] | HUB | |
| 42. | 508028 | [4] | BOLT;SOCKET | |
| 43. | 941153 | [2] | O-RING | |
| 44. | 425462-26 | [1] | RING;BACK-UP | |
| 45. | 446778 | [1] | O-RING | |
| 46. | 448405 | [1] | RING;BACK-UP | |
