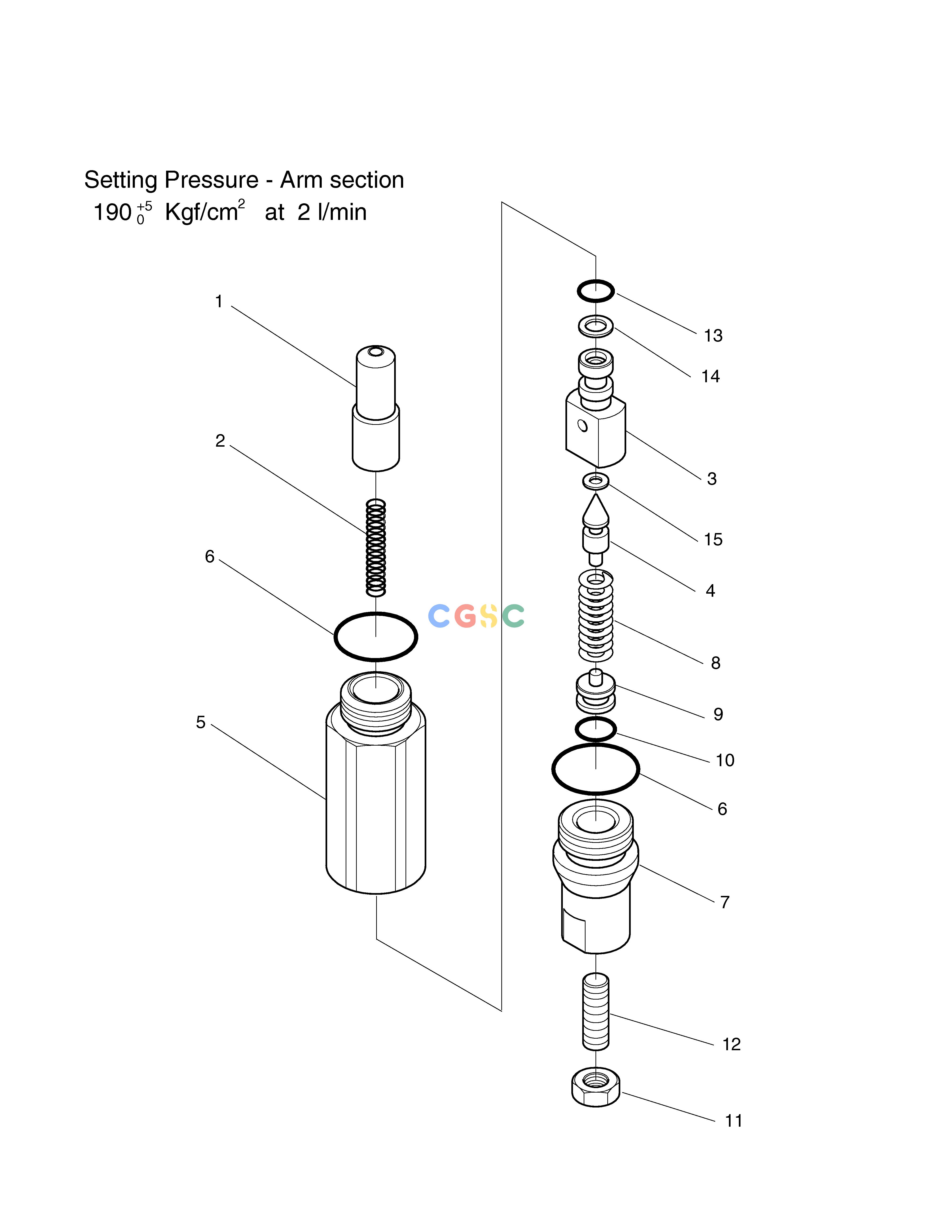

斗山零件查询O/L RELIEF VALVE ASS'Y SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
937 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2371417430701
|
[1] |
VALVE
|
|
| 10. |
0401100006000
|
[1] |
O-RING 1A P6
|
|
| 11. |
0101031006004
|
[1] |
NUT M6
|
|
| 12. |
0051010601851
|
[1] |
BOLT;ADJUST M6X18
|
|
| 13. |
0402100000300
|
[1] |
O-RING 1A P3
|
|
| 14. |
6254420079101
|
[1] |
RING;BACK-UP
|
|
| 15. |
6254330142901
|
[1] |
SEAL;CAP
|
|
| 2. |
6257417430801
|
[1] |
SPRING
|
|
| 3. |
2371417430901
|
[1] |
SLEEVE
|
|
| 4. |
2371417117801
|
[1] |
POPPET
|
|
| 5. |
2371417431001
|
[1] |
SOCKET
|
|
| 6. |
0401100014010
|
[2] |
O-RING 1B P14
|
|
| 7. |
2371417006601
|
[1] |
CASING
|
|
| 8. |
6257417093701
|
[1] |
SPRING
|
|
| 9. |
2371416998201
|
[1] |
GUIDE;SPRING
|
|
