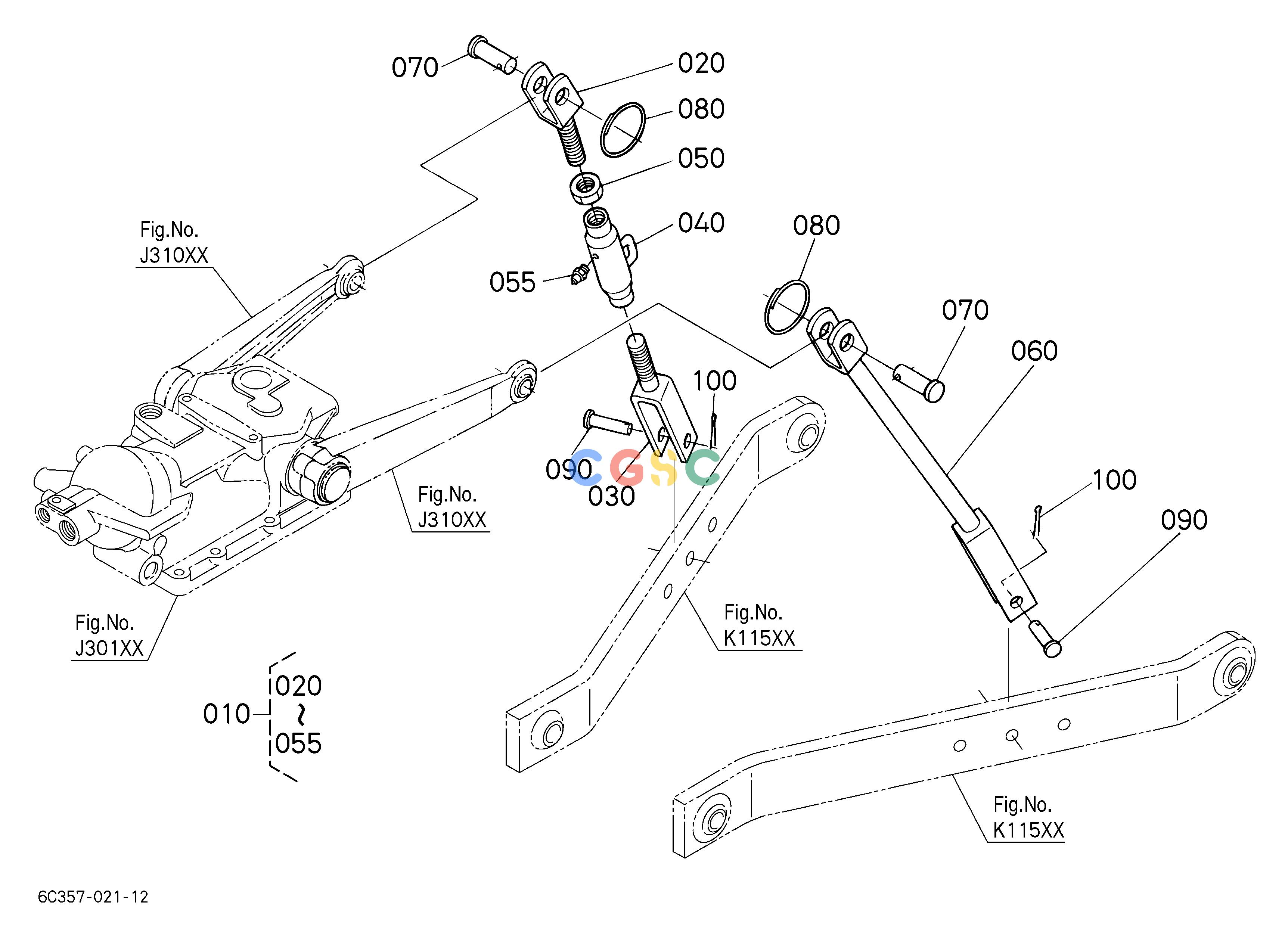

久保田零件查询K10100 3-POINT LINKAGE 2 (LIFT ROD) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C35765200
|
[1] |
ASSY ROD,LIFT RH
|
3.6300(lbs); 1.650
|
| 020. |
6C35765230
|
[1] |
ROD,LIFT RH
|
0.9900(lbs); 0.450
|
| 030. |
6C07065240
|
[1] |
ROD,LIFT RH
|
1.6060(lbs); 0.730
|
| 040. |
6C07065250
|
[1] |
ROD,LIFT MIDDLE
|
0.9900(lbs); 0.450
|
| 050. |
0217250180
|
[1] |
HEX.NUT
|
0.0462(lbs); 0.021
|
| 055. |
0661310675
|
[1] |
NIPPLE,GREASE
|
0.0066(lbs); 0.003
|
| 060. |
6C35765270
|
[1] |
ROD,LIFT LH
|
3.1240(lbs); 1.420
|
| 070. |
0512251650
|
[2] |
PIN,JOINT
|
0.1980(lbs); 0.090
|
| 080. |
6715634340
|
[2] |
RING,SNAP
|
0.0220(lbs); 0.010
|
| 080. |
6E04076740
|
[2] |
RING,SNAP
|
0.0154(lbs); 0.007
|
| 090. |
0512251250
|
[2] |
PIN JOINT
|
0.1100(lbs); 0.050
|
| 090. |
6C35065280
|
[2] |
PIN,JOINT
|
0.1056(lbs); 0.048
|
| 100. |
0551150430
|
[2] |
PIN,SPLIT
|
0.0088(lbs); 0.004
|
