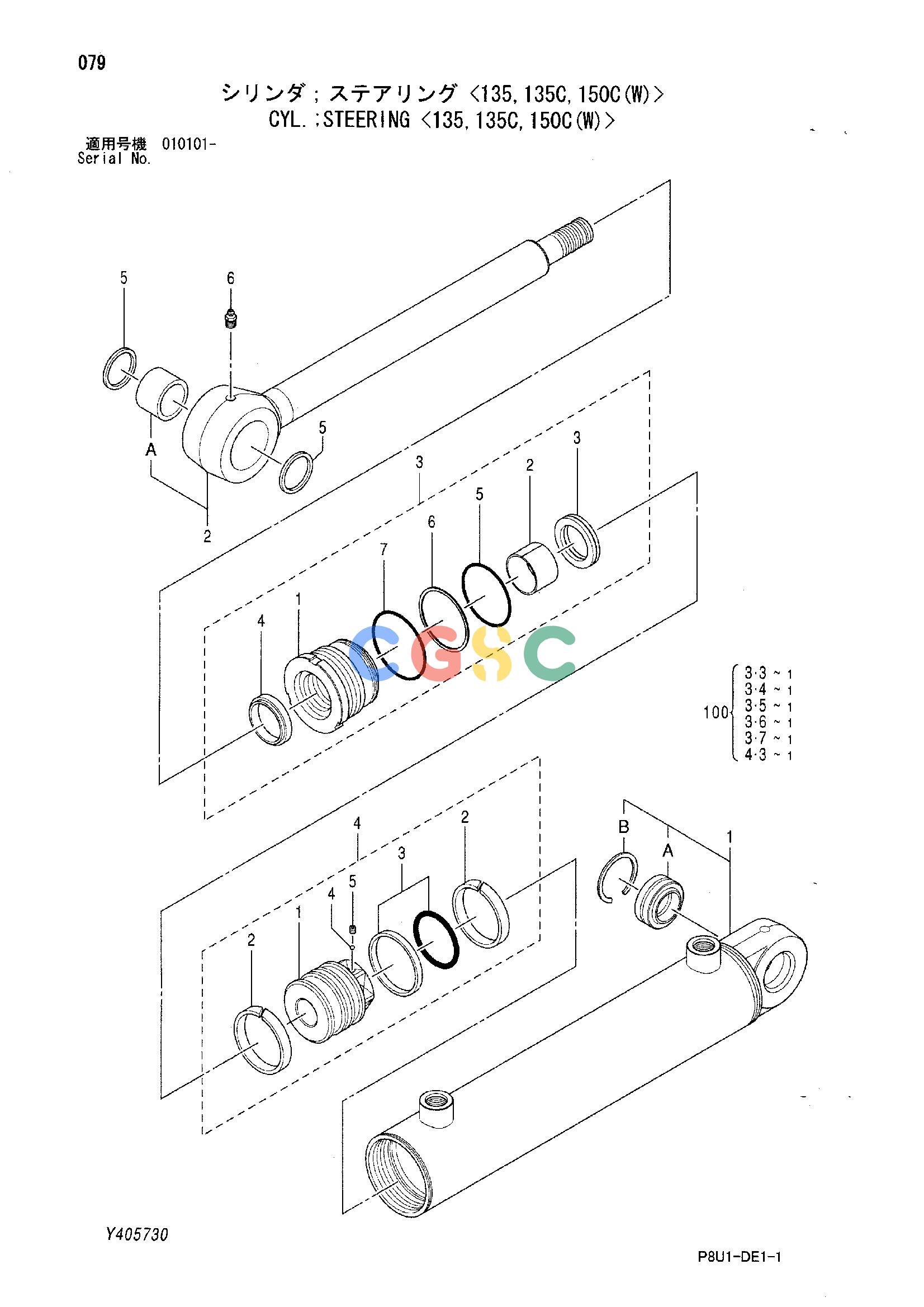

日立零件查询（CC150CW）CYL.;STEERING <135,135C,150C(W)> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
145 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425460 | [1] | CYL.;STEERING | |
| 1. | 425460-10 | [1] | TUBE;CYL | |
| 1A. | 425460-11 | [1] | BUSHING;SPH. | |
| 1B. | 425460-12 | [1] | RING;RETAING | |
| 2. | 425460-20 | [1] | ROD;PISTON | |
| 2A. | 425460-21 | [1] | BUSHING | |
| 3. | 425460-30 | [1] | HEAD;CYL.ASS'Y | |
| 3-1. | 425460-31 | [1] | HEAD;CYL. | |
| 3-2. | 425460-32 | [1] | BUSHING | |
| 3-3. | 425460-33 | [1] | PACKING;U-RING | |
| 3-4. | 425460-34 | [1] | RING;WIPER | |
| 3-5. | 425460-35 | [1] | O-RING | |
| 3-6. | 425460-36 | [1] | RING;BACK-UP | |
| 3-7. | 425460-37 | [1] | O-RING | |
| 4. | 425460-40 | [1] | PISTON ASS'Y | |
| 4-1. | 425460-41 | [1] | PISTON | |
| 4-2. | 425460-42 | [2] | RING;SLIDE | |
| 4-3. | 425460-43 | [1] | RING;SEAL | |
| 4-4. | 425460-44 | [1] | BALL;STEEL | |
| 4-5. | 425460-45 | [1] | SCREW;SET | |
| 5. | 425460-50 | [2] | SEAL;DUST | |
| 6. | 425460-60 | [1] | FITTING;GREASE | |
| 100. | 426455 | [1] | KIT;SEAL | |
