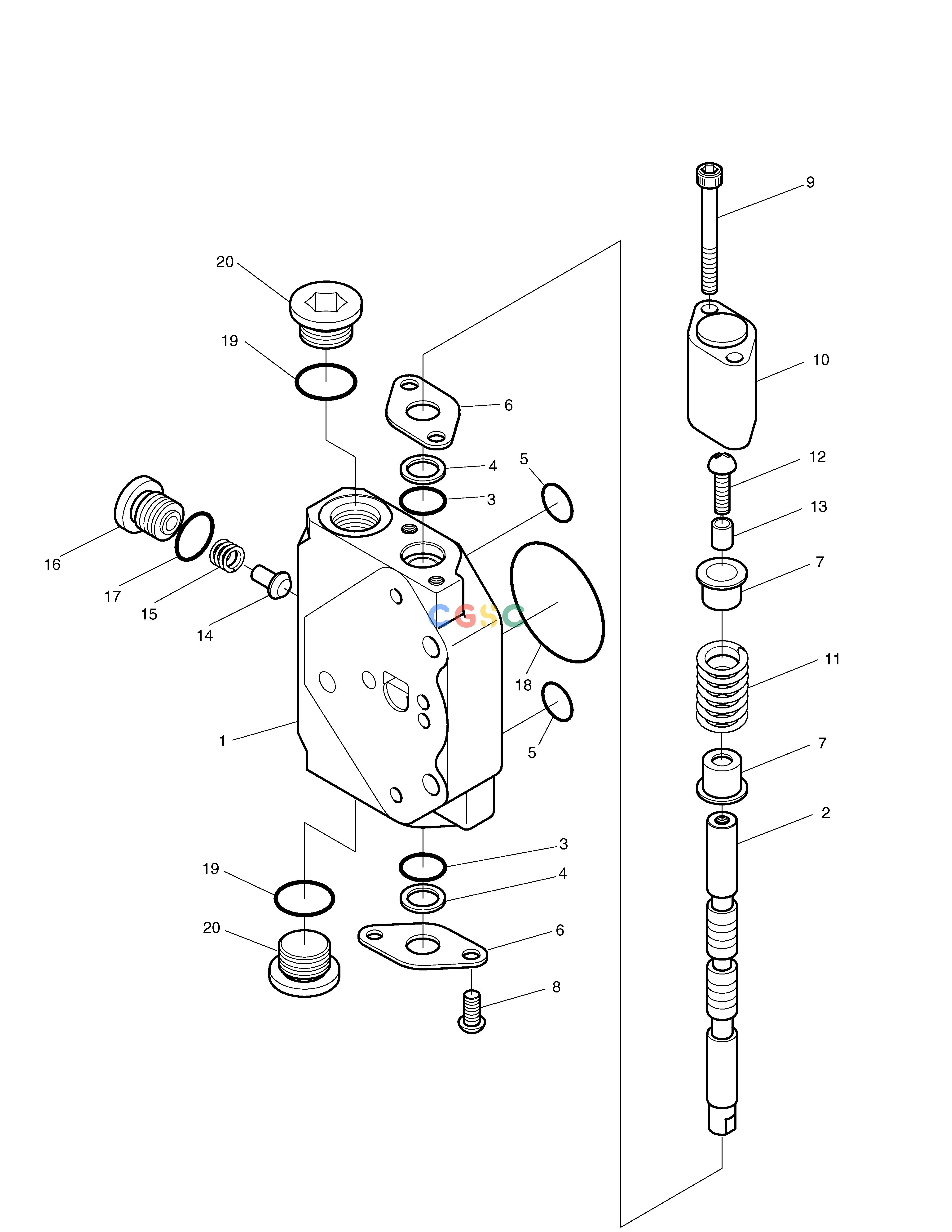

斗山零件查询WORK BODY ASS'Y-AUX. SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2371217042601
|
[1] |
BODY-WORK
|
|
| 10. |
2371416994601
|
[1] |
CAP;SPRING RETURN
|
|
| 11. |
6257417185601
|
[1] |
SPRING;SPOOL
|
|
| 12. |
6251420018001
|
[1] |
SCREW
|
|
| 13. |
2371420018201
|
[1] |
SPACER
|
|
| 14. |
2332090701014
|
[1] |
POPPET;CHECK VALVE
|
|
| 15. |
6257417053001
|
[1] |
SPRING;CHECK VALVE
|
|
| 16. |
2371416994501
|
[1] |
PLUG;CHECK VALVE
|
|
| 17. |
0401100011010
|
[1] |
O-RING 1B P11
|
|
| 18. |
0403100012710
|
[1] |
O-RING ARP 1B127
|
|
| 19. |
0401100014010
|
[2] |
O-RING 1B P14
|
|
| 2. |
2371417008505
|
[1] |
SPOOL
|
|
| 20. |
6251416995201
|
[2] |
PLUG PF3/8
|
|
| 3. |
0401101010000
|
[2] |
O-RING 1B P10A
|
|
| 4. |
0440211010000
|
[2] |
RING;BACK-UP
|
|
| 5. |
0401100010010
|
[2] |
O-RING 1B P10
|
|
| 6. |
2371416994701
|
[2] |
SEAT;O-RING
|
|
| 7. |
2371416994801
|
[2] |
SEAT;SPRING
|
|
| 8. |
0031110501064
|
[2] |
SCREW
|
|
| 9. |
0002010504551
|
[2] |
BOLT;SOCKET
|
|
