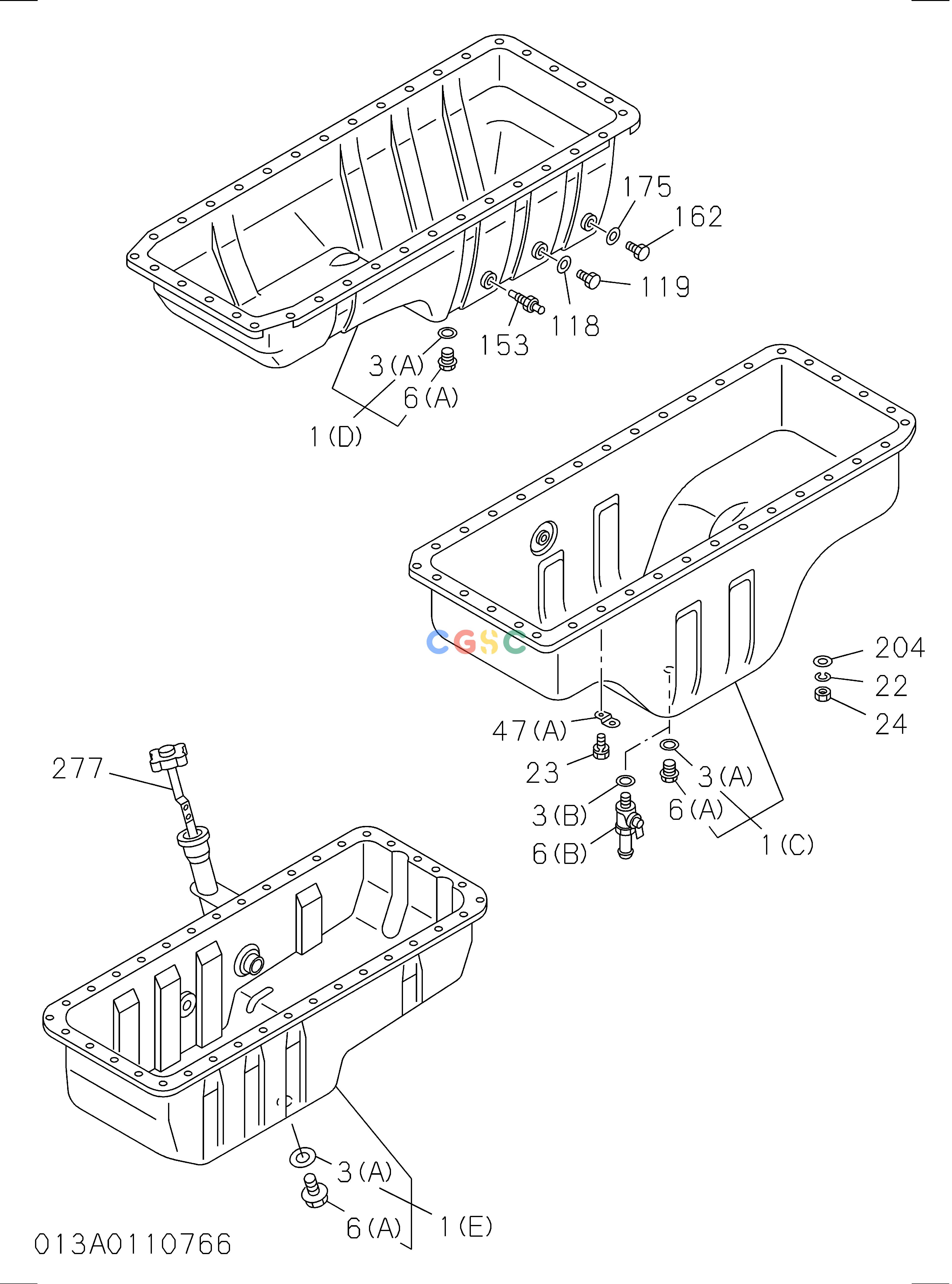

日立零件查询（CD1500）013: OIL PAN AND LEVEL GAUGE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
241 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(C). | 1113607913 | [1] | PAN ASM; OIL | |
| 002(D). | 1117604130 | [1] | GAUGE; OIL LEVEL | C |
| 002(D). | 1117604170 | [1] | GAUGE; OIL LEVEL | C |
| 002(D). | 1117604490 | [1] | GAUGE; OIL LEVEL | |
| 003(A). | 1096230580 | [1] | GASKET; DRAIN PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 006(A). | 1096040641 | [1] | PLUG; OIL DRAIN | A |
| 006(A). | 1096040220 | [1] | PLUG; OIL DRAIN | |
| 008(E). | 1117664271 | [1] | TUBE; GUIDE,OIL LEVEL GAUGE | C |
| 008(E). | 8980003750 | [1] | TUBE; GUIDE,OIL LEVEL GAUGE | |
| 016. | 1113671130 | [1] | GASKET; OIL PAN TO C/BL | A ALSO INCLUDED IN GASKET SET(ENGINE) |
| 016. | 1113671291 | [1] | GASKET; OIL PAN TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 016. | 8981872580 | [1] | GASKET; OIL PAN TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 022. | 9091505080 | [6] | WASHER; LK,OIL PAN | A |
| 022. | 0915105080 | [6] | WASHER; LK,OIL PAN | |
| 023. | 0501408220 | [30] | BOLT; OIL PAN | C |
| 023. | 0506408220 | [30] | BOLT; OIL PAN | |
| 024. | 9091104080 | [6] | NUT; OIL PAN | A |
| 024. | 0911105080 | [6] | NUT; OIL PAN | |
| 047(B). | 1112290140 | [1] | CLIP; HOSE,AIR BREATHER | |
| 047(C). | 1113691150 | [1] | CLIP; HOSE,AIR BREATHER | |
| 109. | 8971312230 | [1] | SWITCH; OIL LEVEL | |
| 110. | 1096233550 | [1] | GASKET; SW,OIL LEVEL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 111. | 5113690720 | [1] | SPACER; SW,OIL LEVEL | |
| 112. | 0501406280 | [3] | BOLT; SW,OIL LEVEL | M6X28 |
| 189. | 0911502100 | [1] | NUT; GUIDE | A M10 FLANGE |
| 189. | 0911802100 | [1] | NUT; GUIDE | M10 FLANGE |
| 204. | 9091605080 | [6] | WASHER; PL,OIL PAN | A |
| 204. | 0916105080 | [6] | WASHER; PL,OIL PAN | |
