纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6520[001]) - ROPS CAB New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
167 次

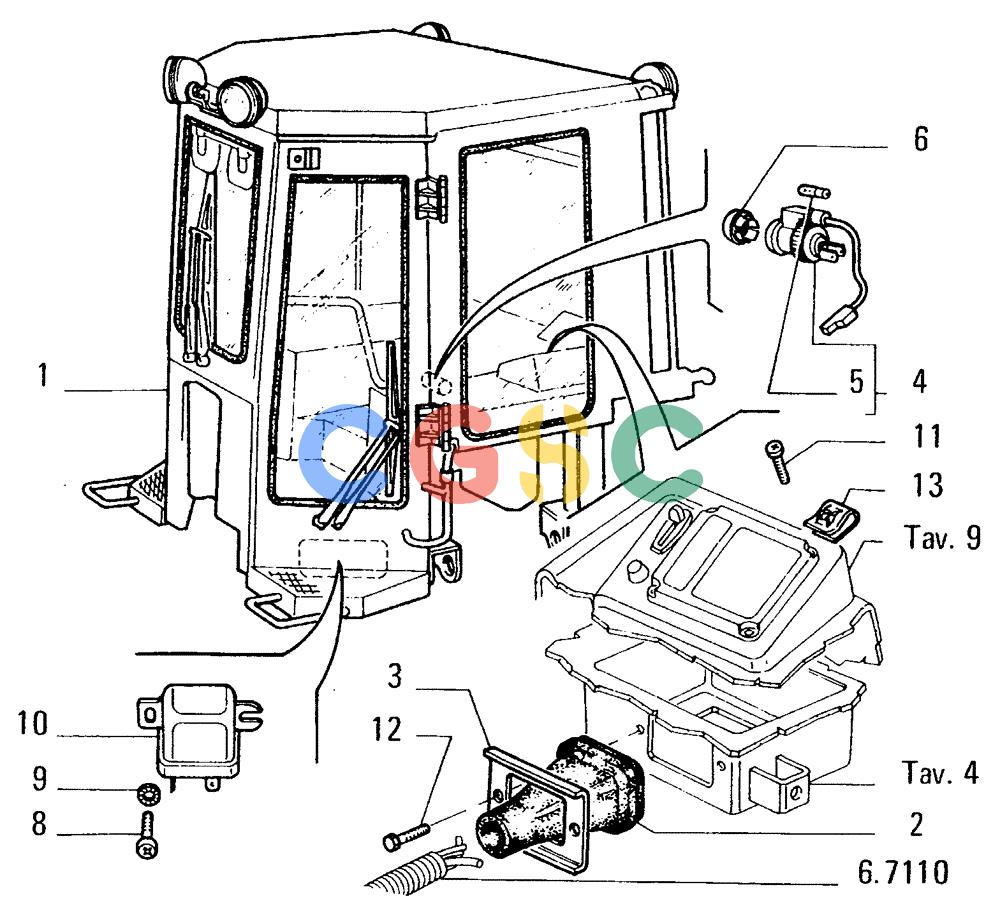

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79097399 | [1] | CAB | LECROPS CAB - ASSEMBLY SEE TAV.4-15 |
| 2. | 79073088 | [1] | BOOT | LECSHEATH |
| 3. | 79073087 | [1] | CONSOLE | LECBRACKET |
| 4. | 79087644 | [1] | POWER SOCKET | LECRECEPTACLE - ASSEMBLY Superseded by part number: 79112029 |
| 5. | 14143890 | [1] | BULB | MKTC2664 |
| 6. | 79085304 | [1] | PLUG | LECC2664 |
| 8. | 14305024 | [2] | HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd | LEC |
| 9. | 10615479 | [2] | LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk | LECWASHER, LOCK, Ext Tooth, M6, Serr Superseded by part number: |
| 10. | 79051879 | [1] | RELAY | LEC- IN ALTERNATIVE Superseded by part number: 79056428 |
| 10. | 79056428 | [1] | RELAY | LEC- IN ALTERNATIVE |
| 11. | 13272617 | [4] | SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8 | LEC |
| 12. | 14432231 | [2] | HEX SOC SCREW,M6 x 22mm, Cl 10.9, Full Thd | BAS |
| 13. | 79076795 | [4] | SPRING | LECFASTENER |
