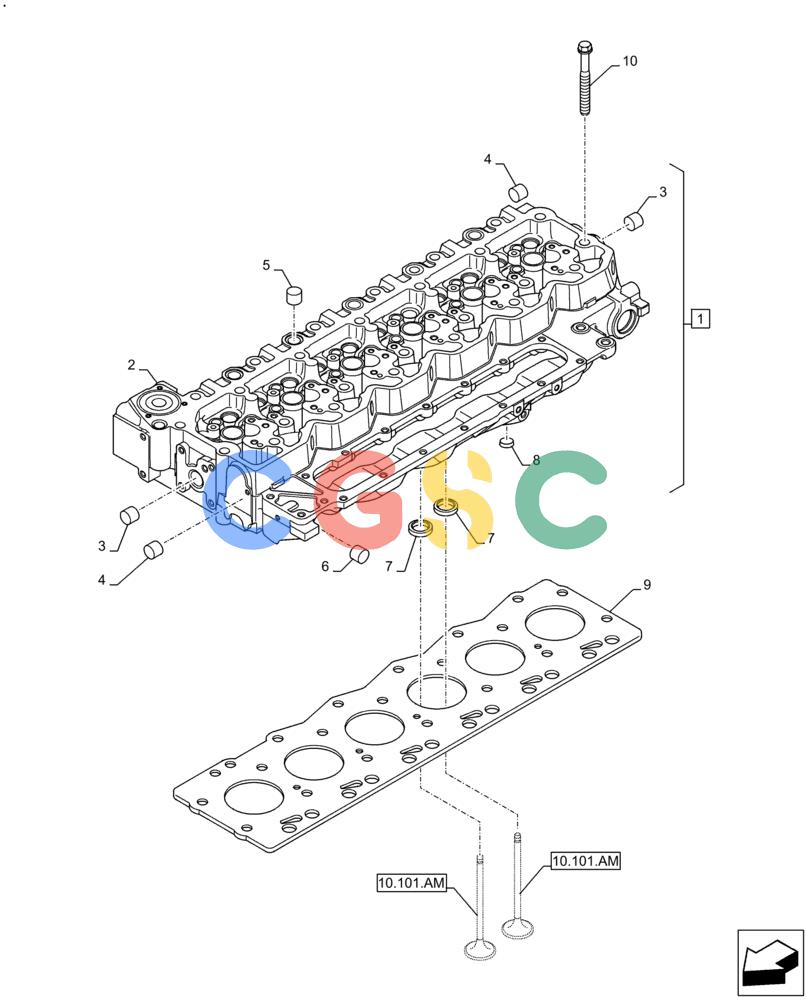

神钢零件查询(F4HFE613A B004) - ENGINE 5801862189 - 47587179 TIER 4B (7/15-) (10.101.AA[01]) - CYLINDER HEAD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
921 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2831274 | [1] | CYLINDER HEAD,6 Cylinders | TORASSY, Incl 2 Superseded by part number: |
| 1. | 2831274R | [1] | REMAN-CYLINDER HEAD | TOR |
| 1. | 2831274C | [1] | CORE-CYLINDER HEAD | TORReturn Number |
| 2. | 2831279 | [1] | CYLINDER HEAD,6 Cylinders | TORASSY, Incl 3, 8 |
| 2. | NS | [1] | NOT SERVICED | BAS |
| 3. | 4895085 | [13] | EXPANSION PLUG,25.74mm | TOR |
| 4. | 4895406 | [7] | EXPANSION PLUG,9.8mm OD | TOR |
| 5. | 4895089 | [11] | PLUG,0.886" L | TOR0.886mm OD |
| 6. | 4895407 | [2] | EXPANSION PLUG,38.28mm OD | TOR |
| 7. | 4897578 | [12] | VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L | TORIntake |
| 7. | 4897106 | [12] | VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L | TORExhaust |
| 8. | 4893036 | [1] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 10. | 4891025 | [14] | SCREW,Flng, M12 x 1.75 x 150mm | TOR |
