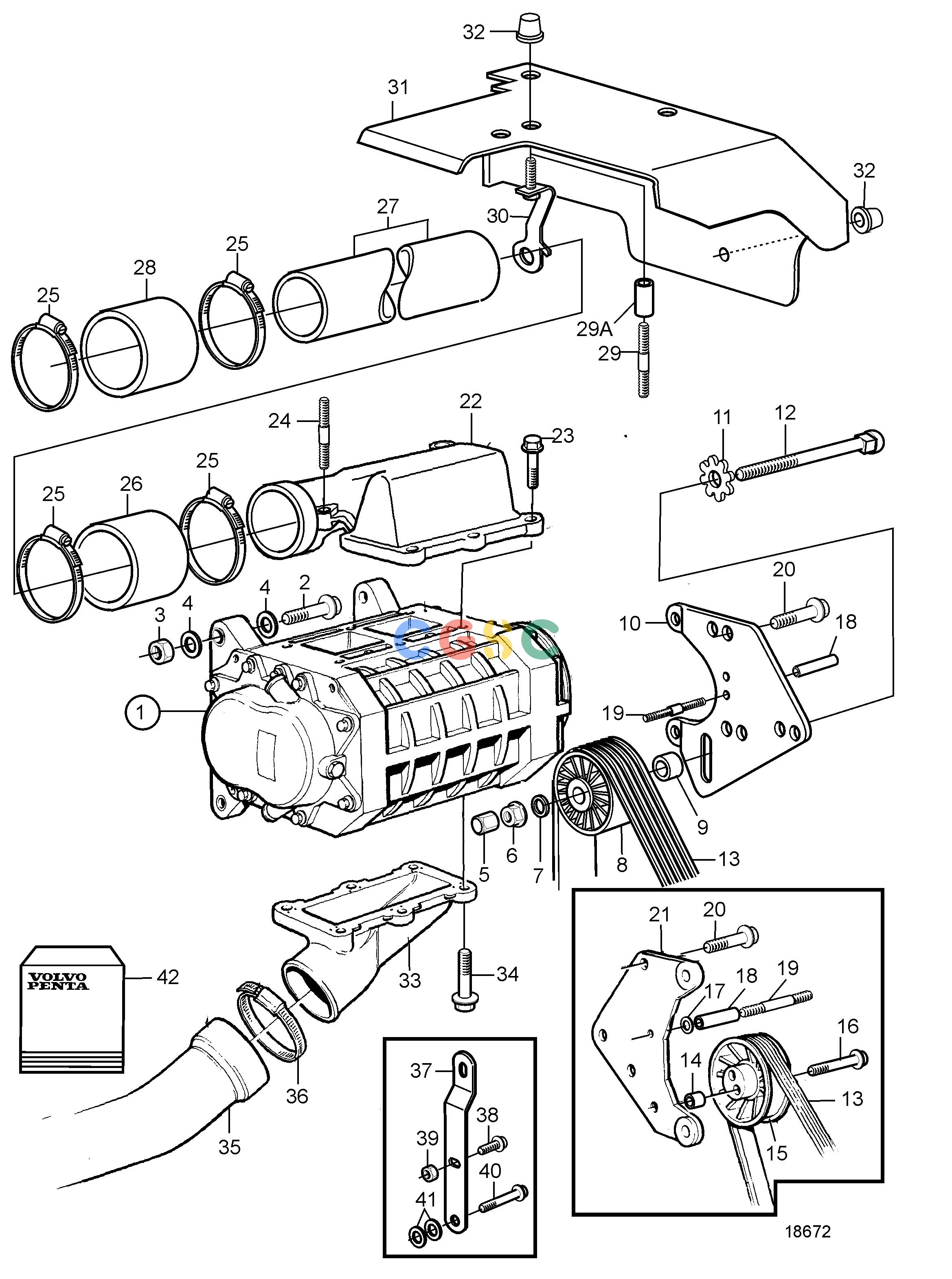

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EIntake and Exhaust SystemCompressor and Belt Protection: SN2203202198-EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
715 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
965186
|
[4] |
Flange screw
|
L=50mm
|
| 3. |
971098
|
[4] |
Flange lock nut
|
|
| 4. |
960142
|
[6] |
Washer
|
|
| 5. |
3582677
|
[1] |
Nut
|
Included in service kit.
|
| 6. |
971095
|
[1] |
Flange nut
|
Included in service kit.
|
| 7. |
976945
|
[1] |
Washer
|
Included in service kit.
|
| 8. |
3582324
|
[1] |
Tension pulley
|
Included in service kit.
|
| 9. |
3582190
|
[1] |
Spacer
|
Included in service kit.
|
| 10. |
3582166
|
[1] |
Bracket
|
Included in service kit.
|
| 11. |
3582168
|
[1] |
Gear
|
Included in service kit.
|
| 12. |
982331
|
[1] |
Square neck screw
|
Included in service kit.
|
| 13. |
3581460
|
[1] |
Drive belt
|
|
| 18. |
3582517
|
[1] |
Tube
|
|
| 19. |
968975
|
[1] |
Stud
|
|
| 20. |
946329
|
[3] |
Flange screw
|
|
| 22. |
3581452
|
[1] |
Connecting pipe
|
|
| 23. |
948356
|
[5] |
Flange screw
|
L=20mm
|
| 24. |
953031
|
[2] |
Stud
|
|
| 25. |
961674
|
[4] |
Hose clamp
|
|
| 26. |
3581453
|
[1] |
Hose
|
|
| 27. |
3581456
|
[1] |
Silencer
|
|
| 28. |
3581455
|
[1] |
Hose
|
|
| 30. |
3582492
|
[1] |
Bracket
|
Included in service kit.
|
| 31. |
3581461
|
[1] |
Belt protector
|
|
| 32. |
861019
|
[4] |
Lock plug
|
|
| 33. |
860400
|
[1] |
Connecting pipe
|
|
| 34. |
946934
|
[1] |
Flange screw
|
L=20mm
|
| 34. |
947542
|
[4] |
Flange screw
|
L=25mm
|
| 34. |
965212
|
[1] |
Flange screw
|
L=35mm
|
| 35. |
3581454
|
[1] |
Silencer
|
|
| 36. |
872531
|
[1] |
Hose clamp
|
|
| 37. |
3581464
|
[1] |
Bracket
|
|
| 38. |
945444
|
[1] |
Flange screw
|
|
| 39. |
945408
|
[1] |
Flange nut
|
|
| 40. |
965183
|
[1] |
Flange screw
|
|
| 41. |
191172
|
[2] |
Washer
|
|
| 42. |
877180
|
[1] |
Service kit
|
|
