沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EIntake and Exhaust SystemCrankhouse Ventilation and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
590 次

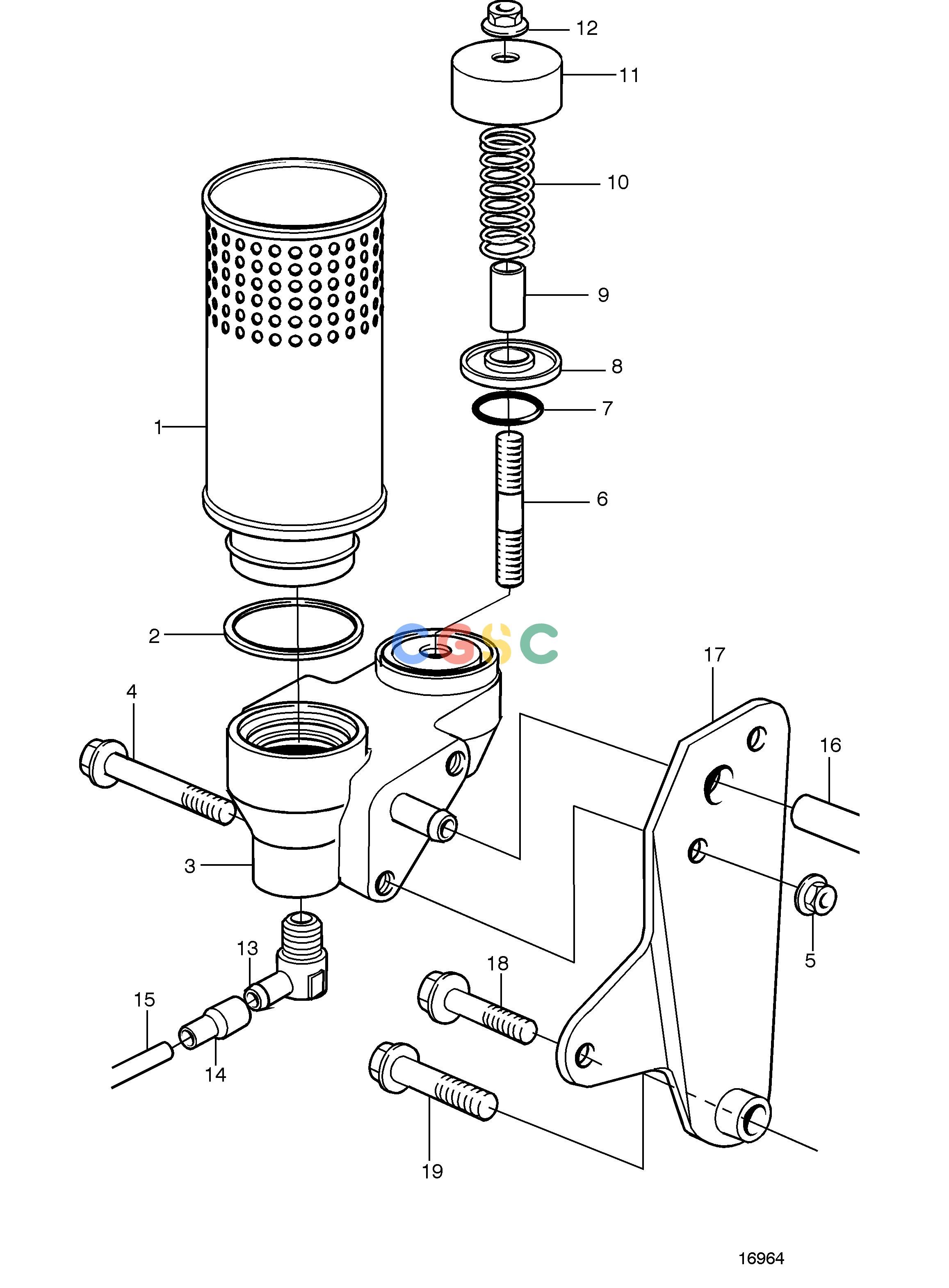

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
876069
|
[1] |
Filter
|
|
| 2. |
843449
|
[1] |
Gasket
|
|
| 3. |
3581697
|
[1] |
Connector housing
|
|
| 4. |
965182
|
[2] |
Flange screw
|
|
| 5. |
945408
|
[2] |
Flange nut
|
|
| 6. |
924058
|
[1] |
Stud
|
|
| 7. |
421158
|
[1] |
Sealing ring
|
|
| 8. |
842972
|
[1] |
Valve disc
|
|
| 9. |
842974
|
[1] |
Spacer sleeve
|
|
| 10. |
843905
|
[1] |
Spring
|
|
| 11. |
842975
|
[1] |
Protecting casing
|
|
| 12. |
949278
|
[1] |
Flange lock nut
|
|
| 13. |
961607
|
[1] |
Hose nipple
|
|
| 14. |
843533
|
[1] |
Rubber hose
|
|
| 15. |
3581631
|
[1] |
Exhaust pipe
|
|
| 16. |
3581473
|
[1] |
Hose
|
|
| 17. |
3581695
|
[1] |
Bracket
|
|
| 18. |
965185
|
[1] |
Flange screw
|
|
| 19. |
965186
|
[1] |
Flange screw
|
|
