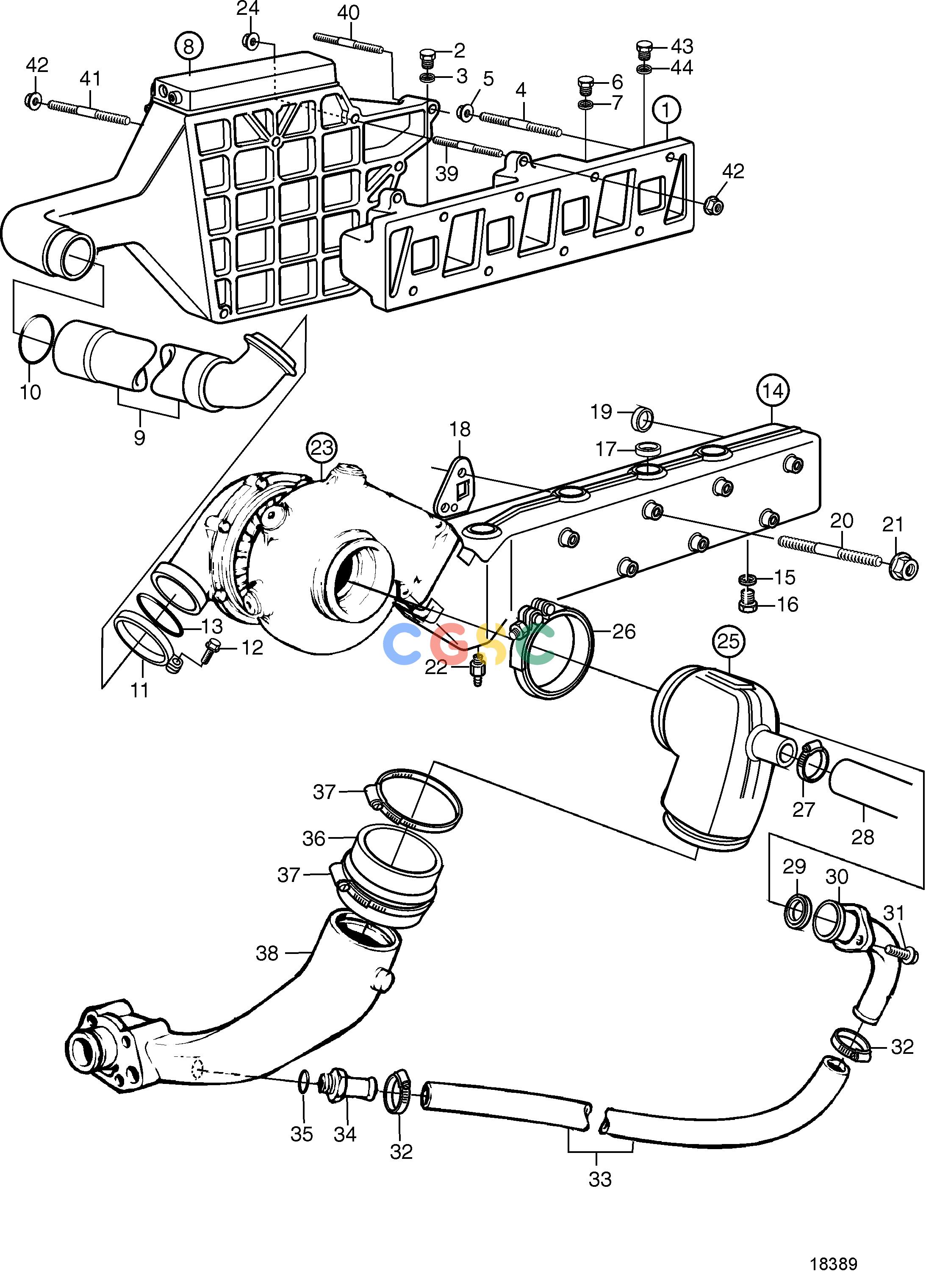

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EIntake and Exhaust SystemInduction and Exhaust ManifoldEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
484 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859299
|
[1] |
Inlet pipe
|
|
| 2. |
960634
|
[4] |
Plug
|
|
| 3. |
947627
|
[4] |
Gasket
|
|
| 4. |
980226
|
[6] |
Stud
|
|
| 5. |
945408
|
[6] |
Flange nut
|
|
| 6. |
960632
|
[1] |
Plug
|
M18
|
| 7. |
11998
|
[1] |
Gasket
|
|
| 8. |
|
|
|
|
| 9. |
838693
|
[1] |
Connecting pipe
|
|
| 10. |
864723
|
[1] |
Sealing ring
|
|
| 11. |
838864
|
[1] |
V-clamp
|
|
| 12. |
947542
|
[1] |
Flange screw
|
|
| 13. |
967944
|
[1] |
O-ring
|
|
| 14. |
876953
|
[1] |
Exhaust pipe
|
Replaced by 3581549
|
| 14. |
3581549
|
[1] |
Exhaust pipe
|
|
| 15. |
957181
|
[1] |
Gasket
|
|
| 16. |
960632
|
[1] |
Plug
|
|
| 17. |
946780
|
[7] |
Cap plug
|
|
| 18. |
876144
|
[2] |
Gasket kit
|
|
| 19. |
838766
|
[1] |
Sealing ring
|
|
| 20. |
952999
|
[1] |
Stud
|
L=110mm
|
| 20. |
953001
|
[5] |
Stud
|
L=120mm
|
| 20. |
953005
|
[1] |
Stud
|
L=140mm
|
| 20. |
17378
|
[1] |
Stud
|
L=170mm
|
| 21. |
971095
|
[8] |
Flange nut
|
|
| 22. |
949918
|
[1] |
Shut-off cock
|
|
| 23. |
|
|
|
|
| 24. |
945408
|
[1] |
Flange nut
|
|
| 25. |
861289
|
[1] |
Exhaust pipe elbow
|
|
| 26. |
842993
|
[1] |
V-clamp
|
|
| 27. |
994562
|
[1] |
Hose clamp
|
|
| 28. |
3581474
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow.
|
| 29. |
842913
|
[1] |
Sealing ring
|
|
| 30. |
844258
|
[1] |
Coolant pipe
|
|
| 31. |
946544
|
[2] |
Flange screw
|
|
| 32. |
961669
|
[2] |
Hose clamp
|
|
| 33. |
944386
|
[1] |
Rubber hose
|
L=720mm
|
| 34. |
873221
|
[1] |
Nipple
|
|
| 35. |
958228
|
[1] |
O-ring
|
|
| 36. |
860396
|
[1] |
Exhaust hose
|
|
| 37. |
982694
|
[4] |
Hose clamp
|
(981239)
|
| 38. |
7738870_163
|
|
Exhaust pipe
|
|
| 39. |
953049
|
[2] |
Stud
|
L=50mm
|
| 40. |
980227
|
[1] |
Stud
|
L=110mm
|
| 41. |
942283
|
[1] |
Stud
|
L=190mm
|
| 42. |
945408
|
[6] |
Flange nut
|
|
| 43. |
861646
|
[1] |
Plug
|
|
| 44. |
947627
|
[1] |
Gasket
|
|
