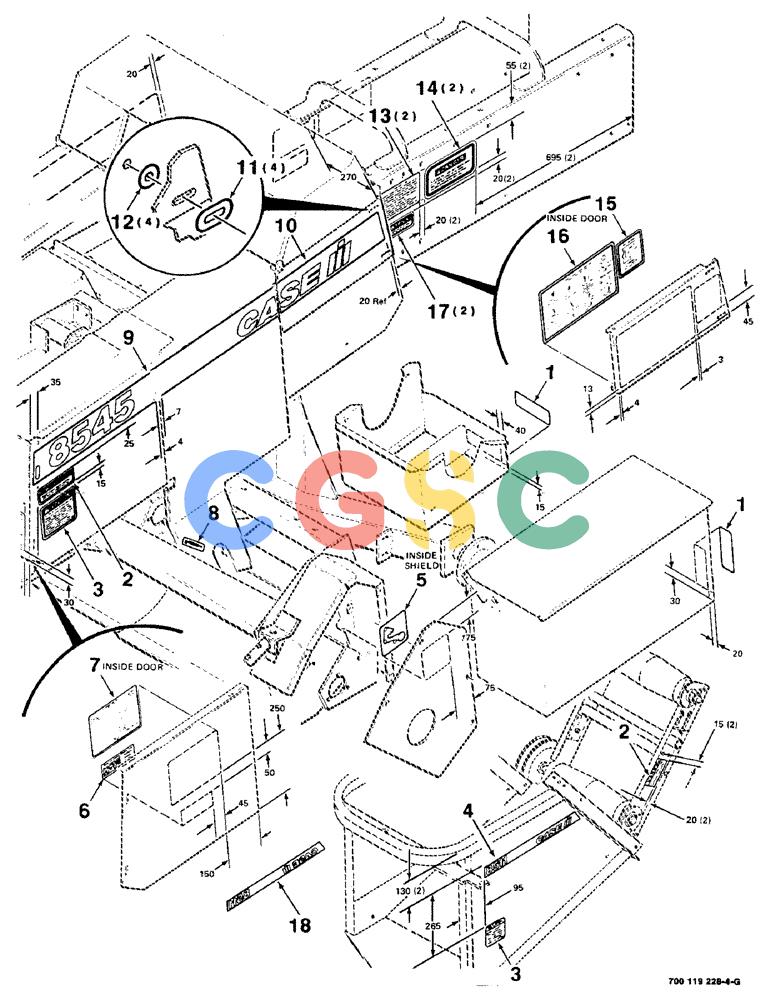

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (9-08) - DECALS AND LOCATION DIAGRAM - LEFT (S.N. CFH0044811 AND LATER) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
173 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
878660
|
[1] |
REFLECTOR
|
IH
- red
|
| 2. |
7778368
|
[2] |
DECAL
|
CAS
- warning, keep hands away
|
| 3. |
700714229
|
[2] |
DECAL
|
CAS
- warning
|
| 4. |
700714230
|
[1] |
DECAL
|
CAS
- combo, 8511CASE IH, L
|
| 5. |
700714104
|
[1] |
DECAL
|
CAS
- drive, left
|
| 6. |
700708731
|
[1] |
DECAL
|
CAS
- shearbolt
|
| 7. |
700706289
|
[1] |
DECAL
|
CAS
- operation, stuffer timing
|
| 8. |
7889306
|
[1] |
DECAL
|
CAS
- grease
|
| 9. |
700714332
|
[1] |
DECAL
|
CAS
- combo, front, left
|
| 10. |
700714334
|
[1] |
DECAL
|
CAS
- combo, rear, left
|
| 11. |
700709867
|
[4] |
DECAL
|
CAS
- slot, camloc
|
| 12. |
700709866
|
[4] |
WASHER
|
CAS
- washer, camloc
|
| 13. |
7889355
|
[2] |
DECAL
|
CAS
- operation (Wire Only)
|
| . . |
700703905
|
[2] |
DECAL
|
CAS
- operation (Twine Only)
|
| 14. |
700700036
|
[2] |
DECAL
|
CAS
- danger, serious injury
|
| 15. |
700704658
|
[1] |
DECAL
|
CAS
- needle timing
|
| 16. |
700703441
|
[1] |
DECAL
|
CAS
- operation, twine knot detail
|
| 17. |
700706207
|
[2] |
DECAL
|
CAS
- warning, do not adjust
|
| 18. |
700714231
|
[1] |
DECAL
|
CAS
- combo, case IH8511, R
|
