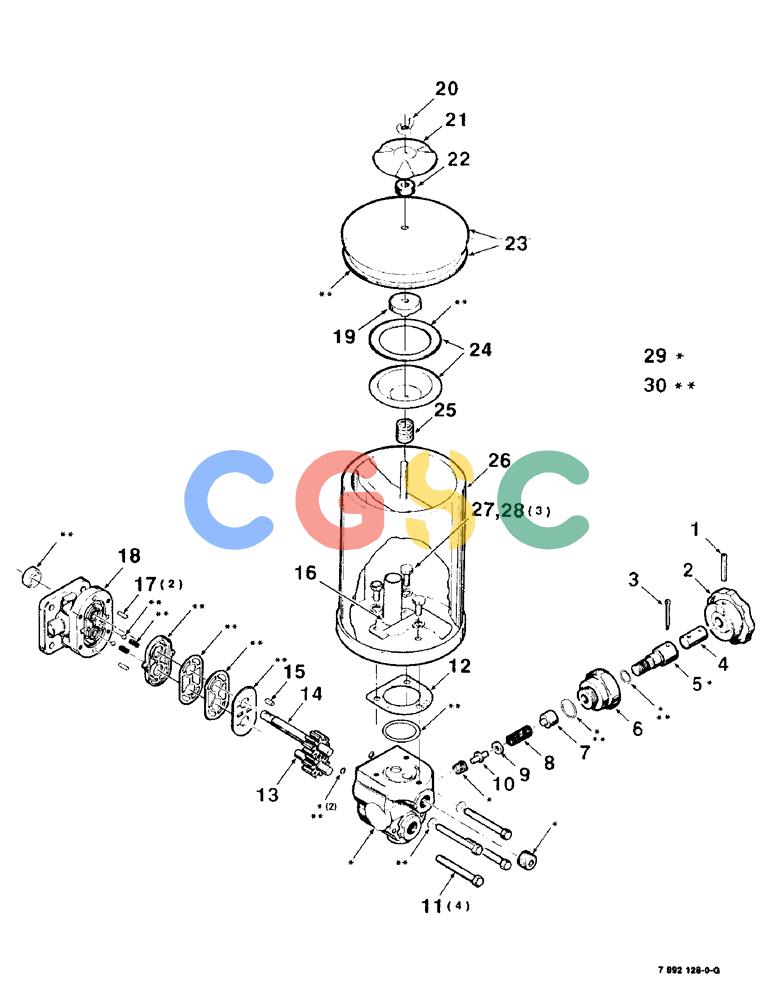

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (9-12) - BALE TENSIONER HYDRAULIC PUMP AND RESERVOIR ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
7892128
|
[1] |
VALVE
|
CAS
HYDRAULIC PUMP & RESERVIOR COMPLETE
|
| 1. |
19711R1
|
[1] |
PIN,3.17mm OD x 31.75mm L, Coiled
|
IH
|
| 2. |
8040552
|
[1] |
KNOB
|
CAS
|
| 3. |
432-820
|
[1] |
COTTER PIN,1/8" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 1/8" x 1-1/4" Superseded by part number: 87395, 87778232
|
| 4. |
8040545
|
[1] |
ROD
|
CAS
- connecting
|
| 5. |
8040560
|
[1] |
ADJUSTMENT SCREW
|
CAS
- adjusting
|
| 6. |
8040578
|
[1] |
PLUG
|
CAS
ASSEMBLY (Includes O-Ring)
|
| 7. |
8040503
|
[1] |
GUIDE
|
CAS
- spring
|
| 8. |
8040495
|
[1] |
SPRING
|
CAS
|
| 9. |
F12267
|
[1] |
WASHER
|
CAS
SHIM Superseded by part number: 64759
|
| 10. |
H83931
|
[1] |
VALVE POPPET
|
CAS
POPPET ASSEMBLY
|
| 11. |
166-11
|
[4] |
12 PT SCREW,Flg, 1/4" - 20 x 2 1/4", Gr 8
|
CAS
1/4-20 X 2-1/4 FLANGED 12 POINT SCREW
|
| 12. |
668399R1
|
[1] |
GASKET
|
CAS
- reservoir
|
| 13. |
668389R91
|
[1] |
GEAR
|
IH
- idler
|
| 14. |
668388R91
|
[1] |
GEAR
|
CAS
- drive
|
| 15. |
8040487
|
[1] |
KEY
|
CAS
|
| 16. |
668398R91
|
[1] |
FILTER
|
IH
ASSEMBLY
|
| 17. |
37-148
|
[2] |
DOWEL,1/4" x 1/2"
|
CAS
PIN
|
| 18. |
H646265
|
[1] |
LARGE PLATE
|
CAS
PLATE ASSEMBLY - front
|
| 19. |
668396R1
|
[1] |
CAP
|
CAS
- filter
|
| 20. |
129-409
|
[1] |
WING NUT,1/4"-20
|
CAS
NUT, WING, 1/4"-20 Superseded by part number: 86627130
|
| 21. |
668394R1
|
[1] |
CAP
|
CAS
- breather
|
| 22. |
668400R1
|
[1] |
FILTER
|
CAS
- air
|
| 23. |
668393R11
|
[1] |
COVER
|
CAS
LID AND GASKET - reservoir
|
| 24. |
668395R11
|
[1] |
FILTER
|
CAS
FILLER AND GASKET ASSEMBLY
|
| 25. |
823148C1
|
[1] |
SPRING
|
CAS
- compression
|
| 26. |
CAS2700072
|
[1] |
RESERVOIR, HYDRAULIC
|
CAS
RESERVIOR - hydraulic
|
| 27. |
166-23
|
[3] |
12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8
|
CAS
5/16-18 X 5/8 FLANGED 12 POINT SCREW
|
| 28. |
492-11031
|
[3] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 29. |
8040479
|
[1] |
LARGE PLATE
|
CAS
BACK PLATE REPAIR KIT Includes Items in art marked with asterisk
|
| 30. |
200420C91
|
[1] |
SEAL KIT
|
CAS
SEAL REPAIR KIT Includes Items in art marked with double asterisk
|
