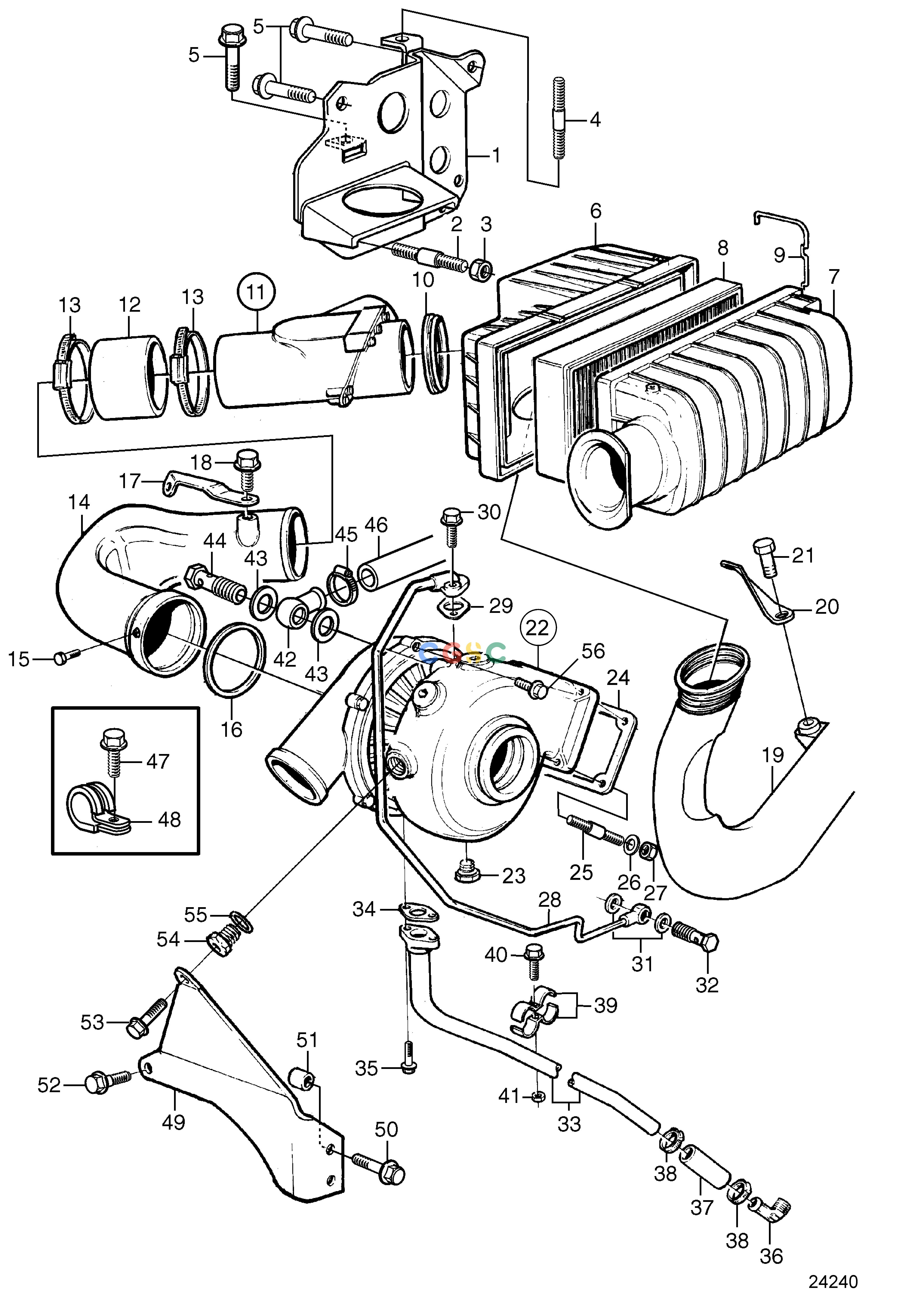

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EIntake and Exhaust SystemTurbocharger and Air FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
974 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581449
|
[1] |
Bracket
|
|
| 2. |
953001
|
[3] |
Stud
|
L=120mm
|
| 3. |
971095
|
[3] |
Flange nut
|
|
| 4. |
953031
|
[1] |
Stud
|
|
| 5. |
946544
|
[3] |
Flange screw
|
|
| 6. |
877416
|
[1] |
Air cleaner
|
|
| 7. |
860798
|
[1] |
Cap
|
|
| 8. |
876185
|
[1] |
Air filter insert
|
|
| 9. |
860799
|
[2] |
Clip
|
|
| 10. |
860504
|
[1] |
Sealing ring
|
|
| 11. |
3581019
|
[1] |
Non-return valve
|
|
| 12. |
861092
|
[1] |
Hose
|
|
| 13. |
872531
|
[2] |
Hose clamp
|
|
| 14. |
860401
|
[1] |
Pipe
|
|
| 15. |
941792
|
[2] |
Hex. socket screw
|
|
| 16. |
976044
|
[1] |
O-ring
|
|
| 17. |
860709
|
[1] |
Bracket
|
|
| 18. |
967949
|
[1] |
Flange screw
|
|
| 19. |
3581454
|
[1] |
Silencer
|
Air filter-Compressor.
|
| 20. |
3581606
|
[1] |
Stay
|
|
| 21. |
946025
|
[1] |
Flange screw
|
|
| 22. |
3581528
|
[1] |
Turbocharger
|
|
| 22. |
3802082
|
[1] |
Turbocharger
|
|
| 22. |
|
|
|
|
| 23. |
861551
|
[1] |
Plug
|
|
| 24. |
3582676
|
[1] |
Gasket kit
|
|
| 25. |
479972
|
[4] |
Stud
|
|
| 26. |
955895
|
[4] |
Washer
|
|
| 27. |
940183
|
[4] |
Hexagon nut
|
|
| 28. |
838868
|
[1] |
Oil pressure pipe
|
|
| 29. |
420641
|
[1] |
Plane gasket
|
|
| 30. |
945444
|
[1] |
Flange screw
|
L=25mm
|
| 30. |
946671
|
[1] |
Flange screw
|
L=30mm
|
| 31. |
969011
|
[2] |
Gasket
|
|
| 32. |
25167
|
[1] |
Hollow screw
|
|
| 33. |
838870
|
[1] |
Oil return pipe
|
|
| 34. |
860105
|
[1] |
Gasket
|
|
| 35. |
945444
|
[2] |
Flange screw
|
|
| 36. |
983105
|
[1] |
Hose nipple
|
(843879)
|
| 37. |
466328
|
[1] |
Hose
|
|
| 38. |
994559
|
[2] |
Hose clamp
|
|
| 39. |
820851
|
[2] |
Clamp
|
|
| 40. |
946544
|
[1] |
Flange screw
|
|
| 41. |
945407
|
[1] |
Flange nut
|
|
| 42. |
858750
|
[1] |
Banjo nipple
|
|
| 43. |
11994
|
[2] |
Gasket
|
|
| 44. |
969299
|
[1] |
Hollow screw
|
|
| 45. |
945652
|
[2] |
Hose clamp
|
|
| 46. |
942700
|
[1] |
Hose
|
Turbo-thermostat housing., L=760mm
|
| 47. |
967949
|
[1] |
Flange screw
|
Early type
|
| 48. |
952627
|
[1] |
Clamp
|
Early type
|
| 49. |
861643
|
[1] |
Bracket
|
|
| 50. |
965192
|
[2] |
Flange screw
|
|
| 51. |
861554
|
[2] |
Spacer
|
|
| 52. |
965182
|
[1] |
Flange screw
|
|
| 53. |
946471
|
[1] |
Flange screw
|
|
| 54. |
861646
|
[1] |
Plug
|
|
| 55. |
947627
|
[1] |
Gasket
|
|
| 56. |
946934
|
[5] |
Flange screw
|
|
