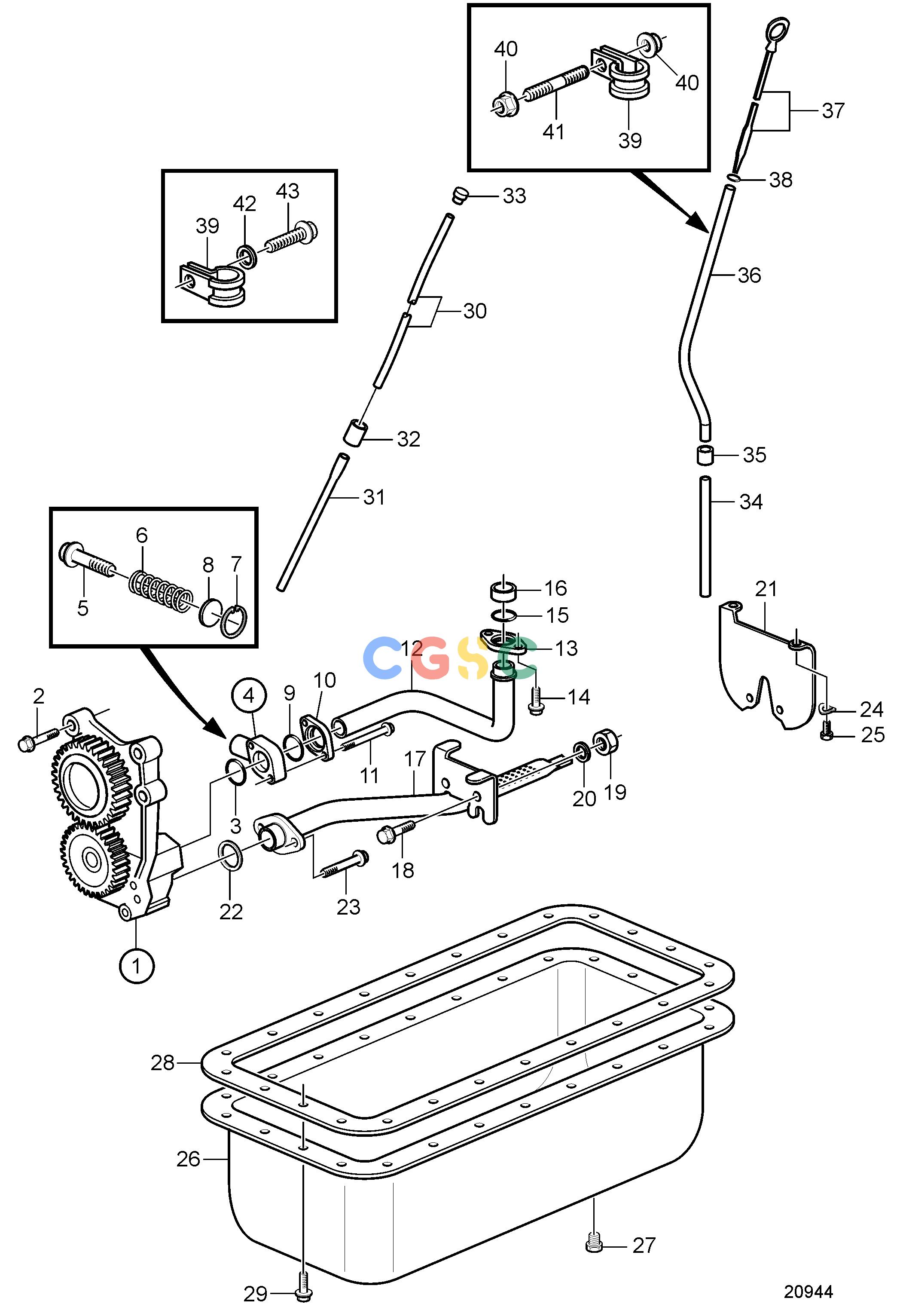

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ELubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
214 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860721
|
[1] |
Oil pump
|
|
| 1. |
|
|
|
|
| 2. |
948217
|
[4] |
Flange screw
|
|
| 3. |
469482
|
[1] |
Sealing ring
|
|
| 4. |
3581308
|
[1] |
Reducing valve
|
|
| 5. |
471115
|
[1] |
Reduction valve
|
|
| 6. |
1542257
|
[1] |
Spring
|
|
| 7. |
948343
|
[1] |
Disc
|
|
| 8. |
914506
|
[1] |
Snap ring
|
|
| 9. |
976039
|
[2] |
O-ring
|
|
| 10. |
3581206
|
[1] |
Flange
|
|
| 11. |
965183
|
[2] |
Flange screw
|
|
| 12. |
860821
|
[1] |
Delivery pipe
|
|
| 13. |
1542248
|
[1] |
Flange
|
|
| 14. |
946173
|
[2] |
Flange screw
|
|
| 15. |
976039
|
[1] |
O-ring
|
(980936)
|
| 16. |
471956
|
[1] |
Gasket
|
|
| 17. |
861321
|
[1] |
Suction pipe
|
|
| 18. |
946173
|
[2] |
Flange screw
|
|
| 19. |
948645
|
[2] |
Flange lock nut
|
|
| 20. |
976944
|
[2] |
Washer
|
|
| 21. |
859587
|
[1] |
Baffle plate
|
|
| 22. |
469483
|
[1] |
Sealing ring
|
|
| 23. |
965217
|
[2] |
Flange screw
|
|
| 24. |
942385
|
[2] |
Disc spring
|
|
| 25. |
946440
|
[2] |
Flange screw
|
|
| 26. |
3583865
|
[1] |
Sump
|
(861152)
|
| 27. |
943585
|
[1] |
Plug
|
|
| 28. |
861250
|
[1] |
Gasket
|
|
| 29. |
946440
|
[26] |
Flange screw
|
|
| 30. |
3581631
|
[1] |
Exhaust pipe
|
|
| 31. |
846007
|
[1] |
Tube
|
|
| 32. |
843533
|
[2] |
Rubber hose
|
|
| 33. |
943585
|
[1] |
Plug
|
|
| 34. |
3581715
|
[1] |
Tube
|
|
| 35. |
843533
|
[1] |
Rubber hose
|
|
| 36. |
861099
|
[1] |
Tube
|
|
| 37. |
861087
|
[1] |
Dipstick
|
|
| 38. |
960155
|
[1] |
O-ring
|
|
| 39. |
949746
|
[2] |
Clamp
|
(946834)
|
| 40. |
7738870_048
|
|
Nut
|
|
| 41. |
7738870_048
|
|
Stud
|
|
| 42. |
955893
|
[1] |
Washer
|
|
| 43. |
948746
|
[1] |
Flange screw
|
|
