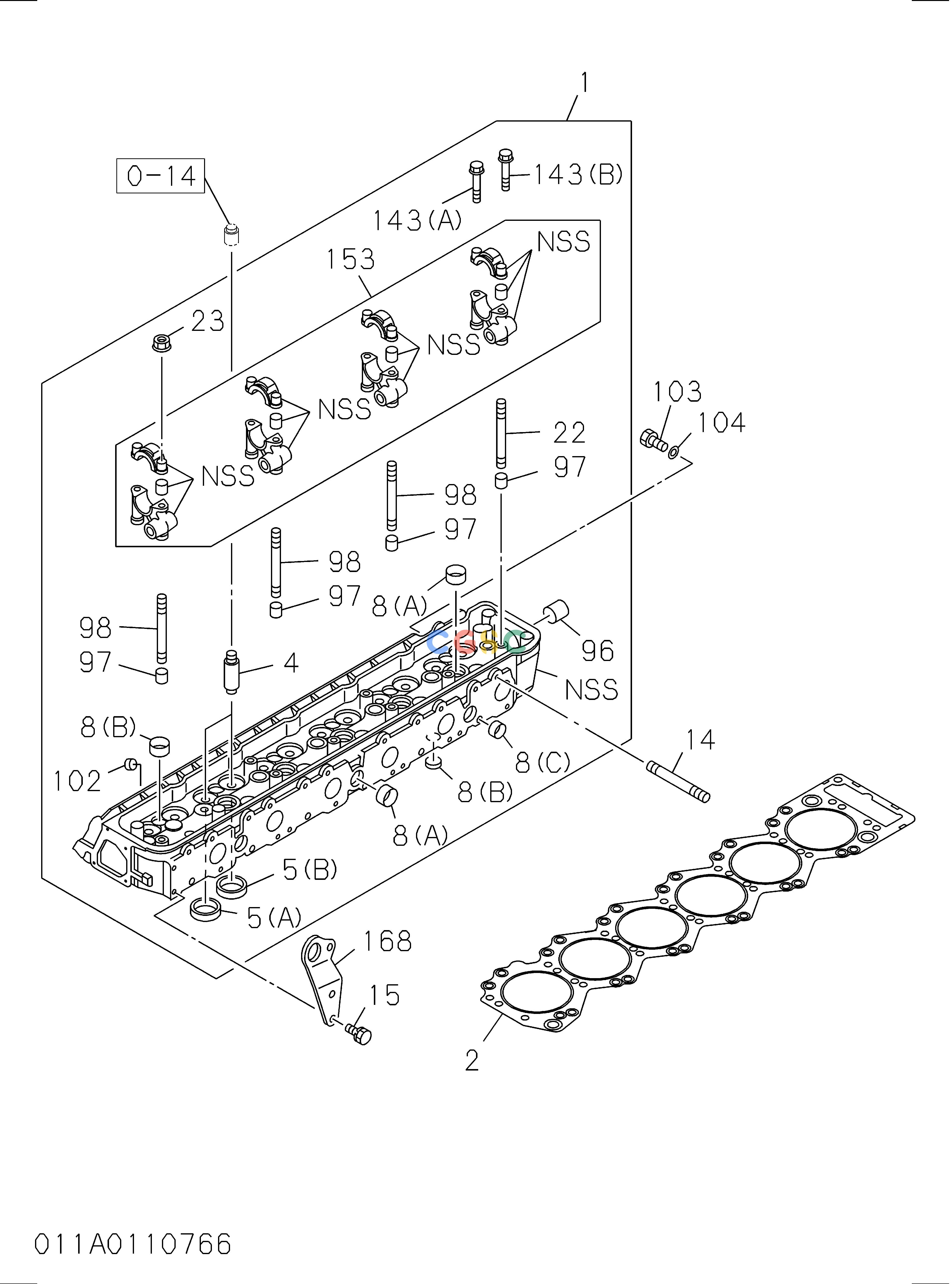

日立零件查询（CD2000）011: CYLINDER HEAD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
208 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1111108463 | [1] | HEAD ASM; CYL | |
| 002. | 1111412164 | [1] | GASKET; CYL HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 003(A). | 1090700431 | [20] | BOLT; CYL HD TO BLOCK | M14X125 FLANGE W/PL |
| 003(B). | 1090700441 | [6] | BOLT; CYL HD TO BLOCK | M14X67 FLANGE W/PL |
| 004. | 1117210080 | [12] | GUIDE; VLV | |
| 005(A). | 1117150770 | [6] | SEAT; VLV INSERT | C INLET |
| 005(A). | 1117150951 | [6] | SEAT; VLV INSERT | C INLET |
| 005(A). | 1117151220 | [6] | SEAT; VLV INSERT | INLET |
| 005(B). | 1117110510 | [6] | SEAT; VLV INSERT | C EXHAUST |
| 005(B). | 1117110601 | [6] | SEAT; VLV INSERT | C EXHAUST |
| 005(B). | 1117110510 | [6] | SEAT; VLV INSERT | EXHAUST |
| 008(A). | 1096000122 | [14] | CUP; SEALING,WATER JACKET | OD=32 |
| 008(A). | 1096000122 | [9] | CUP; SEALING,WATER JACKET | OD=32 |
| 008(A). | 8942416380 | [5] | CUP; SEALING,WATER JACKET | OD=30 |
| 008(B). | 1096000112 | [11] | CUP; SEALING,WATER JACKET | OD=22 |
| 008(C). | 1096000102 | [6] | CUP; SEALING,WATER JACKET | OD=12 |
| 009(A). | 9098301500 | [1] | STUD; INL MANIF | M8X161 |
| 009(B). | 9096300260 | [4] | STUD; INL MANIF | M8X86 L=99 |
| 010. | 8941353774 | [6] | PLUG; GLOW | C SILVER |
| 010. | 1825130443 | [6] | PLUG; GLOW | SILVER |
| 011. | 1197320111 | [1] | CONNECTOR; GLOW PLUG | |
| 012(B). | 1117770810 | [1] | HANGER; ENG,RR | |
| 014. | 1093021041 | [12] | STUD; EXH MANIF | M10X104 L=119 |
| 015. | 0287810200 | [2] | BOLT; HANGER,FRT | A M10X20 FLANGE |
| 015. | 0287510200 | [2] | BOLT; HANGER,FRT | M10X20 FLANGE |
| 022. | 1093000331 | [2] | STUD; CAM BRKT | M8X124 L=142 |
| 023. | 9098441900 | [8] | NUT; CAM BRKT | M8 FLANGE |
| 041. | 0500510200 | [3] | BOLT; ENG HANGER | A M10X20 W/LK WASHER |
| 041. | 0505510200 | [3] | BOLT; ENG HANGER | M10X20 W/LK WASHER |
| 056. | 1093000180 | [12] | STUD; NOZZLE HOLDER | M8X40 L=58 |
| 096. | 1125280070 | [1] | BUSHING; IDLE SHAFT | |
| 097. | 1112290121 | [8] | DOWEL; CAM BRKT SET | |
| 098. | 1093000281 | [6] | STUD; CAM BRKT | M8X114 L=132 |
| 102. | 1111190121 | [6] | SEAT; VLV | |
| 103. | 9992023140 | [1] | PLUG; HD | A M14X9 |
| 103. | 8980429440 | [1] | PLUG; HD | M14X9 |
| 104. | 9095714140 | [1] | GASKET; PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 120. | 1090700590 | [1] | BOLT; CYL HD TO HSG | M10X34 FLANGE W/PL |
| 120. | 1090700600 | [2] | BOLT; CYL HD TO HSG | M10X122 FLANGE W/PL |
| 121. | 1113211000 | [1] | COVER; IDLE GEAR,CYL HD | |
| 122. | 1096232080 | [1] | GASKET; COVER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 123. | 0501408200 | [2] | BOLT; COVER | A M8X20 W/LK&PL WASHER |
| 123. | 0506408200 | [2] | BOLT; COVER | M8X20 W/LK&PL WASHER |
| 138. | 1125232461 | [1] | GEAR; IDLE | |
| 139. | 1125310142 | [1] | SHAFT; IDLE GEAR | C |
| 139. | 1125310980 | [1] | SHAFT; IDLE GEAR | |
| 140. | 9080555220 | [1] | KEY; IDLE GEAR | |
| 143(A). | 0280908600 | [1] | BOLT; FIX | A M8X60 FLANGE |
| 143(A). | 0280608600 | [1] | BOLT; FIX | M8X60 FLANGE |
| 143(B). | 0280808000 | [1] | BOLT; FIX | A M8X100 FLANGE |
| 143(B). | 0280508000 | [1] | BOLT; FIX | M8X100 FLANGE |
| 153. | 1125161680 | | BRACKET KIT; CAM,CYL HD | A |
| 153. | 1125161800 | | BRACKET KIT; CAM,CYL HD | |
| 168. | 1117770960 | [1] | HANGER; ENG,FRT | |
