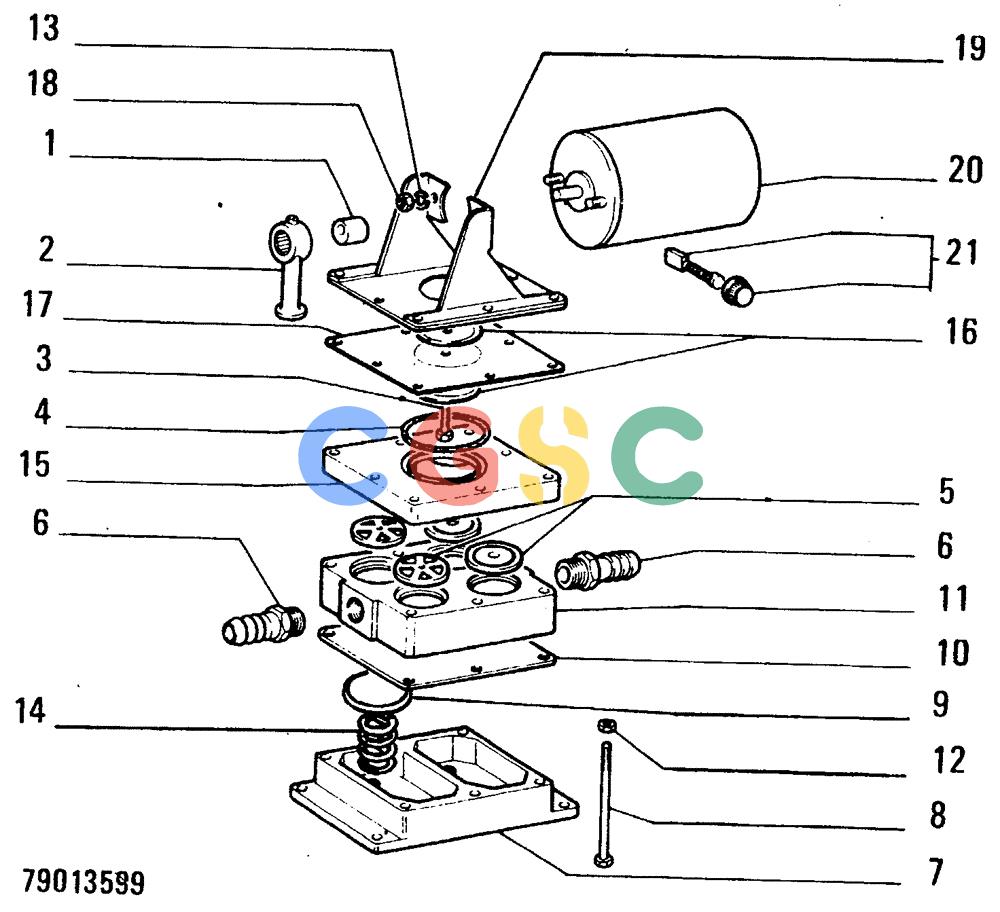

纽荷兰零件查询(FD14E) - CRAWLER DOZER (96.7680[002]) - FUEL TRANSFER PUMP-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
376 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71304372 | [1] | ECCENTRIC | TORCAM |
| 2. | 71304389 | [1] | LINK CONROD | TORLINK ROD |
| 3. | 10979440 | [1] | BOLT,Hex, M6 x 10mm, Brass, Full Thd | LECSCREW 6x1x10 Superseded by part number: 378056 |
| 4. | 71304375 | [1] | O-RING | TOR0-RING Superseded by part number: 172033 |
| 5. | 45482314 | [2] | HYDRAULIC VALVE | TORVALVE |
| 6. | 71304373 | [2] | HYD CONNECTOR | TORFITTING |
| 7. | 71304374 | [1] | BODY | TOR |
| 8. | 16038540 | [6] | BOLT,Hex, M6 x 100mm, Brass | LECSCREW 6x1x100 |
| 9. | 79094911 | [4] | PLATE | LEC |
| 10. | 71304377 | [1] | MEMBRANE | TORDIAPHRAGM |
| 11. | 71304378 | [1] | BODY | TOR |
| 12. | 10725940 | [6] | NUT,Thin, M6 x 1, Brass | LEC6x1x4 |
| 13. | 10516470 | [2] | LOCK WASHER | MODLOCKWASHER 6,1x1,8 Superseded by part number: 17798174 |
| 14. | 79094912 | [4] | SPRING | LEC |
| 15. | 71304379 | [1] | BODY | TOR |
| 16. | 71304380 | [2] | DISC | TOR |
| 17. | 71304381 | [1] | MEMBRANE | TORDIAPHRAGM |
| 18. | 10725911 | [2] | THIN NUT,Thin, M6 x 1, Cl 04 | MKT6x1x4 Superseded by part number: |
| 19. | 71304385 | [1] | SUPPORT | TOR |
| 20. | 71304388 | [1] | SMALL ELECTRIC MOTOR | TORELECTRIC MOTOR |
| 21. | 79064661 | [1] | KIT | LECBRUSH - ASSEMBLY |
