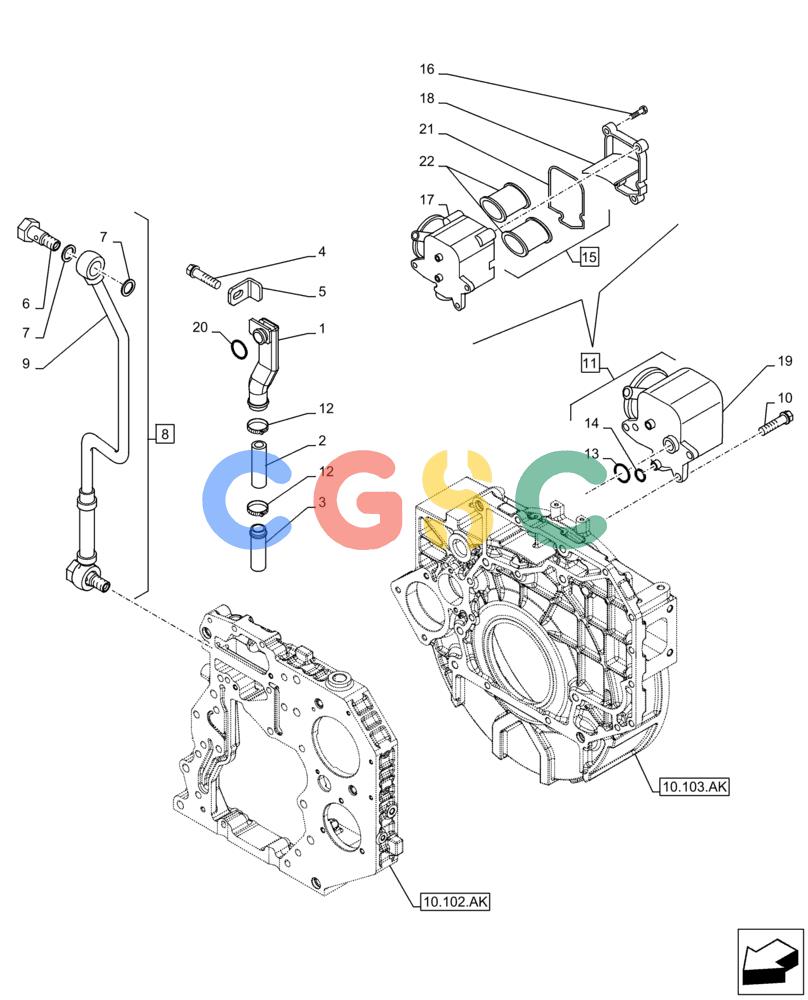

神钢零件查询(F4HFE613A B004) - ENGINE 5801862189 - 47587179 TIER 4B (7/15-) (10.304.AP) - ENGINE, BREATHER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
135 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4897534 | [1] | TUBE | TOR |
| 2. | 4897546 | [1] | RUBBER SLEEVE | TOR Superseded by part number: 2854521 |
| 3. | 4897547 | [1] | TUBE | TOR |
| 4. | 4897537 | [1] | SCREW | TORM6 x 1 x 10 |
| 5. | 4897536 | [1] | BRACKET | TOR |
| 6. | 2852772 | [2] | BANJO BOLT | TORM12 x 1.5 Superseded by part number: |
| 7. | 4899926 | [4] | SEALING WASHER,11.8mm ID x 18.0mm OD x 1.5mm Thk | TORID 11.8 |
| 8. | 4899219 | [1] | TUBE | TORASSY, Incl 6, 7, 9 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONPipe, Incl in 4 |
| 10. | 4899092 | [3] | SCREW,Hex Flg, M6 x 1 x 25 | TOR |
| 11. | 4892871 | [1] | BREATHER | TORASSY, Incl 15 - 18 |
| 12. | 4893234 | [2] | HOSE CLAMP | TORFrom 25.2mm to 29 mm |
| 13. | 4898372 | [1] | O-RING,13.11mm ID x 2.62mm Width | TOR |
| 14. | 2830304 | [1] | O-RING | TOR |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONIncl in 11 |
| 16. | NSS | [6] | NOT SOLD SEPARAT | CONIncl in 11 |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONBreather, Incl in 11 |
| 18. | NSS | [1] | NOT SOLD SEPARAT | CONCover, incl in 11 |
| 19. | NSS | [1] | NOT SOLD SEPARAT | CONIncl in 11 |
| 20. | 4898439 | [1] | O-RING,20.29mm ID x 2.62mm Width | TOR Superseded by part number: 17282081 |
| 21. | NSS | [1] | NOT SOLD SEPARAT | CONGasket, Incl in 11 |
| 22. | NSS | [1] | NOT SOLD SEPARAT | CONFilter, Incl in 11 |
