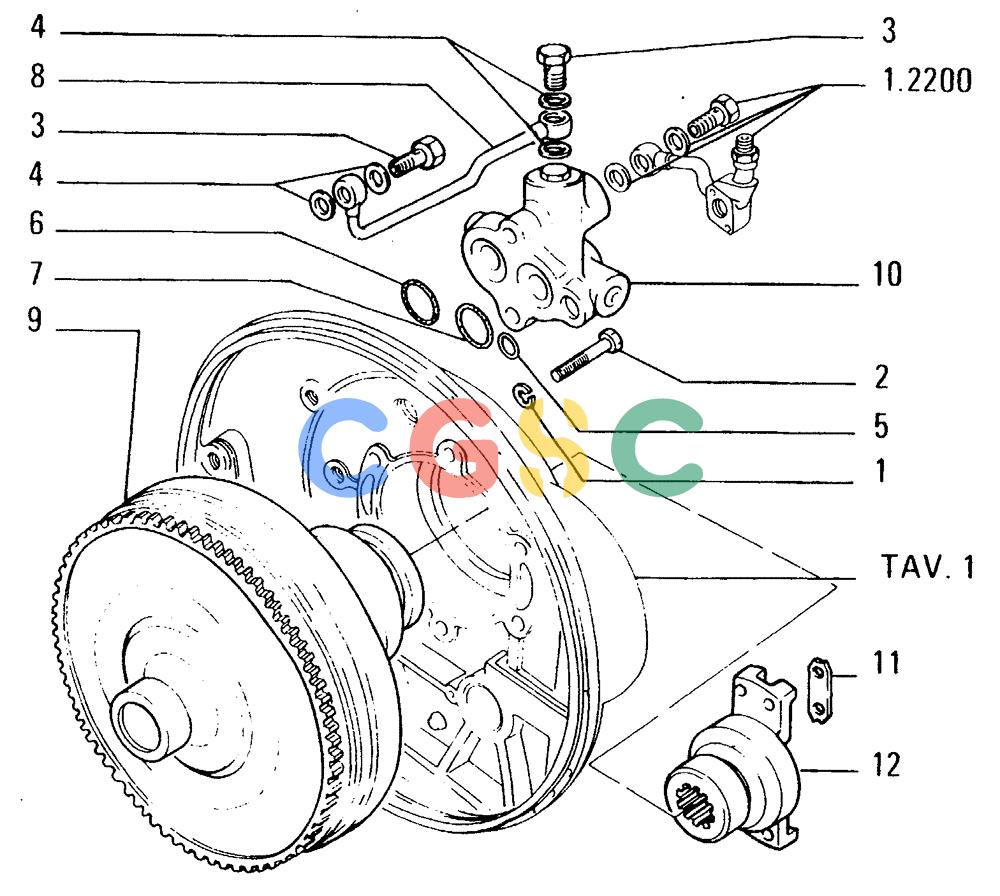

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2000[002]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
251 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 12645031 | [2] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 2. | 1 1 288034 | [2] | SCREW | |
| 3. | 11903717 | [2] | HYD CONNECTOR,M8 x 1.25 x 16mm | BASFITTING 8x1,25x16 Superseded by part number: 11903714 |
| 4. | 1 4330260 | [4] | GASKET 8,2x12 | |
| 5. | 14453081 | [1] | O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro | LEC-013, Cl 7, .426" ID x .070" Thk |
| 6. | 14463281 | [1] | O-RING,0.984" ID x 0.139" Width | TTF-214, Cl 7, .984" ID x .139" Thk |
| 7. | 14463781 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro | LEC-219, Cl 7, 1.296" ID x .139" Thk (M32.92 ID x 3.53 Thk) |
| 8. | 79043955 | [1] | RIGID TUBE | LECTUBE |
| 9. | 79054093 | [1] | TORQUE CONVERTER | LEC- ASSEMBLY SEE TAV.7 Superseded by part number: 76038816 |
| 10. | 79086161 | [1] | HYDRAULIC VALVE | LECVALVE - ASSEMBLY SEE TAV.8 Superseded by part number: 79101853 |
| 10. | 79101853 | [1] | HYDRAULIC VALVE | LECVALVE - ASSEMBLY SEE TAV.8 |
| 11. | 592915 | [1] | CONTROL PANEL | LEC |
| 12. | 79010476 | [1] | YOKE | LEC |
