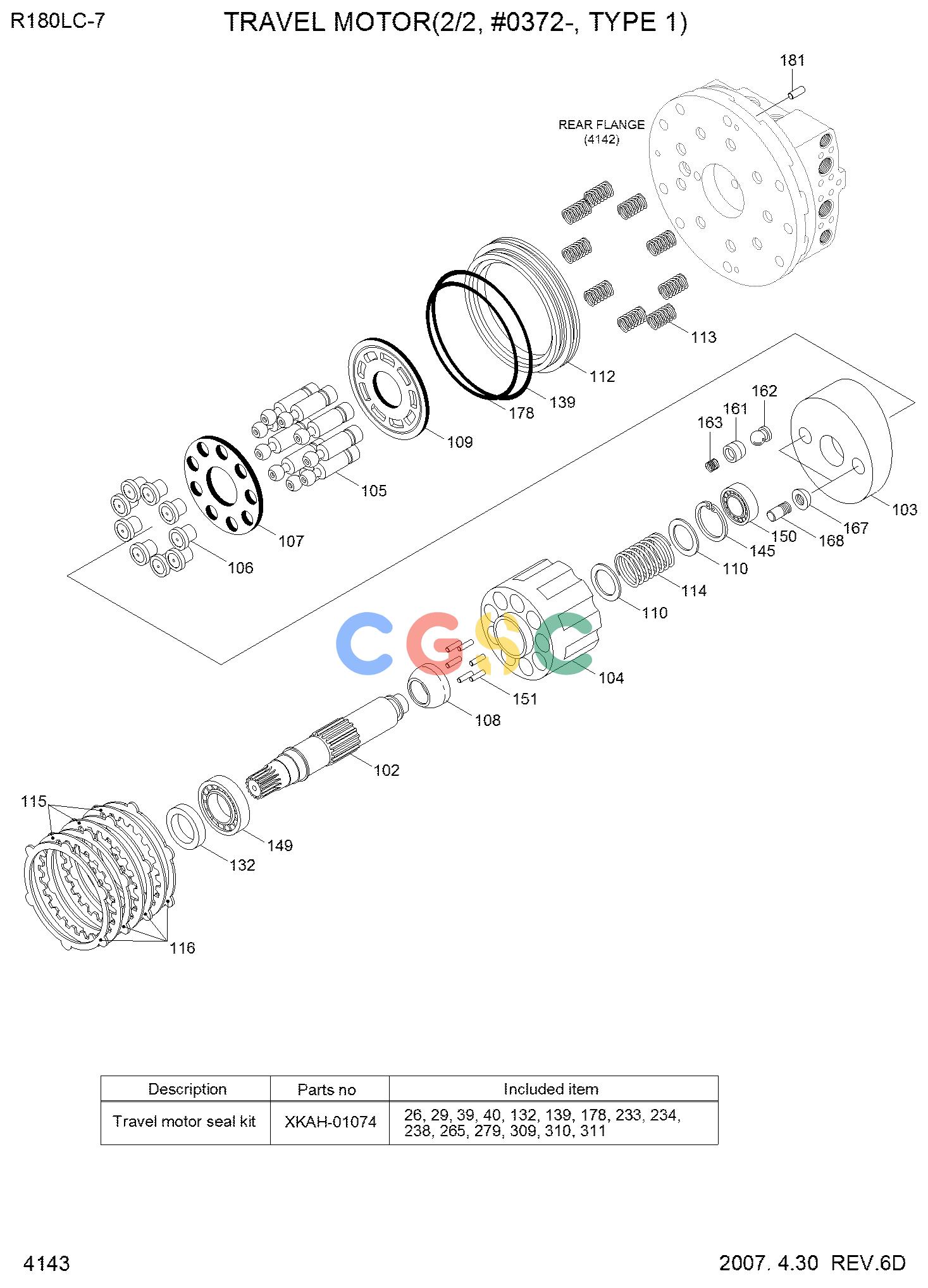

现代零件查询R180LC-7 TRAVEL MOTOR(2/2, #0372-, TYPE 1)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
294 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRAVEL MOTOR ASSY
|
|
| N -1. |
XKAH-00870
|
[1] |
TRAVEL ROTARY ASSY
|
|
| -5. |
XKAH-00891
|
[1] |
C/BLOCK & PISTON KIT
|
|
| 104. |
XKAH-00892
|
[1] |
BLOCK-CYL
|
|
| 110. |
XKAH-00407
|
[2] |
WASHER
|
|
| 114. |
XKAH-00406
|
[1] |
SPRING
|
|
| 145. |
XKAH-00405
|
[1] |
RING-SNAP
|
|
| -51. |
XKAH-00893
|
[1] |
PISTON ASSY
|
|
| N105. |
XKAH-00894
|
[9] |
PISTON
|
|
| N106. |
XKAH-00419
|
[9] |
SHOE
|
|
| 151. |
XKAH-00404
|
[6] |
ROLLER
|
|
| 107. |
XKAH-00403
|
[1] |
PLATE-RETAINER
|
|
| 108. |
XKAH-00402
|
[1] |
BALL-THRUST
|
|
| -52. |
XKAH-00895
|
[1] |
PISTON ASSY
|
|
| N161. |
XKAH-00422
|
[1] |
PISTON
|
|
| N162. |
XKAH-00421
|
[1] |
SHOE
|
|
| 163. |
XKAH-00094
|
[1] |
SPRING
|
|
| 102. |
XKAH-00410
|
[1] |
SHAFT-MAIN
|
|
| 103. |
XKAH-00896
|
[1] |
PLATE-SWASH
|
|
| 109. |
XKAH-00897
|
[1] |
PLATE-TIMING
|
|
| 115. |
XKAH-00399
|
[3] |
PLATE-FRICTION
|
|
| 116. |
XKAH-00401
|
[4] |
PLATE-MATING
|
|
| 112. |
XKAH-00898
|
[1] |
PISTON-PARKING
|
|
| 113. |
XKAH-00397
|
[9] |
SPRING
|
|
| 132. |
XKAH-00388
|
[1] |
OIL SEAL
|
|
| 149. |
XKAH-00899
|
[1] |
SLEEVE ASSY
|
|
| 150. |
XKAH-00900
|
[1] |
BEARING-BALL
|
|
| 139. |
XKAH-00396
|
[1] |
O-RING
|
|
| 178. |
XKAH-00395
|
[1] |
O-RING
|
|
| 181. |
XKAH-00377
|
[2] |
PIN-PARALLEL
|
|
| 167. |
XKAH-00095
|
[2] |
PIVOT
|
|
| 168. |
XKAH-00034
|
[2] |
PIN-PARALLEL
|
|
| K. |
XKAH-01074
|
[1] |
SEAL KIT
|
|
| N. |
@
|
[AR] |
NOT INDIVIDUALLY SUPPLIED
|
|
