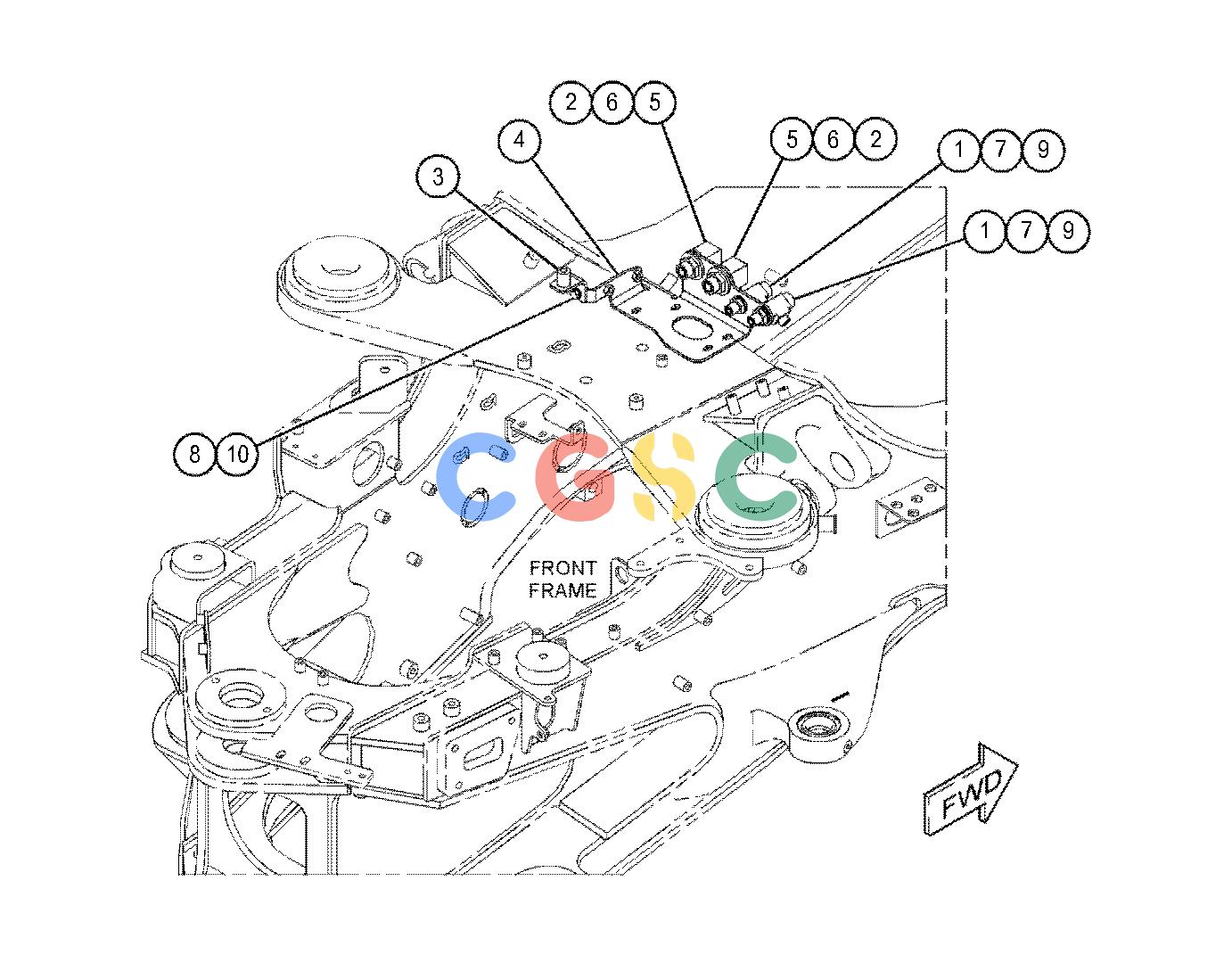

卡特零件查询（725C2） 494-1928: FITTING GP-HYDRAULIC
广数供应链运营团队, 15 02月, 2025，浏览：
670 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 164-5580 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9489 | [1] | TEE-BULKHEAD | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 2. | 453-1667 | [4] | SPACER(31.5X56X5-MM THK) | |
| 3. | 444-6981 | [1] | BRACKET AS | |
| | 8Y-4499M | [1] | BOSS(M12X1.75X30-MM) | |
| 4. | 444-6987 | [1] | BRACKET AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 8Y-3795M | [1] | BOSS(M10X1.5X39-MM) | |
| 5. | 148-8376 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8983 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 6. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 7. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 8. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 10. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| | M | | METRIC PART |
