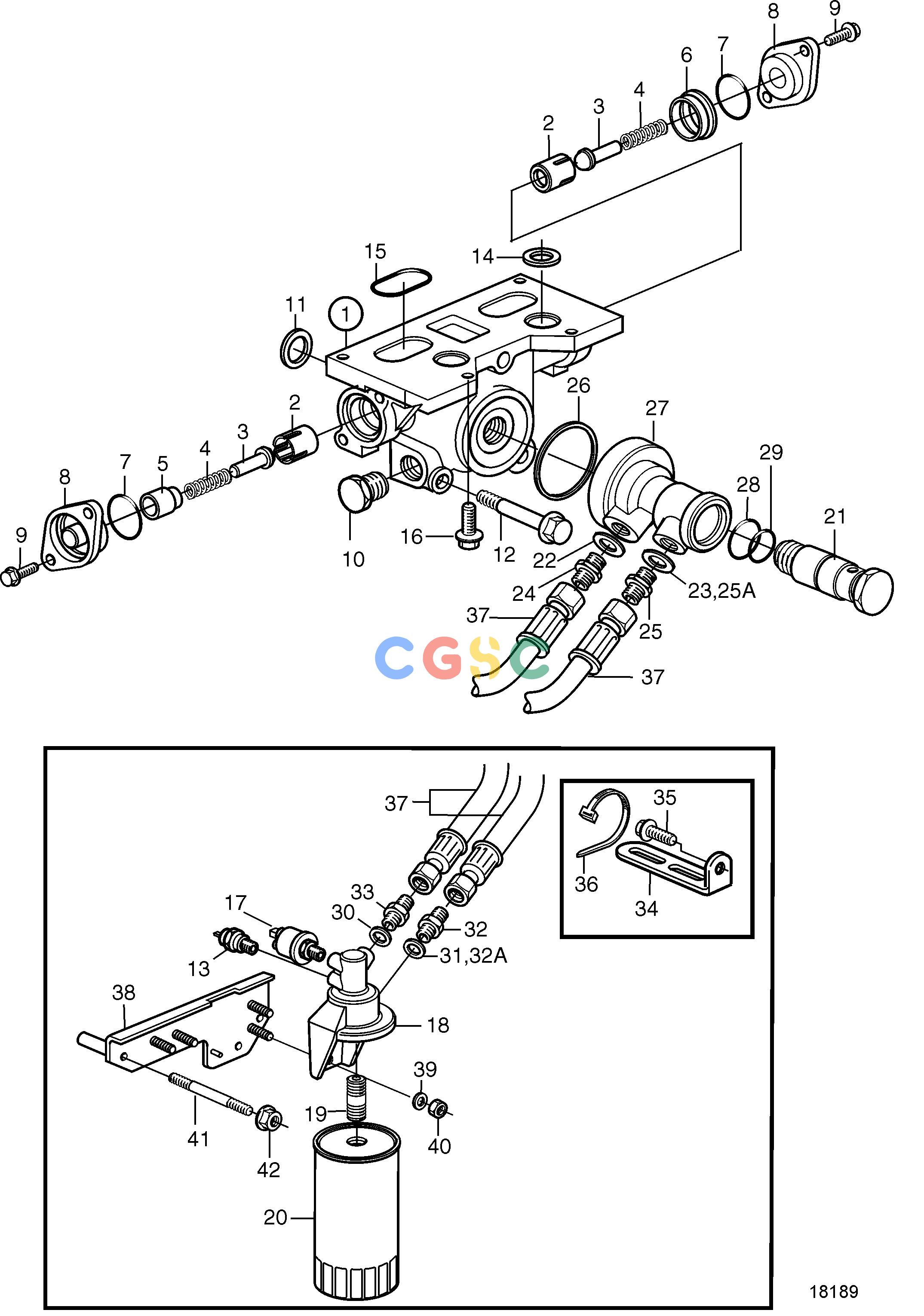

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ELubricating SystemOil Filter: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581943
|
[1] |
Oil filter housing
|
(860608)
|
| 2. |
1542265
|
[2] |
Valve seat
|
|
| 3. |
471085
|
[2] |
Valve cone
|
|
| 4. |
468087
|
[2] |
Spring
|
|
| 5. |
3581951
|
[1] |
Sleeve
|
|
| 6. |
3581950
|
[1] |
Sleeve
|
|
| 7. |
949659
|
[2] |
O-ring
|
|
| 8. |
1542267
|
[2] |
Cover
|
|
| 9. |
946544
|
[4] |
Flange screw
|
|
| 10. |
479977
|
[1] |
Plug
|
|
| 11. |
469483
|
[4] |
Sealing ring
|
|
| 12. |
965182
|
[3] |
Flange screw
|
|
| 13. |
7738870_134
|
|
Pressure switch
|
|
| 13. |
|
|
|
KAMD43P-A, KAD43P-A
|
| 14. |
469483
|
[2] |
Sealing ring
|
|
| 15. |
859086
|
[2] |
Sealing ring
|
|
| 16. |
946671
|
[4] |
Flange screw
|
|
| 17. |
7738870_134
|
|
Oil pressure sensor
|
|
| 17. |
|
|
|
KAMD43P-A, KAD43P-A
|
| 18. |
860530
|
[1] |
Filter housing
|
|
| 19. |
423067
|
[1] |
Nipple
|
|
| 20. |
4785974
|
[1] |
Oil filter
|
|
| 20. |
471034
|
[1] |
Oil filter
|
TAMD42WJ-A
|
| 21. |
860482
|
[1] |
Screw
|
|
| 22. |
947627
|
[1] |
Gasket
|
|
| 23. |
947627
|
[1] |
Gasket
|
Early type
|
| 24. |
947554
|
[1] |
Nipple
|
|
| 25. |
|
|
|
Early type
|
| 25. |
3582505
|
[1] |
Nipple
|
Late type
|
| 25A. |
982416
|
[1] |
Gasket
|
Late type
|
| 26. |
967343
|
[1] |
O-ring
|
|
| 27. |
860483
|
[1] |
Adapter
|
|
| 28. |
949659
|
[1] |
O-ring
|
|
| 29. |
949721
|
[1] |
O-ring
|
|
| 30. |
947627
|
[1] |
Gasket
|
|
| 31. |
947627
|
[1] |
Gasket
|
Early type
|
| 32. |
|
|
|
Early type
|
| 32. |
3582505
|
[1] |
Nipple
|
Late type
|
| 32A. |
982416
|
[1] |
Gasket
|
Late type
|
| 33. |
947554
|
[1] |
Nipple
|
|
| 34. |
965558
|
[1] |
Bracket
|
|
| 35. |
946440
|
[1] |
Flange screw
|
|
| 36. |
948211
|
[1] |
Cable tie
|
|
| 36. |
948616
|
[1] |
Cable tie
|
|
| 37. |
860527
|
[2] |
Oil hose
|
|
| 38. |
861550
|
[1] |
Bracket
|
|
| 39. |
941907
|
[2] |
Spring washer
|
|
| 40. |
945408
|
[2] |
Flange nut
|
|
| 41. |
7738870_049
|
|
Stud
|
|
| 42. |
7738870_049
|
|
Nut
|
|
