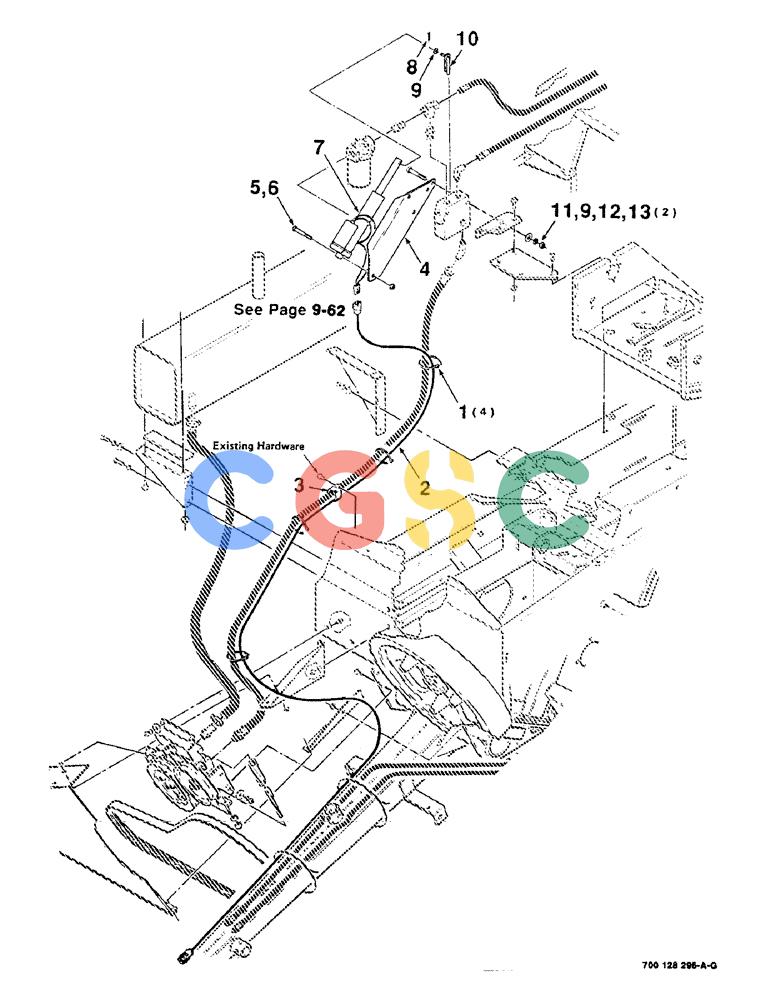

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (9-58) - BALE THROWER ELECTRICAL SPEED CONTROL ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
L18337
|
[4] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 2. |
700711380
|
[1] |
HARNESS
|
CAS
- wire
|
| 3. |
515-23238
|
[1] |
CLAMP,15/16", Insul, 3/8" Bolt
|
CAS
Hose 15/16", Insul, 3/8" Bolt Superseded by part number: 87029955
|
| 4. |
700124210
|
[1] |
BRACKET
|
CAS
|
| 5. |
413-432
|
[1] |
BOLT,Hex, 1/4" - 20 x 2", Gr 5
|
IH
Superseded by part number: 72187193, 87404
|
| 6. |
1703354
|
[1] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 7. |
700711219
|
[1] |
ACTUATOR
|
CAS
- linear
|
| 8. |
432-48
|
[1] |
COTTER PIN,1/16" x 1/2"
|
CAS
PIN, SPLIT (COTTER), 1/16" x 1/2" Superseded by part number: 280236, 72187234
|
| 9. |
496-11028
|
[3] |
WASHER,9/32" x 5/8" x .065, HDN
|
CAS
1/4 HARDENED PLAIN WASHER Superseded by part number: 86632587
|
| 10. |
700124207
|
[1] |
ARM
|
CAS
ASSEMBLY
|
| 11. |
113-12
|
[2] |
BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5
|
CAS
1/4-20 X 2-1/2 C Superseded by part number: 87845
|
| 12. |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 13. |
425-104
|
[2] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
