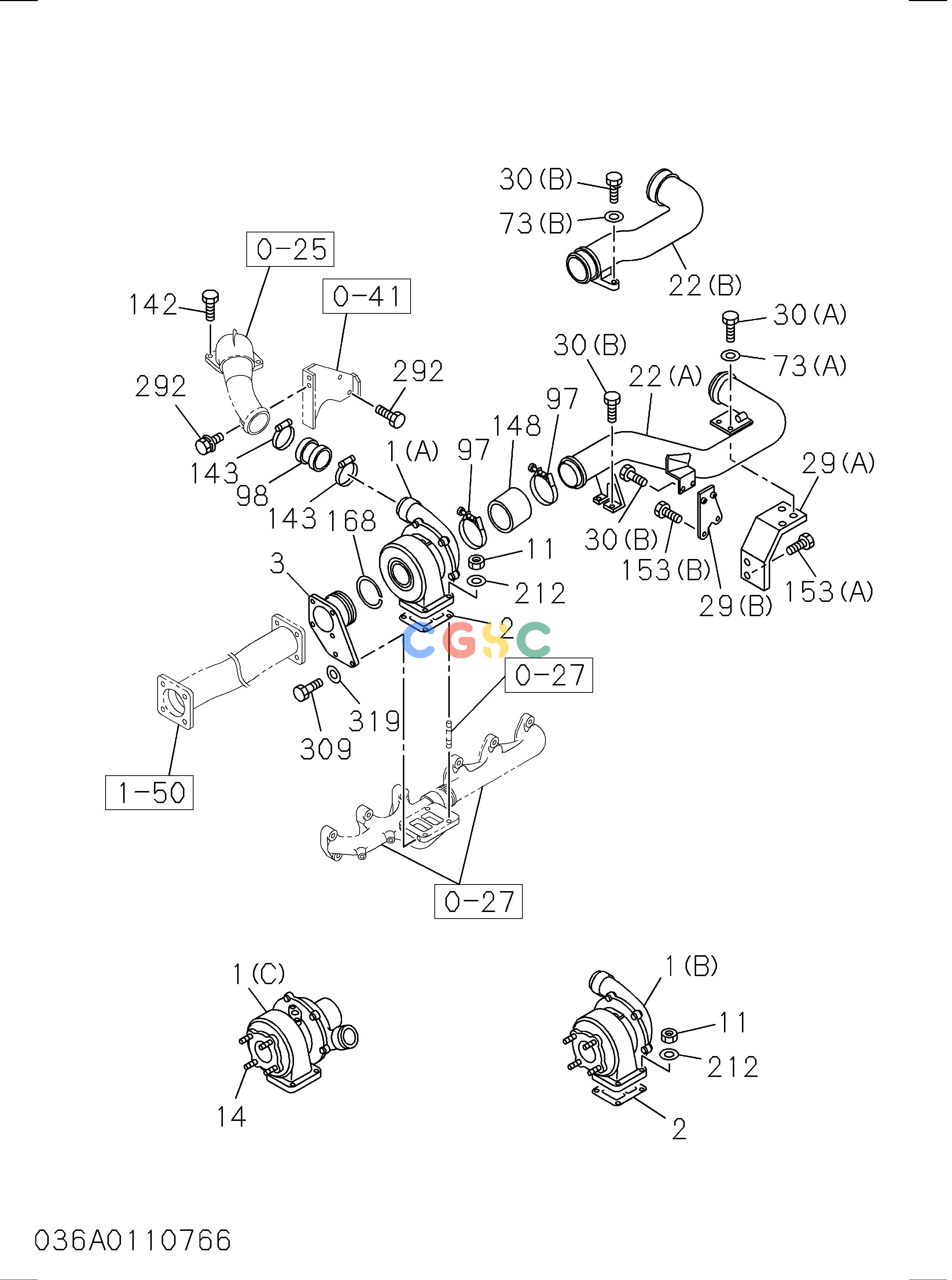

日立零件查询（CD2000）036: TURBOCHARGER SYSTEM Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
262 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(C). | 1144003530 | [1] | TURBOCHARGER ASM | SEE FIG-NO 0-37 FOR COMPONENT. |
| 002. | 1141451401 | [1] | GASKET; TURBOCHARGER TO EXH MANIF | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 011. | 1094200050 | [1] | NUT; TURBOCHARGER | M10 |
| 011. | 9098420070 | [3] | NUT; TURBOCHARGER | M10 P=1.5 H=8 |
| 014. | 1093021060 | [4] | STUD; TURBOCHARGER TO EXH PIPE | M12X115 L=135 |
| 022(B). | 1141342230 | [1] | DUCT; INL,ACL TO TURBOCHARGER | |
| 030(B). | 0286810400 | [2] | BOLT; PIPE TO BRKT | A M10X40 FLANGE |
| 030(B). | 0286510400 | [2] | BOLT; PIPE TO BRKT | M10X40 FLANGE |
| 073(B). | 9091606100 | [2] | WASHER; PL | A |
| 073(B). | 0916106100 | [2] | WASHER; PL | |
| 097. | 1097071440 | [1] | CLIP; HOSE,TURBOCHARGER,INL | ID=87 |
| 098. | 1093607971 | [1] | HOSE; RUBBER,TURBOCHARGER OUTLET | |
| 143. | 8941267710 | [2] | CLIP; HOSE,TURBOCHARGER OUTLET | ID=58 |
| 212. | 1095030331 | [4] | WASHER; PL,TURBOCHARGER | |
| 319. | 1095030331 | [2] | WASHER; PL,EXH PIPE | |
