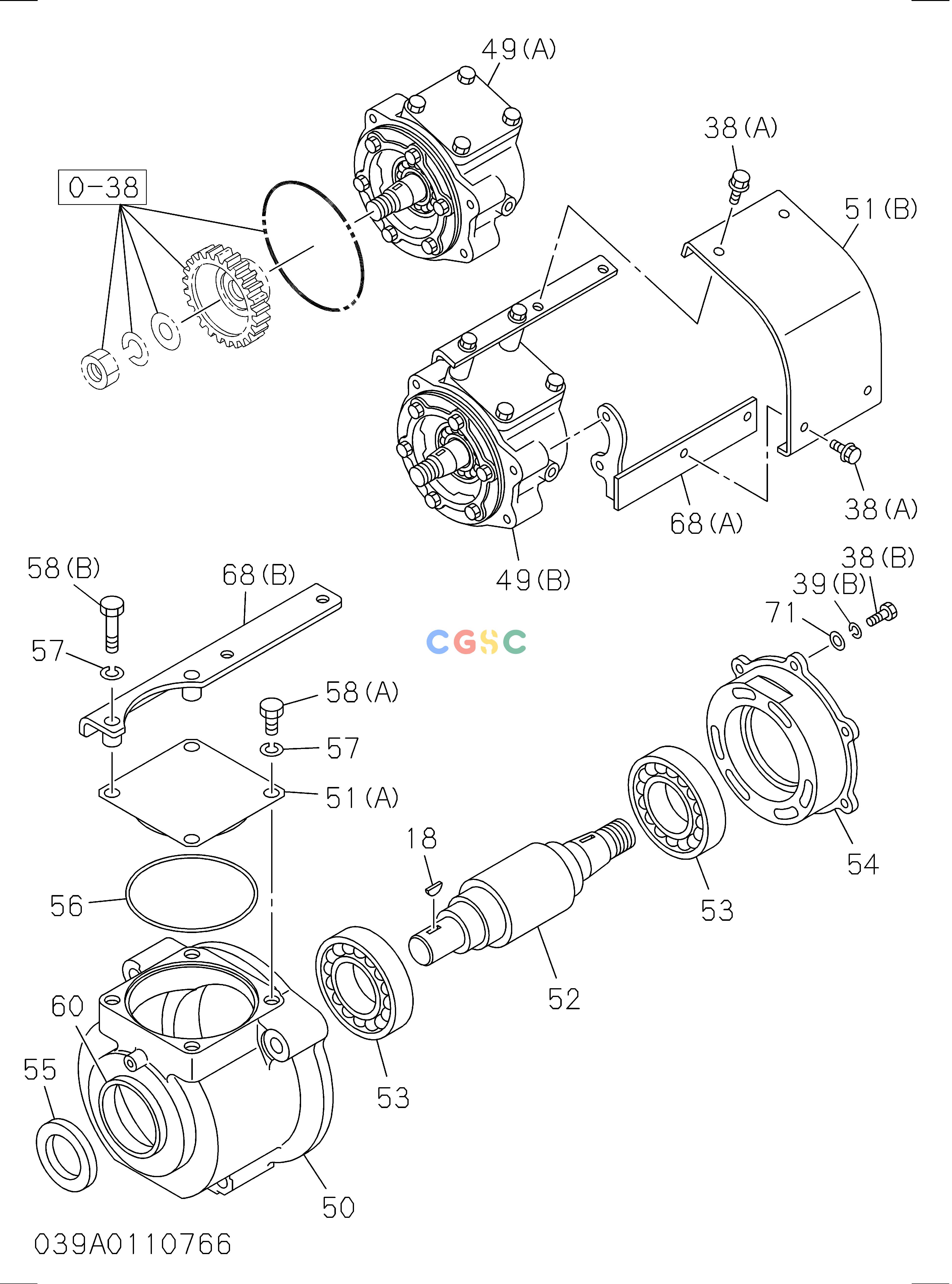

日立零件查询（CD2000）039: AIR COMPRESSOR; BRAKE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
670 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 018. | 1097350410 | [1] | KEY; AIR CMPR | |
| 038(B). | 9020506160 | [6] | BOLT; COVER FIX | M6X16 |
| 039(B). | 9091505060 | [6] | WASHER; LK,COVER FIX | |
| 049(A). | 1157801741 | [1] | COUPLING ASM; | |
| 050. | 1191512301 | [1] | CASE; COUPLING | |
| 050. | 1191512890 | [1] | CASE; COUPLING | |
| 051(A). | 1157890580 | [1] | COVER; COUPLING | |
| 052. | 1191710721 | [1] | SHAFT; COUPLING | |
| 053. | 1098002320 | [2] | BEARING; COUPLING | |
| 054. | 1191560430 | [1] | COVER; BEARING | |
| 055. | 1096251870 | [1] | SEAL; OIL,SHAFT | |
| 055. | 1096255340 | [1] | SEAL; OIL,SHAFT | |
| 056. | 1096235390 | [1] | GASKET; COVER | |
| 057. | 9091506100 | [4] | WASHER; SPRING,COVER | |
| 058(A). | 1157890590 | [4] | BOLT; COVER | |
| 060. | 1191790180 | [1] | SLEEVE; SHAFT | |
| 071. | 9091605060 | [6] | WASHER; COUPLING | |
