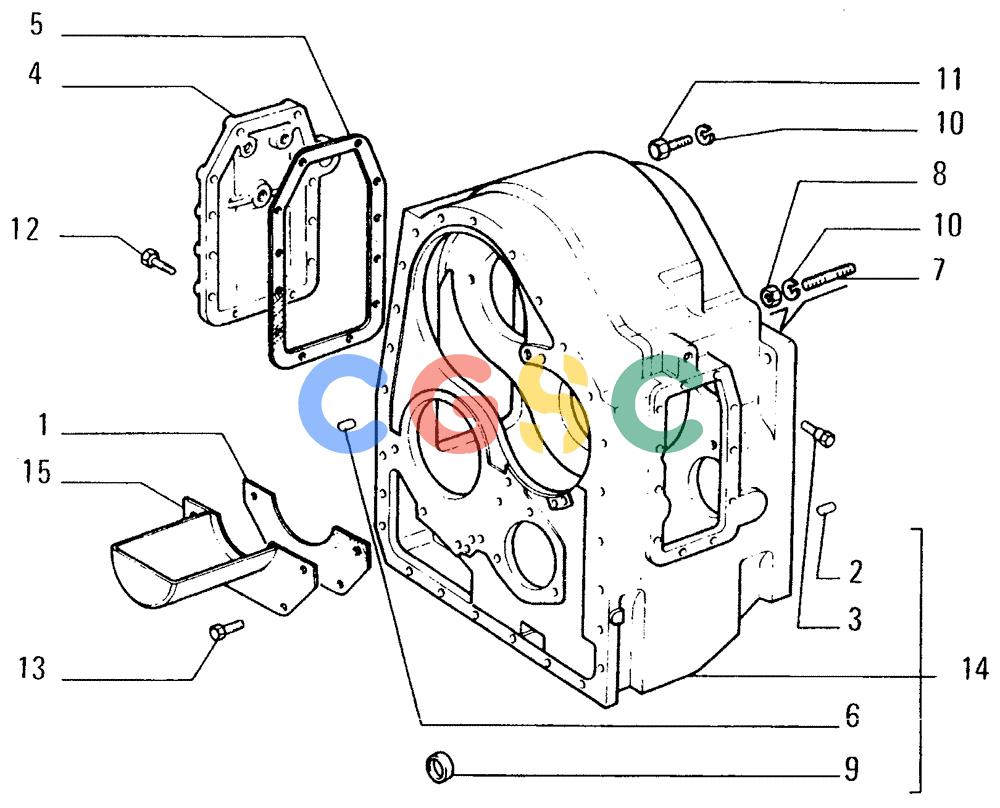

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[003]) - TRANSMISSION-TRANSMISSION HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
809 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 586740 | [1] | GASKET | LEC Superseded by part number: 76028092 |
| 2. | 587088 | [1] | DOWEL | LEC |
| 3. | 4502935 | [2] | SCREW | LECHOOK |
| 4. | 4961971 | [1] | COVER | LEC- SIDE RIGHT |
| 5. | 4962048 | [1] | GASKET | LEC Superseded by part number: 76028089 |
| 6. | 10839810 | [3] | DOWEL,12mm OD x 18mm L | TTF12x18 Superseded by part number: 17275610 |
| 7. | 11800534 | [3] | STUD | LEC Superseded by part number: 11800530 |
| 8. | 12164127 | [3] | NUT,M16 x 1.5, Cl 10 | LEC16x1,5x13 Superseded by part number: 12164124 |
| 9. | 504344694 | [1] | PLUG,M25, Tapered | TOR25x8 |
| 10. | 14496931 | [7] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 11. | 15840537 | [4] | BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15840534 |
| 12. | 15970634 | [12] | BOLT,Hex, M10 x 1.25 x 22mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15970631 |
| 13. | 16043134 | [4] | BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043131 |
| 14. | 79032243 | [1] | HOUSING | LECCASE - ASSEMBLY |
| 15. | 79064202 | [1] | GUARD | LECCONTAINER Superseded by part number: 79111321 |
