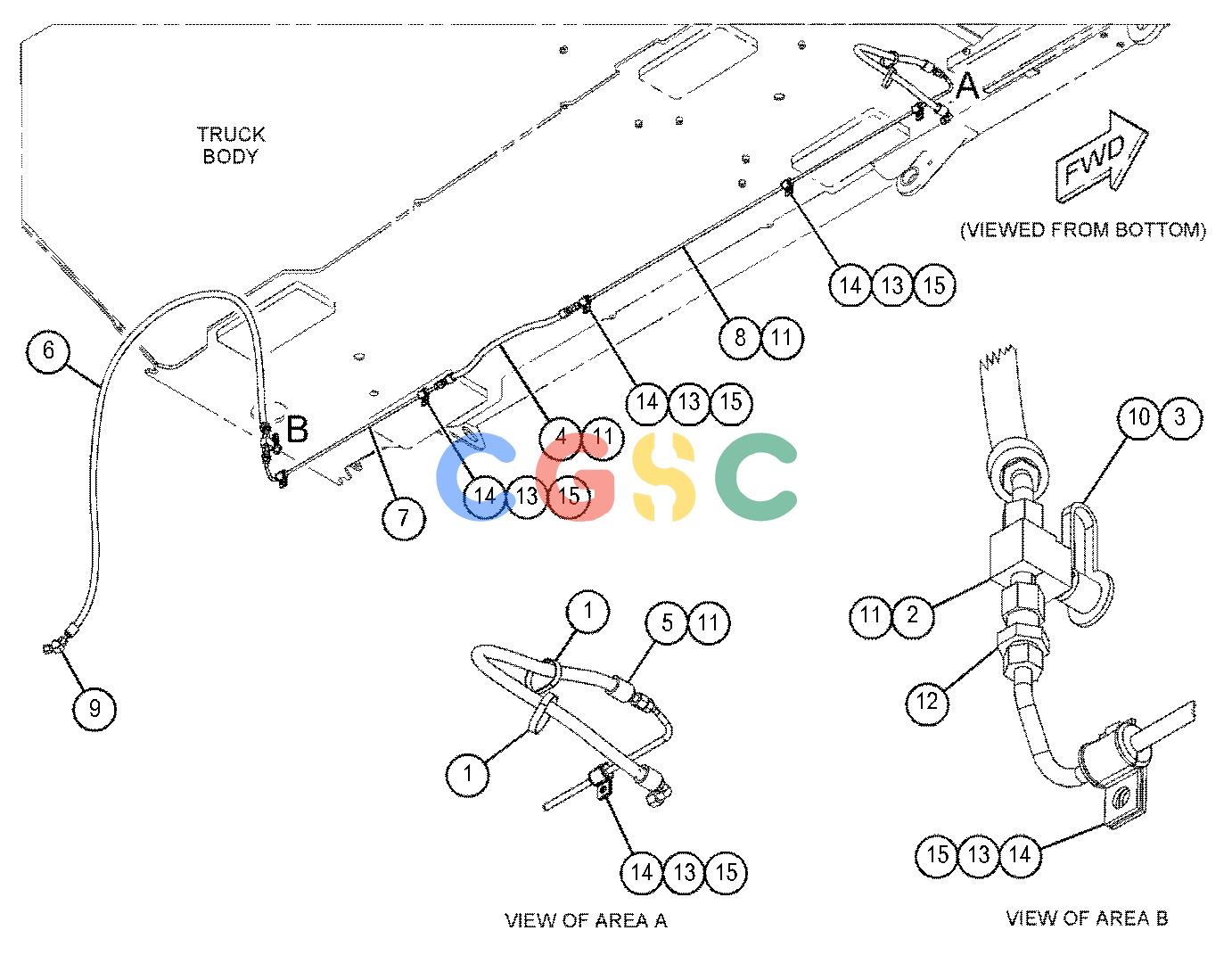

卡特零件查询（725C2） 469-1477: CONTROL GP-PARKING BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 148-8424 | [1] | TEE AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-8902 | [1] | ADAPTER-TEE | |
| 3. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 4. | 238-4899I | [1] | HOSE AS | |
| 5. | 373-2572I | [1] | HOSE AS | |
| 6. | 447-0118I | [1] | HOSE AS | |
| 7. | 454-7448 | [1] | TUBE AS | |
| 8. | 509-0012 | [1] | TUBE AS | |
| 9. | 153-6241 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8C-8989 | [1] | ELBOW | |
| 10. | 6V-0852 | [1] | CAP-DUST | |
| 11. | 6V-8397 | [4] | SEAL-O-RING | |
| 12. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 13. | 8T-1887 | [5] | CLIP(SLOT) | |
| 14. | 8T-1888 | [5] | CLIP(TAB) | |
| 15. | 8W-8909 | [5] | SLEEVE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
