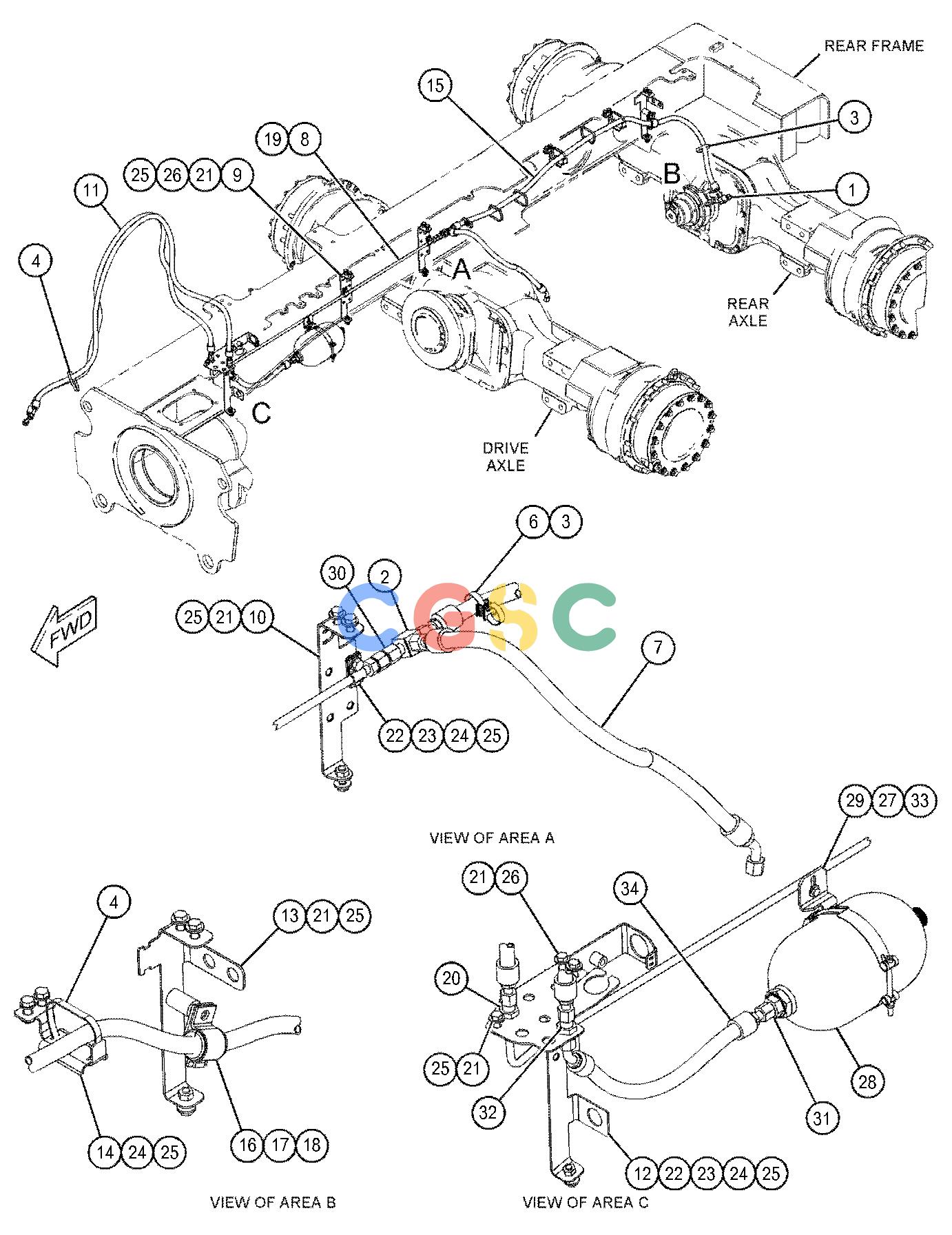

卡特零件查询（725C2） 467-5574: LINES GP-BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
603 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 2. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 3. | 6U-0455 | [3] | STRAP | |
| 4. | 6U-0456 | [6] | STRAP | |
| 6. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 7. | 347-1217I | [1] | HOSE AS | |
| 8. | 383-1327 | [1] | TUBE AS | |
| 9. | 383-1447 | [1] | BRACKET AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 10. | 395-0147 | [1] | BRACKET AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 11. | 447-0297I | [2] | HOSE AS | |
| 12. | 494-1469 | [1] | BRACKET AS | |
| 13. | 495-4690 | [1] | BRACKET AS | |
| 14. | 454-0475 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 15. | 486-8728I | [1] | HOSE AS | |
| 16. | 5P-7464 | [1] | CLIP(SLOT) | |
| 17. | 5P-7465 | [1] | CLIP(TAB) | |
| 18. | 6V-1249 | [1] | GROMMET(22-MM ID) | |
| 19. | 6V-8398 | [2] | SEAL-O-RING | |
| 20. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 21. | 7X-7729 | [13] | WASHER(11X25X3-MM THK) | |
| 22. | 8T-1885 | [3] | CLIP(SLOT) | |
| 23. | 8T-1886 | [3] | CLIP(TAB) | |
| 24. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 26. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 27. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 28. | 333-4731Y | [1] | ACCUMULATOR GP-BRAKE(CHARGED) | |
| 29. | 255-6195 | [1] | CLAMP AS | |
| 30. | 499-1127 | [1] | ADAPTER AS | |
| 31. | 148-8328 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8633 | [1] | CONNECTOR | |
| 32. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 33. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 34. | 342-4954I | [1] | HOSE AS | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
