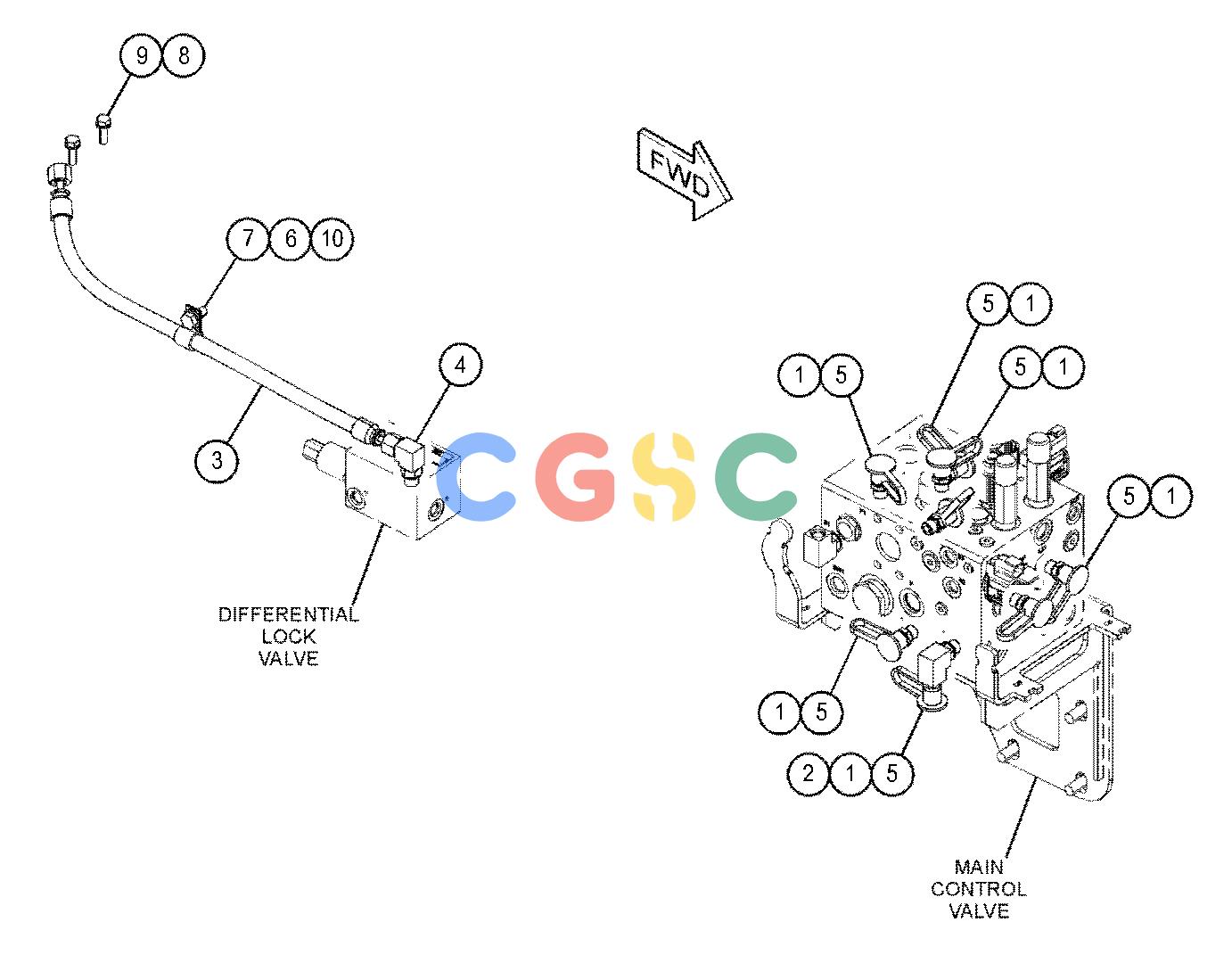

卡特零件查询（725C2） 364-2905: LINES GP-PRESSURE TEST
广数供应链运营团队, 15 02月, 2025，浏览：
753 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 164-5567 | [8] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 2. | 241-6215 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| 3. | 446-5528I | [1] | HOSE AS | |
| 4. | 148-8378 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 5. | 6V-0852 | [8] | CAP-DUST | |
| 6. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 8. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 10. | 9M-8406 | [1] | CLIP(LOOP) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
