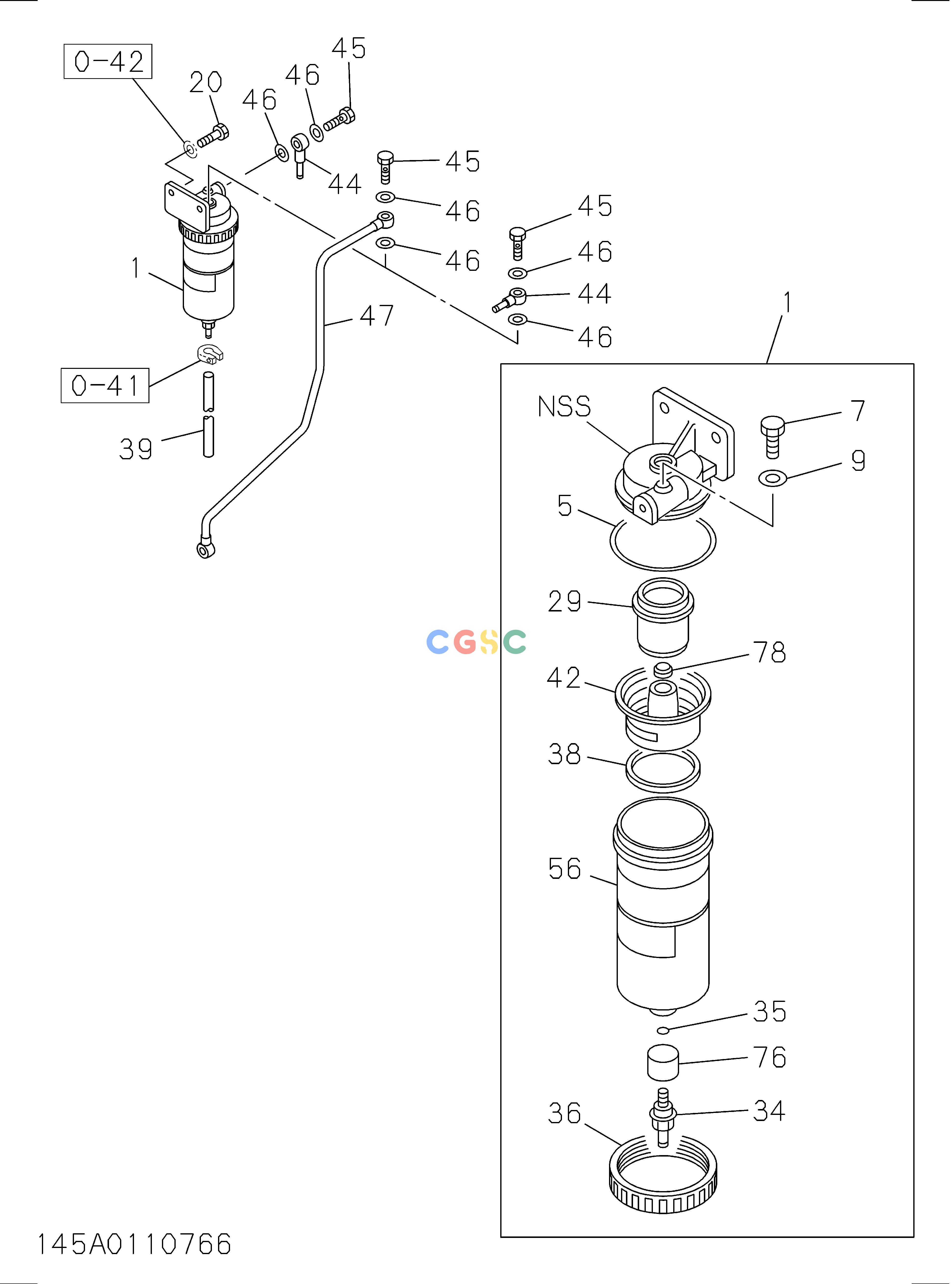

日立零件查询（CD2000）145: WATER SEDIMENTER; FUEL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
254 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1132009600 | [1] | SEDIMENTER; FUEL | |
| 005. | 1096236100 | [1] | GASKET; UPR COVER,SEDIMENTER | |
| 007. | 1096040770 | [1] | PLUG; DRAIN,SEDIMENTER | |
| 009. | 1096301180 | [1] | GASKET; DRAIN PLUG & CONNECTOR | |
| 020. | 0501410300 | [2] | BOLT; BRKT TO SEDIMENTER | A M10X30W/LK&PL WASHER |
| 020. | 0506410300 | [2] | BOLT; BRKT TO SEDIMENTER | M10X30W/LK&PL WASHER |
| 029. | 1132192120 | [1] | SCREEN ASM; SEDIMENTER | |
| 034. | 1132192110 | [1] | PLUG; DRAIN,FUEL FILTER | |
| 035. | 1096234730 | [1] | GASKET; DRAIN PLUG | |
| 036. | 1132192081 | [1] | RING; BODY TO CASE | |
| 038. | 1132192100 | [1] | FLOAT; SEDIMENTER | |
| 039. | 9099147010 | [1] | HOSE; SEDIMENTER | L=750 S.B.L=10000 |
| 042. | 1132192090 | [1] | PLATE; BAFFLE | |
| 044. | 5154112231 | [1] | PIPE; FUEL,SEDIMENTER | |
| 045. | 1096750860 | [2] | BOLT; EYE,FUEL PIPE | |
| 046. | 1096300850 | [4] | GASKET; FUEL PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 047. | 1154158540 | [1] | PIPE; FUEL,SEDIMENTER TO PUMP | |
| 056. | 1132112550 | [1] | CASE; FUEL SEDIMENTER | |
| 076. | 1132192130 | [1] | CUP; DRAIN | |
| 078. | 1093331330 | [1] | GASKET; BAFFLE PLATE | |
