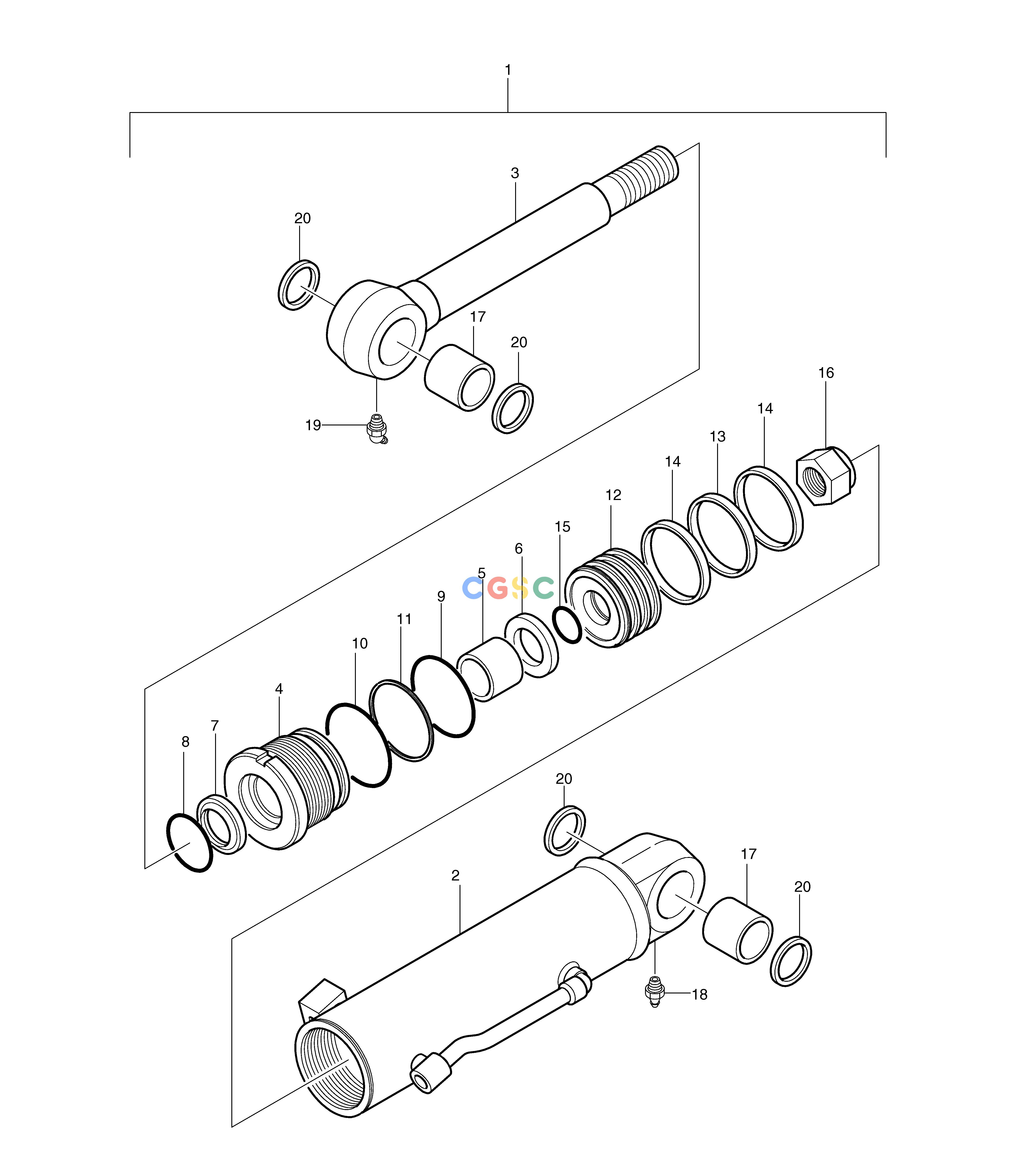

斗山零件查询DOZER CYLINDER-1000mm SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9260KT
|
[1] |
SEAL KIT;DOZER
|
|
| 1. |
2440-9260
|
[1] |
CYLINDER;DOZER
|
|
| 10. |
74011AG60X
|
[1] |
O-RING 1A-G60
|
|
| 11. |
7407T3G55X
|
[1] |
RING;BACK UP T3-G55
|
|
| 12. |
N1000401
|
[1] |
PISTON
|
|
| 13. |
8BBH106100
|
[1] |
PACKING;PISTON
|
|
| 14. |
8BBH606020
|
[2] |
RING;WEAR
|
|
| 15. |
74011BG30X
|
[1] |
O-RING 1B-G30
|
|
| 16. |
8Z01580220
|
[1] |
NUT;NYLON M22X2.5
|
|
| 17. |
K4340601-2
|
[2] |
BUSH
|
|
| 18. |
7575APT180
|
[1] |
NIPPLE;GREASE
|
|
| 19. |
7575CPT180
|
[1] |
NIPPLE;GREASE
|
|
| 2. |
N1470100
|
[1] |
CYLINDER TUBE ASS'Y
|
|
| 20. |
8Z07145300
|
[4] |
SEAL;DUST
|
|
| 3. |
N1470200
|
[1] |
PISTON ROD ASS'Y
|
|
| 4. |
K4340301-4
|
[1] |
COVER;ROD
|
|
| 5. |
8Z07177300
|
[1] |
BUSH
|
|
| 6. |
8BBH203020
|
[1] |
PACKING;ROD 30X40X7
|
|
| 7. |
8BBH403010
|
[1] |
SEAL;DUST 30X42X6X9
|
|
| 8. |
8BANS49010
|
[1] |
RING;SNAP
|
|
| 9. |
74011BG55X
|
[1] |
O-RING 1B-G55
|
|
