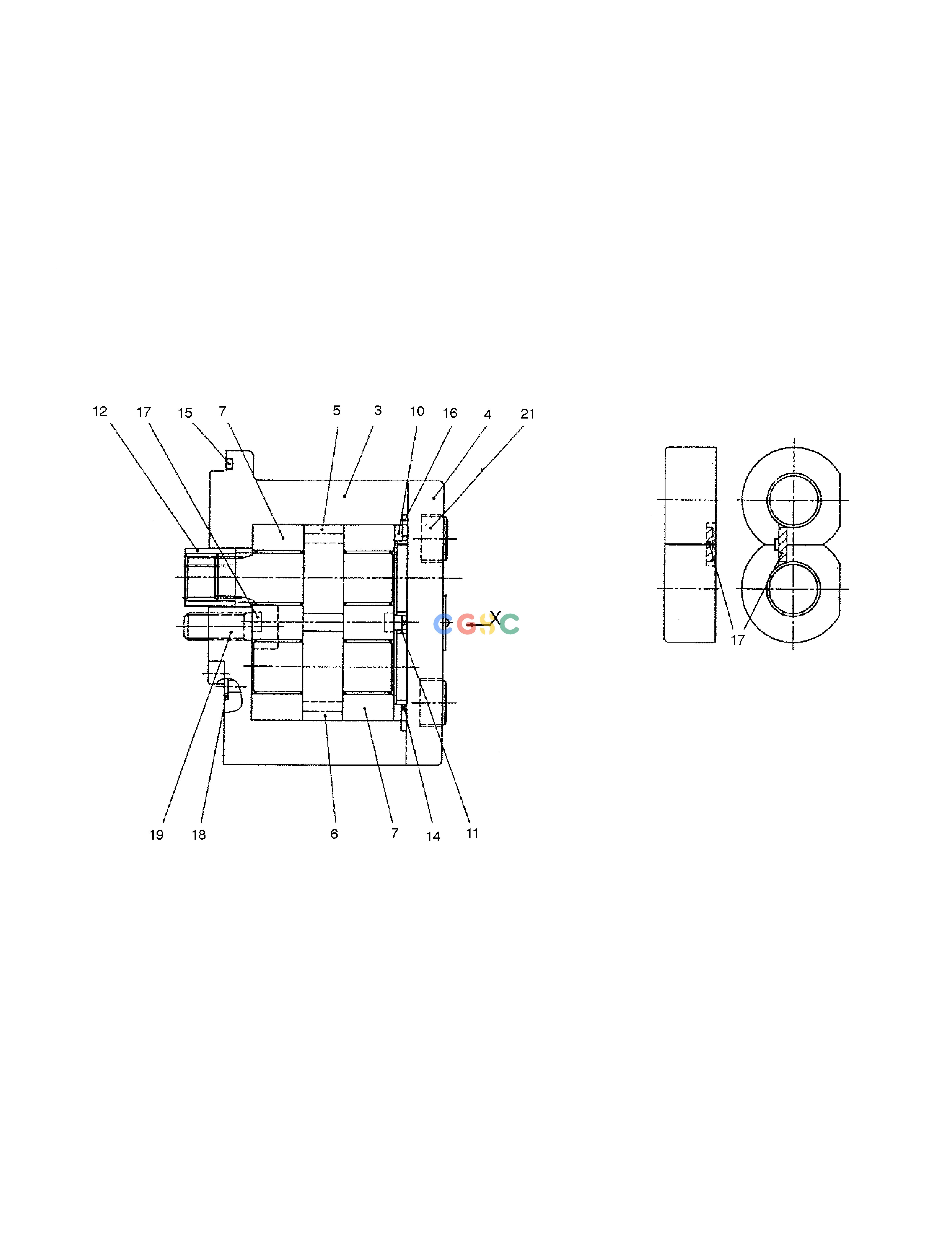

斗山零件查询GEAR PUMP SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
316 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2.401-00056
|
[1] |
GEAR PUMP
|
|
| 10. |
2.412-00356
|
[4] |
PLATE
|
|
| 11. |
2.429-00017
|
[2] |
GUIDE
|
|
| 12. |
2.414-00024
|
[1] |
COUPLING
|
|
| 14. |
2.180-00388
|
[2] |
O-RING
|
|
| 15. |
S8010900
|
[1] |
O-RING
|
|
| 16. |
2.180-01054
|
[1] |
RING;SQUARE
|
|
| 17. |
2.180-01055
|
[2] |
RING;SQUARE
|
|
| 18. |
S8000061
|
[1] |
O-RING
|
|
| 19. |
S2212061
|
[2] |
BOLT;SOCKET M10X1.5X25
|
|
| 21. |
S2211861
|
[4] |
BOLT;SOCKET M10X1.5X20
|
|
| 3. |
2.402-00141
|
[1] |
HOUSING
|
|
| 4. |
2.430-00169
|
[1] |
COVER
|
|
| 5. |
2.404-00003
|
[1] |
GEAR;DRIVE
|
|
| 6. |
2.403-00147
|
[1] |
GEAR;IDLE
|
|
| 7. |
2.412-00252
|
[2] |
SIDE PLATE ASS'Y
|
|
