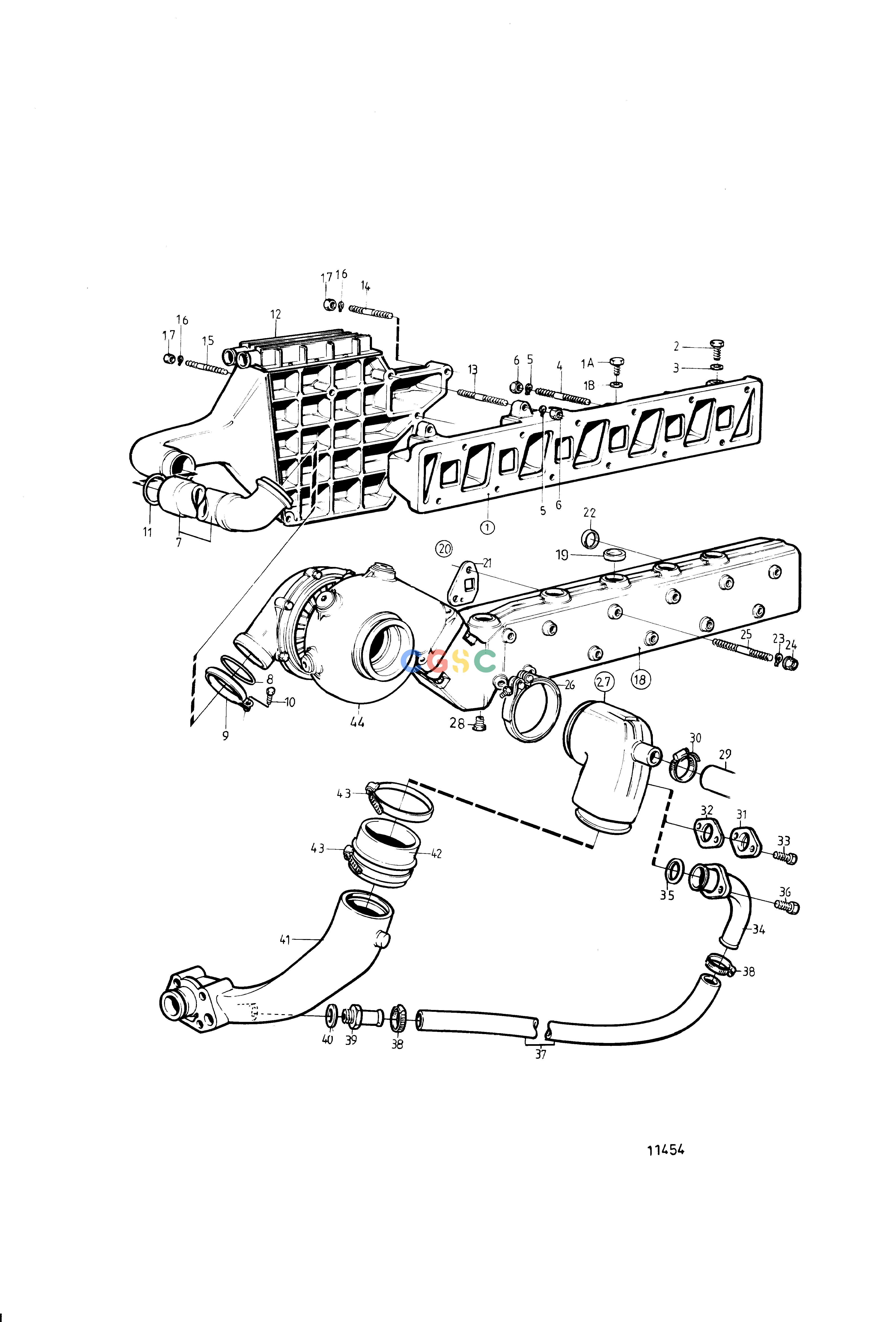

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BCooling SystemInlet and Exhaust Manifold with Installation Components: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
575 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859300
|
[1] |
Inlet pipe
|
|
| 1A. |
960634
|
[4] |
Plug
|
|
| 1B. |
947627
|
[4] |
Gasket
|
|
| 2. |
960632
|
[1] |
Plug
|
|
| 3. |
947624
|
[1] |
Gasket
|
|
| 4. |
924068
|
[8] |
Stud
|
L=50mm
|
| 4. |
17942
|
[2] |
Stud
|
L=110mm
|
| 5. |
941907
|
[10] |
Spring washer
|
Early type
|
| 6. |
945408
|
[10] |
Flange nut
|
|
| 7. |
838693
|
[1] |
Connecting pipe
|
|
| 8. |
967944
|
[1] |
O-ring
|
|
| 9. |
838864
|
[1] |
V-clamp
|
|
| 10. |
947542
|
[1] |
Flange screw
|
|
| 11. |
471449
|
[1] |
O-ring
|
|
| 12. |
7745930_024
|
|
after cooler with installation comps
|
|
| 12. |
|
|
|
|
| 13. |
953049
|
[2] |
Stud
|
L=50mm
|
| 14. |
17942
|
[1] |
Stud
|
L=110mm
|
| 15. |
838854
|
[1] |
Stud
|
L=185mm
|
| 16. |
941907
|
[4] |
Spring washer
|
|
| 17. |
945408
|
[4] |
Flange nut
|
|
| 18. |
838687
|
[1] |
Exhaust pipe
|
|
| 19. |
946780
|
[12] |
Cap plug
|
|
| 20. |
876144
|
[3] |
Gasket kit
|
|
| 21. |
838673
|
[2] |
Gasket
|
|
| 22. |
838766
|
[1] |
Sealing ring
|
|
| 23. |
941908
|
[10] |
Spring washer
|
|
| 24. |
971095
|
[12] |
Flange nut
|
|
| 25. |
953001
|
[4] |
Stud
|
L=120mm
|
| 25. |
953002
|
[5] |
Stud
|
L=125mm alt
|
| 25. |
953007
|
[2] |
Stud
|
L=150mm alt
|
| 25. |
17378
|
[1] |
Stud
|
L=170mm
|
| 26. |
842993
|
[1] |
V-clamp
|
|
| 27. |
860656
|
[1] |
Pipe elbow
|
|
| 28. |
192134
|
[2] |
Plug
|
|
| 29. |
860406
|
[1] |
Hose
|
Heat exchanger-exhaust bend
|
| 30. |
994561
|
[1] |
Hose clamp
|
|
| 31. |
844093
|
[1] |
Flange
|
|
| 32. |
859002
|
[1] |
Gasket
|
|
| 33. |
946544
|
[2] |
Flange screw
|
|
| 44. |
|
|
|
|
