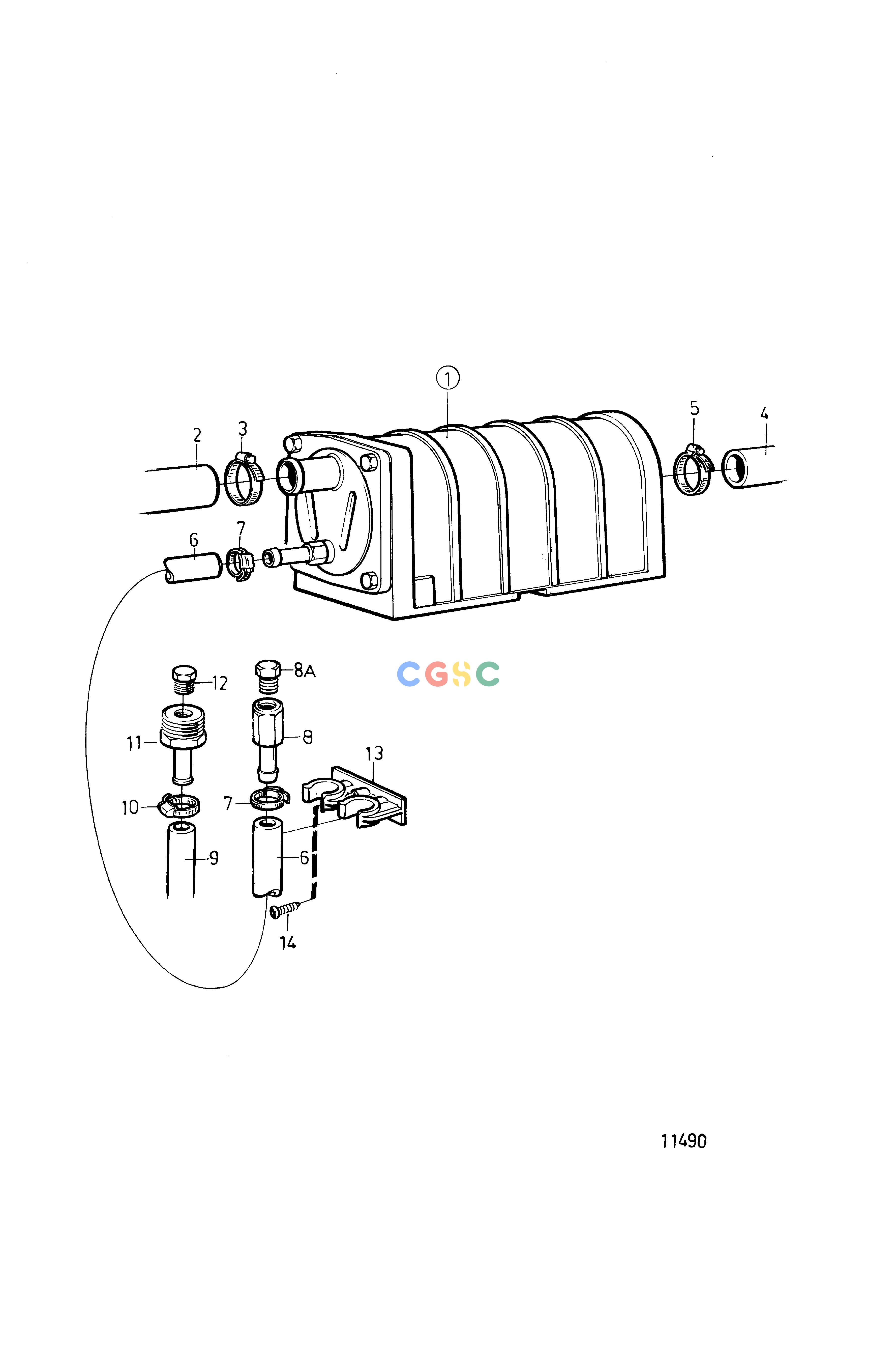

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BCooling SystemOil Cooler with Installation Components: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
488 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860635
|
[1] |
Oil cooler
|
|
| 2. |
860404
|
[1] |
Hose
|
Oil cooler-after cooler
|
| 3. |
994560
|
[1] |
Hose clamp
|
|
| 4. |
860997
|
[1] |
Hose
|
Sea water pump-oljekylare, (860641)
|
| 5. |
994560
|
[1] |
Hose clamp
|
|
| 6. |
952967
|
[1] |
Hose
|
L=900mm
|
| 7. |
994556
|
[2] |
Hose clamp
|
|
| 8. |
860943
|
[1] |
Hose nipple
|
|
| 8A. |
180759
|
[1] |
Plug
|
|
| 9. |
952967
|
[1] |
Hose
|
L=900mm, see group 2A
|
| 10. |
994556
|
[1] |
Hose clamp
|
|
| 11. |
860801
|
[1] |
Nipple
|
|
| 12. |
192134
|
[1] |
Plug
|
|
| 13. |
860817
|
[1] |
Clip
|
|
| 14. |
955119
|
[2] |
Cross recessed screw
|
|
