| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

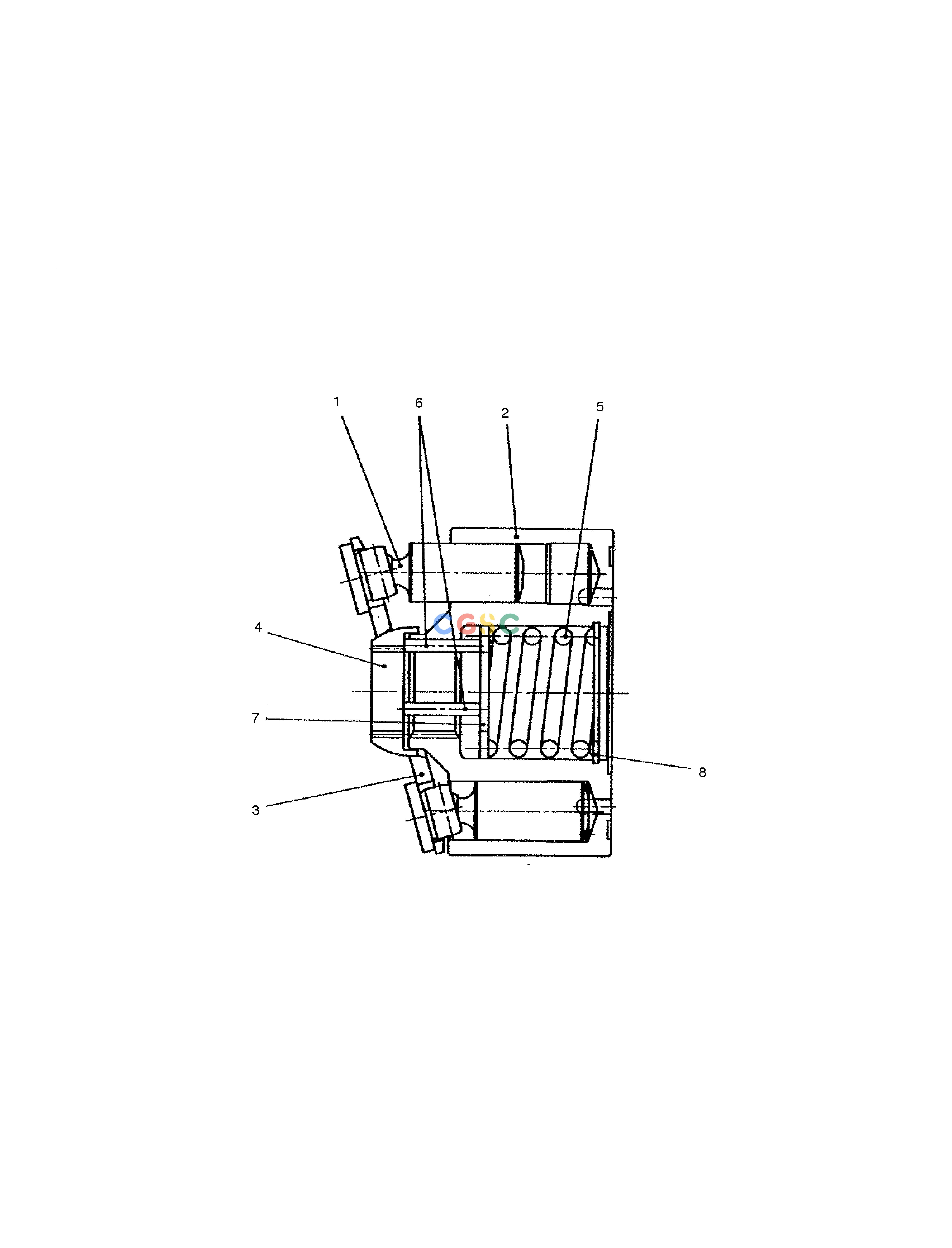

| -. | 2.409-00248 | [1] | ROTARY GROUP | |
| 1. | 2.409-00249 | [10] | PISTON | |
| 2. | 2.410-00155 | [1] | BLOCK;CYLINDER | |
| 3. | 2.229-00001 | [1] | RETAINER | |
| 4. | 2.429-00148 | [1] | GUIDE | |
| 5. | 2.129-00024 | [1] | SPRING | |
| 6. | 2.123-00302 | [3] | PIN;PARALLEL | |
| 7. | 2.114-01355 | [1] | WASHER | |
| 8. | S6510320 | [1] | RING;RETAINER(C-TYPE) |
