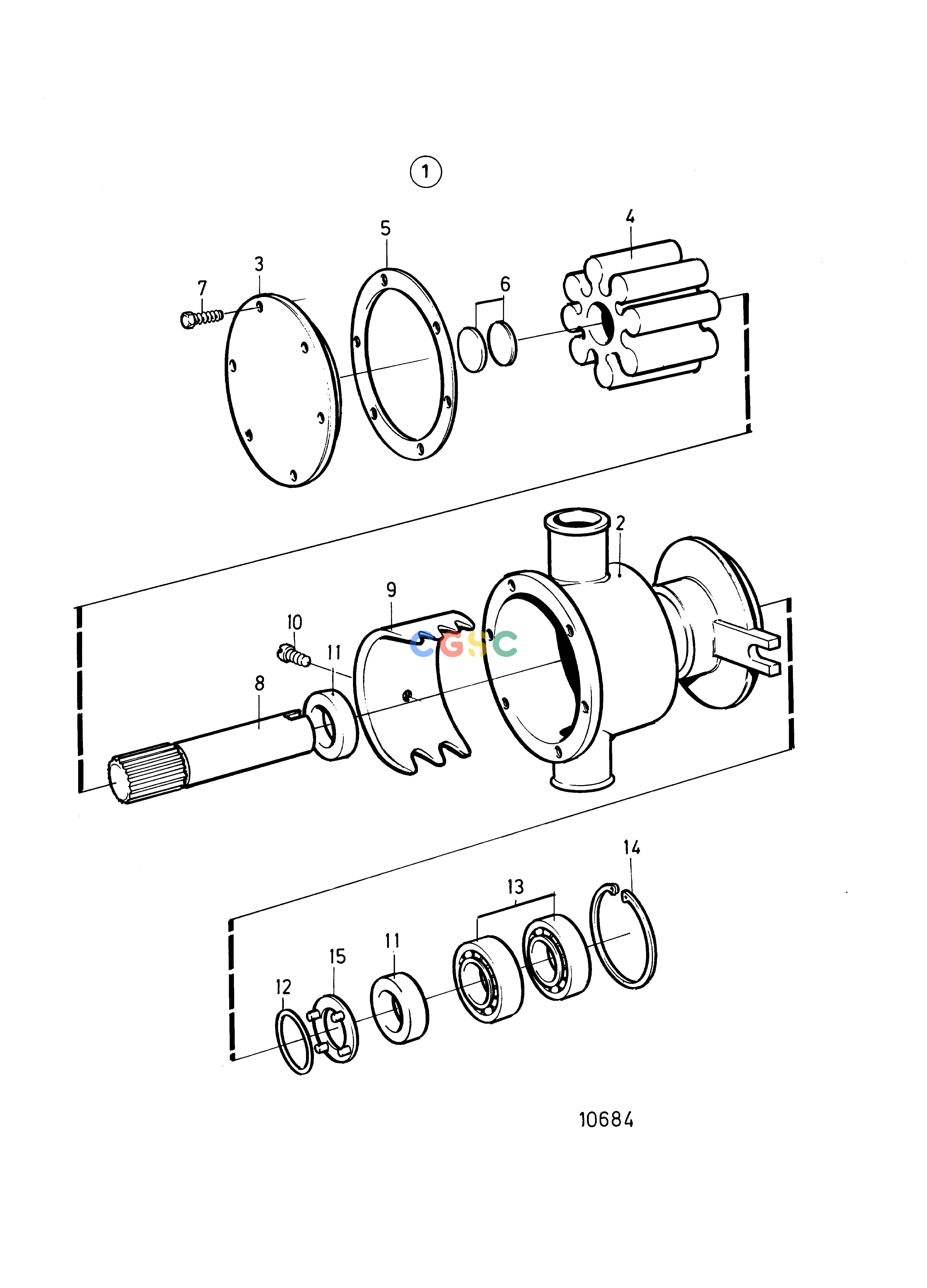

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BCooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
286 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860629
|
[1] |
Sea water pump
|
|
| 2. |
|
|
|
|
| 3. |
860751
|
[1] |
Cap
|
|
| 4. |
875593
|
[1] |
Impeller kit
|
|
| 5. |
808275
|
[1] |
Gasket
|
|
| 6. |
827019
|
[2] |
Washer
|
|
| 7. |
21951334
|
[1] |
Screw kit
|
|
| 8. |
|
|
|
|
| 9. |
827011
|
[1] |
Cam
|
|
| 10. |
808285
|
[1] |
Screw
|
|
| 11. |
827247
|
[2] |
Sealing ring
|
|
| 12. |
960166
|
[1] |
O-ring
|
|
| 13. |
11010
|
[2] |
Ball bearing
|
|
| 14. |
914523
|
[1] |
Snap ring
|
|
| 15. |
844580
|
[1] |
Support washer, support washer
|
|
| 15. |
|
|
|
|
| 15. |
876088
|
[1] |
Repair kit
|
See group 10B
|
