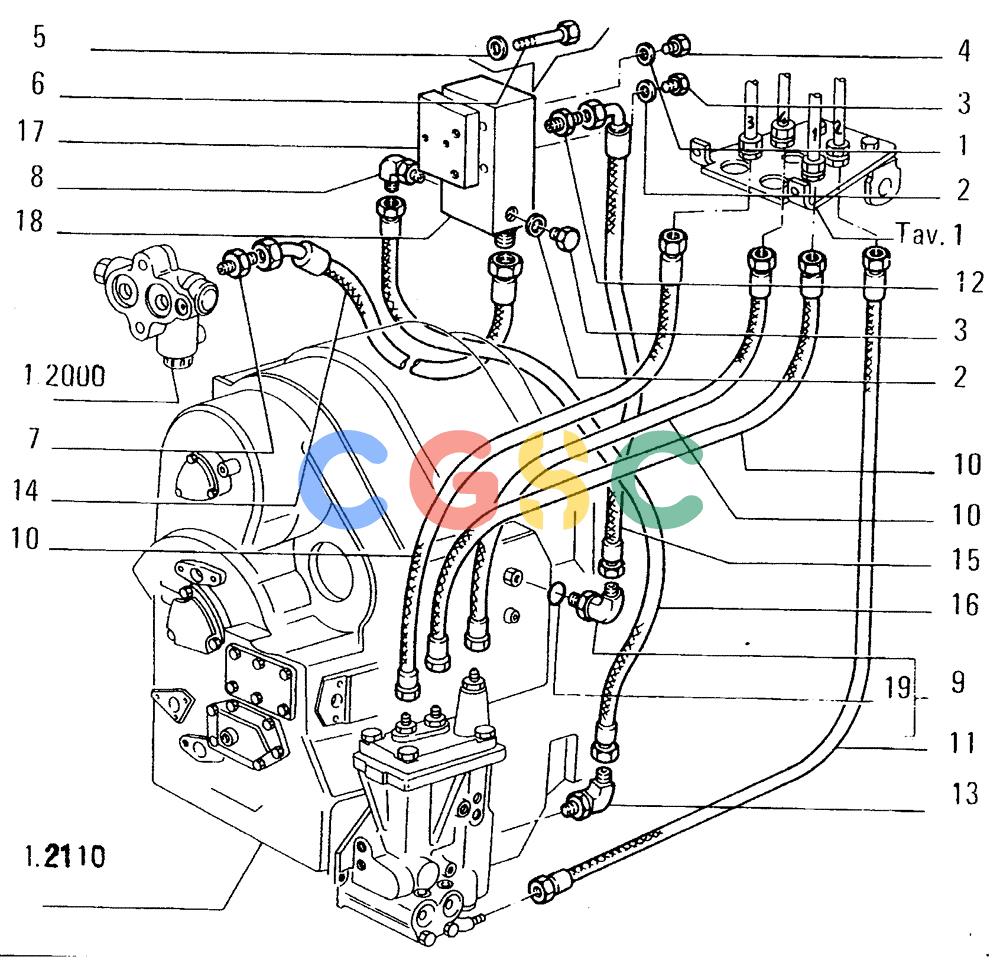

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2240[002]) - TRANSMISSION OUTER CONTROLS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10259960 | [1] | SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper | TTFWASHER, SEALING, M18.3 x 24 x 1.5, Copper Superseded by part number: 16508360 |
| 2. | 10280060 | [2] | SEAL,M14.2 x 20 x 1.5 | TTFGASKET 14,2x20 Superseded by part number: 4858608 |
| 3. | 10300611 | [2] | PLUG,M14 x 1.5 x 14, Cl5.8 | BAS14x1,5x9 Superseded by part number: 16992315 |
| 4. | 10300811 | [1] | PLUG,M18 x 1.5 x 14, Cl5.8 | IMO18x1,5x9 Superseded by part number: 16992511 |
| 5. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 6. | 16044334 | [2] | BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9 | LECSCREW 8x1,25x55 Superseded by part number: 16044331 |
| 7. | 71311812 | [1] | HYD CONNECTOR | LECFITTING C2707 |
| 7. | 79066941 | [1] | HYD CONNECTOR | LECFITTING 02707 |
| 8. | 79054402 | [1] | ELBOW | LECFITTING Superseded by part number: 76344 |
| 9. | 79067022 | [1] | ELBOW | LECFITTING - ASSEMBLY |
| 10. | 79078500 | [3] | FLEXIBLE HOSE | LECHOSE ASSY Superseded by part number: 76030379 |
| 11. | 79078501 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 12. | 79081979 | [1] | HYD CONNECTOR | TORFITTING |
| 13. | 79086872 | [1] | HYD CONNECTOR | LECFITTING |
| 14. | 79092215 | [1] | FLEXIBLE HOSE | LECHOSE ASSY Superseded by part number: 79066942, 79108173 |
| 15. | 79092216 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 16. | 79092249 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 17. | 79083695 | [1] | PLATE | LEC |
| 18. | 79086994 | [1] | HYDRAULIC VALVE | LECVALVE - ASSEMBLY SEE TAV.3 |
| 19. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC15.3MM ID x 2.4 Thk |
