纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2240[004]) - TRANSMISSION OUTER CONTROLS-MANIPULATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
842 次

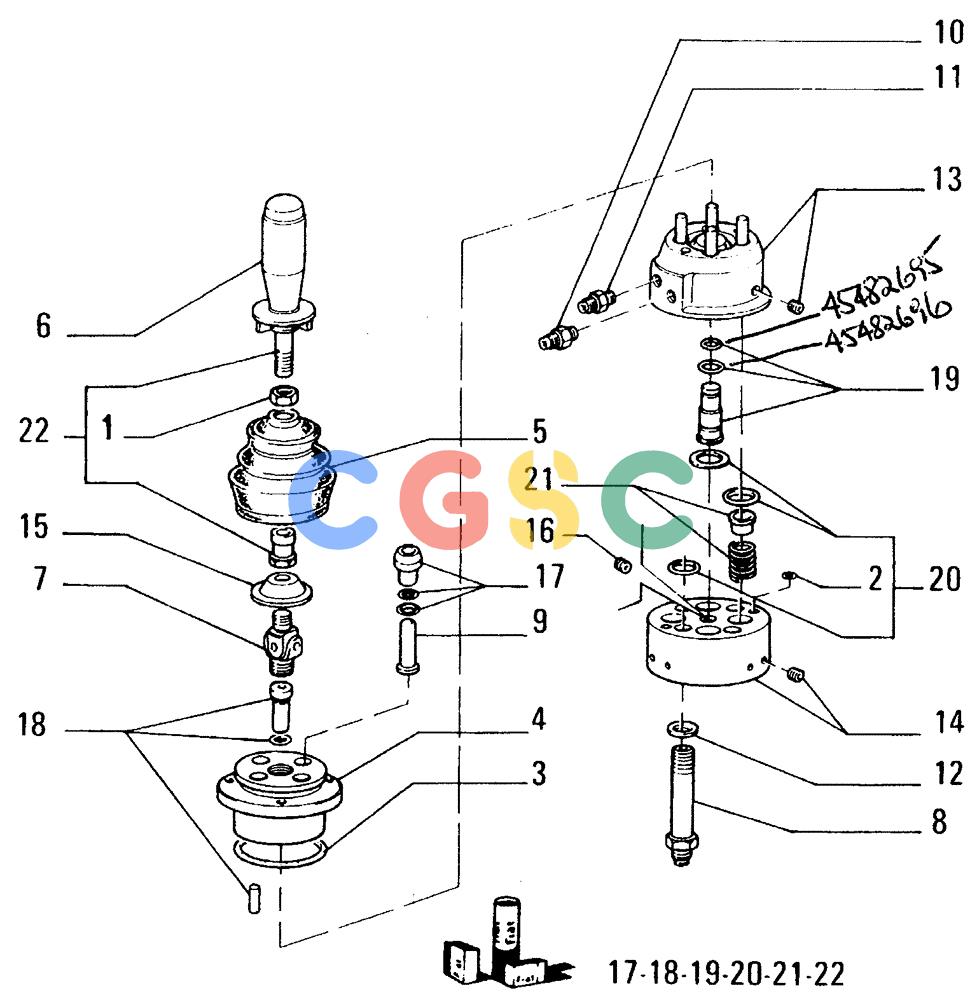

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10717311 | [1] | THIN NUT,Thin, M12 x 1.75, Cl 04 | LEC Superseded by part number: 337475 |
| 2. | 14452580 | [4] | O-RING,4.47mm ID x 1.78mm Width | MKT0-RING 1,78x4,47 Superseded by part number: 14452581 |
| 3. | 14455780 | [1] | O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro | LEC0-RING Superseded by part number: 70927591 |
| 4. | 45483647 | [1] | BODY | TOR |
| 5. | 45482730 | [1] | PROTECTION CAP | TORBOOT |
| 6. | 79077337 | [1] | HANDLE GRIP | TORHANDGRIP Superseded by part number: 151615493 |
| 7. | 79077324 | [1] | FLEXIBLE JOINT | TORUNIVERSAL JOINT |
| 8. | 79078690 | [4] | HYD CONNECTOR | LECFITTING |
| 9. | 79078686 | [4] | PLUNGER | LEC Superseded by part number: 71479708 |
| 10. | 79078688 | [1] | HYD CONNECTOR | LECFITTING |
| 11. | 79078689 | [1] | HYD CONNECTOR | LECFITTING |
| 12. | 79078706 | [4] | O-RING,14.2mm ID x 17.9mm OD x 1.5mm | LECSEAL |
| 13. | 79081173 | [1] | BODY | LEC- ASSEMBLY |
| 14. | 79081178 | [1] | BODY | LECPLATE - ASSEMBLY |
| 15. | 79081150 | [1] | CAP WASHER | LECPLATE |
| 16. | 79081180 | [4] | LUBE OIL NOZZLE | LECJET |
| 17. | 79078666 | [1] | GUIDE | LECKIT |
| 18. | 79078698 | [1] | KIT | LEC Superseded by part number: 79065504, 45483636 |
| 19. | 79078699 | [1] | KIT | LEC Superseded by part number: 79078693, 79078692, 79078691 |
| 20. | 79078700 | [1] | KIT | LEC Superseded by part number: 45482696, 70927591, 14452581, 71479709, 79078695 |
| 21. | 79078701 | [1] | KIT | LEC |
| 22. | 79078780 | [1] | KIT | LEC Superseded by part number: 8604528, 45482730, 337475, 79078708 |
