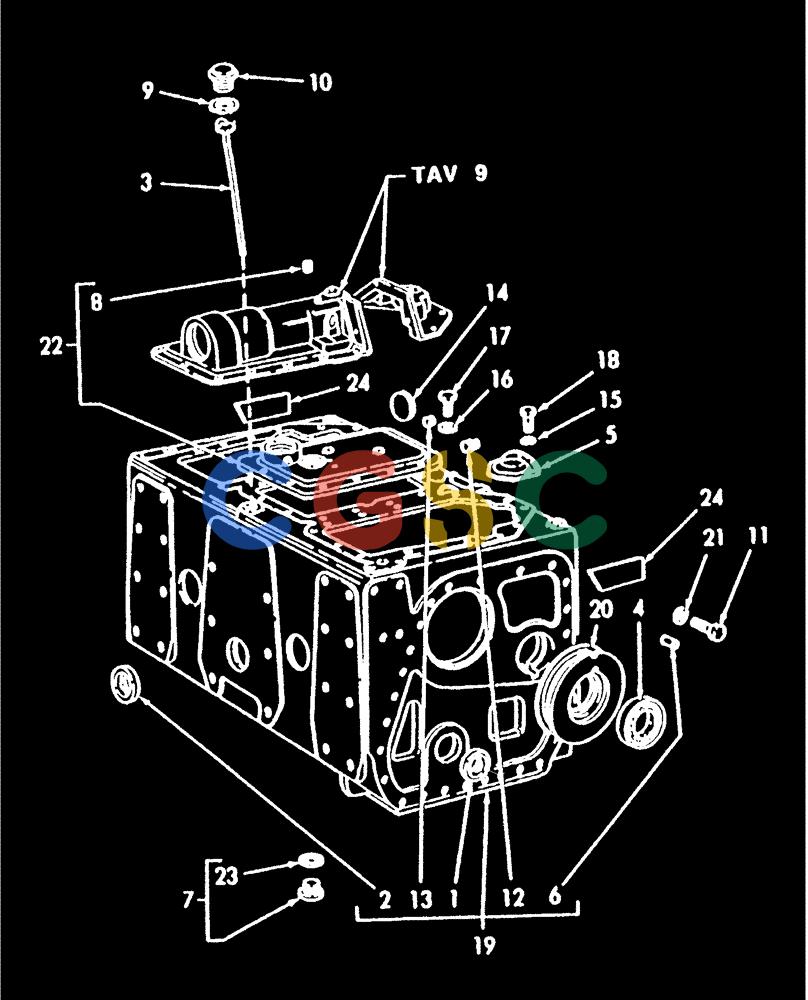

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2770[001]) - REAR TRANSMISSION-REAR HOUSING (May 15 2009 9:21:00.1460 AM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1011 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 586719 | [3] | PLUG | LEC Superseded by part number: 75323268 |
| 2. | 586720 | [1] | PLUG | LEC |
| 3. | 587045 | [1] | DIPSTICK | LEC Superseded by part number: 79111260 |
| 4. | 590851 | [2] | SEAL,100mm ID x 130mm OD x 12mm Thk | LECSEAL |
| 5. | 4962648 | [1] | COVER | LEC |
| 6. | 4968762 | [2] | DOWEL | LEC |
| 7. | 10119040 | [2] | PLUG,M27 x 2 x 20, Brass | LEC |
| 8. | 10269750 | [5] | PLUG | MKT.18X1.5X11 |
| 9. | 10297085 | [1] | GASKET,2mm Thk | MKTGASKET, 40.3X48 |
| 10. | 10306371 | [1] | PLUG | MOD.40X1.5X13 Superseded by part number: 10306311 |
| 11. | 14238034 | [2] | SCREW,Hex, M8 x 20mm, Cl 10.9 | LEC Superseded by part number: 14238030 |
| 12. | 14323611 | [3] | PLUG | LEC.18X1.5X21 |
| 13. | 14324801 | [2] | PLUG | MKT.12X1.5X13 Superseded by part number: 16997211 |
| 14. | 14330104 | [1] | PLUG,M38, Tapered | JES.38 |
| 15. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 16. | 14496731 | [10] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 17. | 15540531 | [10] | SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd | IMOBOLT, Hex, M12 x 1.25 x 35, 10.9, Full Thd Superseded by part number: 75224970, 86642438 |
| 18. | 15970731 | [3] | BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd | LEC |
| 19. | 79087362 | [1] | BOX | LECREAR HOUSING Superseded by part number: 79108738 |
| 20. | 76007926 | [2] | BEARING HOUSING | LECCASE |
| 21. | 79050904 | [2] | WASHER | LEC |
| 22. | 79087779 | [1] | COVER | LEC |
| 24. | 73156850 | [2] | PLATE | NH |
| 23. | 14438185 | [2] | O-RING,24mm ID x 3mm | JES24MM ID x 3.0 Thk |
