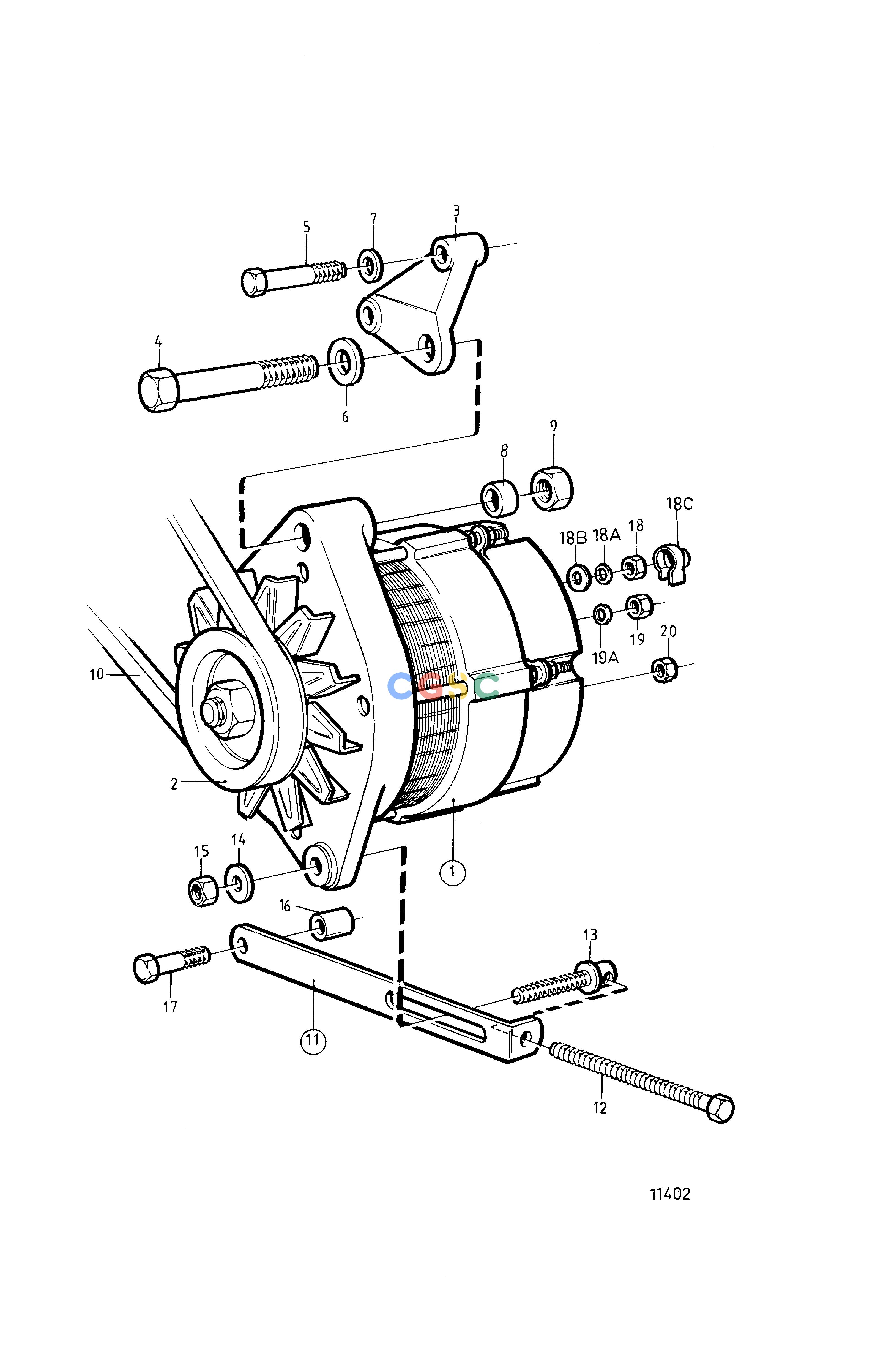

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BElectrical SystemAlternator and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
639 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872018
|
[1] |
Alternator
|
For 12 voltage electric system.
|
| 1. |
872926
|
[1] |
Alternator
|
For 12 voltage electric system., 14V 50A
|
| 2. |
841813
|
[1] |
Pulley
|
|
| 3. |
860666
|
[1] |
Bracket
|
|
| 4. |
959804
|
[1] |
Hexagon screw
|
L=127mm
|
| 5. |
965180
|
[1] |
Flange screw
|
L=60mm
|
| 5. |
965183
|
[1] |
Flange screw
|
L=90mm
|
| 6. |
941909
|
[1] |
Spring washer
|
|
| 7. |
941907
|
[2] |
Spring washer
|
|
| 8. |
860699
|
[1] |
Spacer sleeve
|
|
| 9. |
950375
|
[1] |
Lock nut
|
|
| 10. |
977542
|
[1] |
V-belt
|
|
| 11. |
860694
|
[1] |
Tensioner
|
|
| 12. |
1336962
|
[1] |
Adjusting screw
|
|
| 13. |
1378955
|
[1] |
Lock screw
|
|
| 14. |
941907
|
[1] |
Spring washer
|
|
| 15. |
945408
|
[1] |
Flange nut
|
|
| 16. |
843075
|
[1] |
Spacer sleeve
|
|
| 17. |
965183
|
[1] |
Flange screw
|
|
| 18. |
955781
|
[1] |
Hexagon nut
|
M6 (b+)
|
| 18A. |
941906
|
[1] |
Spring washer
|
|
| 18B. |
960140
|
[1] |
Washer
|
|
| 18C. |
1234326
|
[1] |
Protecting casing
|
|
| 19. |
965483
|
[1] |
Flange nut
|
M5 (d+)
|
| 19A. |
941905
|
[1] |
Spring washer
|
|
| 20. |
955779
|
[1] |
Hexagon nut
|
M4 (w)
|
