沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BElectrical SystemElectrical Box and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
940 次

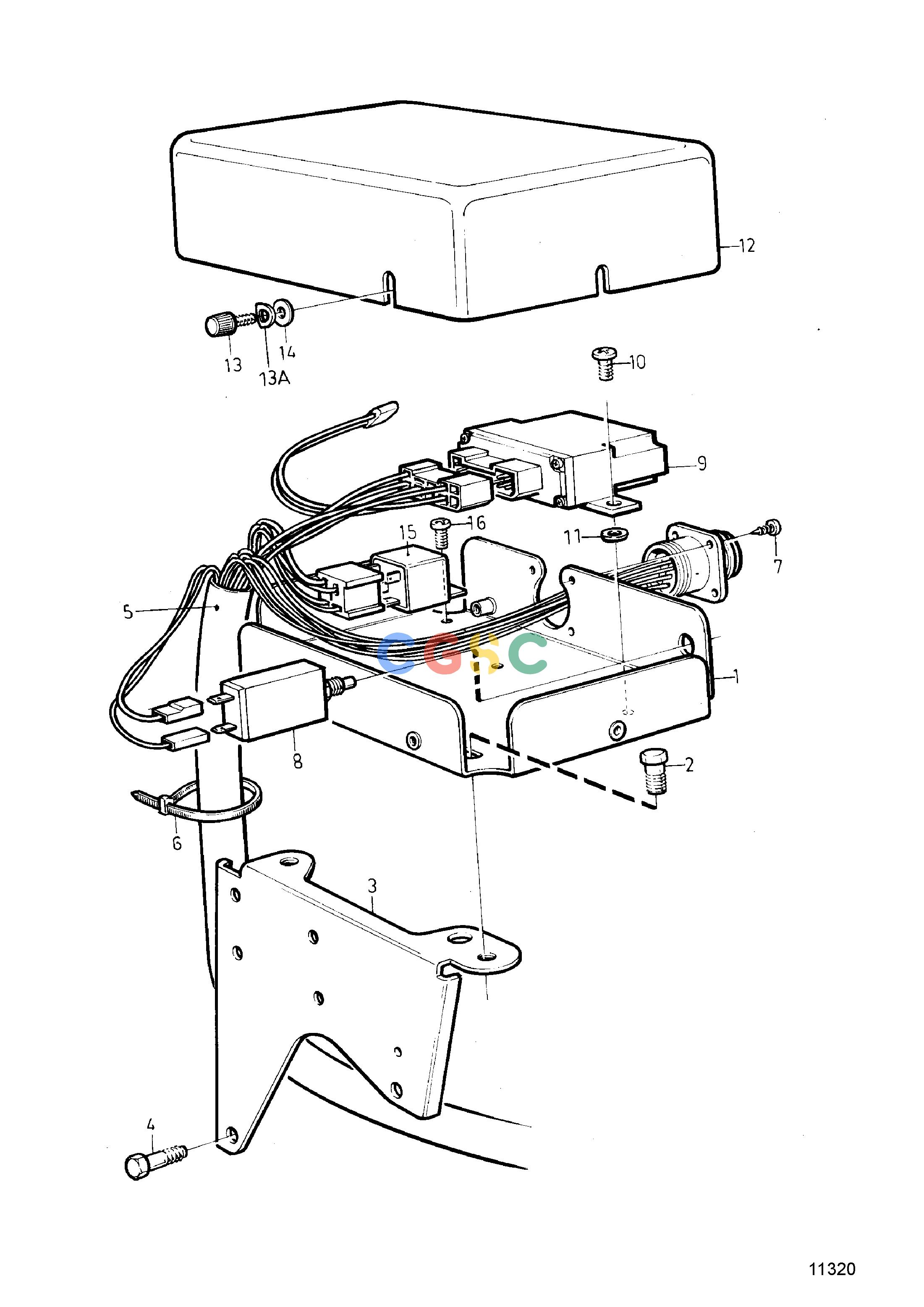

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860417
|
[1] |
Bracket
|
|
| 2. |
965175
|
[2] |
Flange screw
|
|
| 3. |
860611
|
[1] |
Bracket
|
|
| 4. |
947760
|
[1] |
Flange screw
|
L=40mm
|
| 4. |
948217
|
[1] |
Flange screw
|
L=45mm
|
| 5. |
860418
|
[1] |
Cable harness
|
SN-2204202416
|
| 5. |
872617
|
[1] |
Cable harness
|
SN2204202417-
|
| 6. |
948210
|
[1] |
Cable tie
|
|
| 7. |
955119
|
[4] |
Cross recessed screw
|
|
| 8. |
966689
|
[1] |
Fuse
|
|
| 9. |
860434
|
[1] |
Rotation speed relay, revolution
|
SN-2204202416
|
| 9. |
872616
|
[1] |
Rotation speed relay, revolution
|
SN2204202417-
|
| 10. |
955138
|
[2] |
Cross recessed screw
|
|
| 11. |
955893
|
[1] |
Washer
|
Late type
|
| 12. |
860779
|
[1] |
Cover
|
|
| 13. |
846736
|
[3] |
Lock screw
|
|
| 13A. |
941904
|
[3] |
Spring washer
|
|
| 14. |
960137
|
[3] |
Washer
|
|
| 15. |
860339
|
[2] |
Relay
|
12V 50A
|
| 16. |
955138
|
[2] |
Cross recessed screw
|
|
