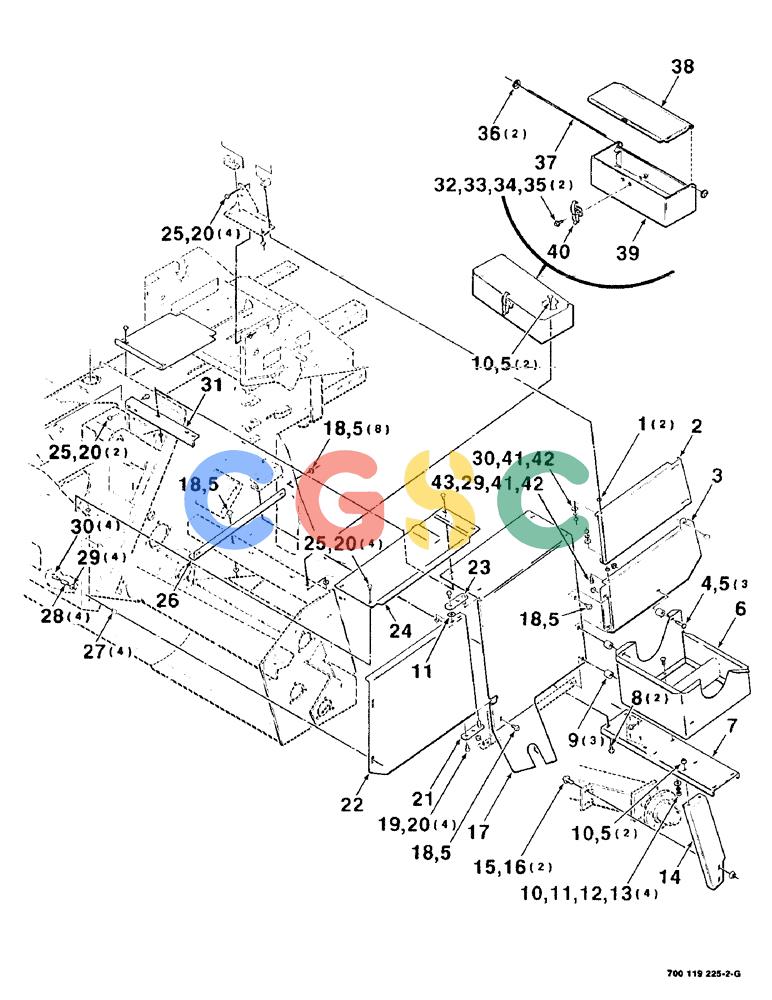

| 1. |
700112261
|
[2] |
BUSHING
|
CAS
|
| 2. |
700112255
|
[1] |
DOOR
|
CAS
- rear, left
|
| 3. |
700112266
|
[1] |
PANEL
|
HFI
- lower rear, left
|
| 4. |
111-361
|
[3] |
CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5 Superseded by part number: 9706752
|
| 5. |
231-5146
|
[18] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 6. |
700119485
|
[1] |
CONTAINER
|
CAS
BOX - wire, left
|
| 7. |
700119481
|
[1] |
CHANNEL
|
CAS
- mounting, left
|
| 8. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HFSS Superseded by part number: 72187187, 255918
|
| 9. |
700102344
|
[3] |
BUSHING
|
CAS
SPACER
|
| 10. |
111-360
|
[8] |
CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5 Superseded by part number: 280430
|
| 11. |
496-11041
|
[5] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 12. |
492-11038
|
[4] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 13. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 14. |
700119483
|
[1] |
STRUT
|
CAS
- left
|
| 15. |
409-7820
|
[2] |
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
|
CAS
Superseded by part number: 84209
|
| 16. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 17. |
700119381
|
[1] |
PANEL
|
CAS
- center, left
|
| 19. |
256873
|
[4] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 20. |
231-5145
|
[14] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 21. |
700112262
|
[1] |
SUPPORT
|
CAS
- pivot, lower
|
| 22. |
700112254
|
[1] |
DOOR
|
CAS
- front
|
| 23. |
700112264
|
[1] |
SUPPORT
|
CAS
- pivot, upper
|
| 24. |
700119386
|
[1] |
SHIELD
|
CAS
- front Superseded by part number: 700136642
|
| 25. |
121-115
|
[10] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 26. |
700119387
|
[1] |
ANGLE
|
CAS
Superseded by part number: 700136643
|
| 27. |
7894967
|
[4] |
HANDLE
|
CAS
- latch
|
| 28. |
7758212
|
[4] |
SPRING
|
CAS
- compression
|
| 29. |
496-21034
|
[6] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 30. |
7894975
|
[4] |
CLIP
|
CAS
- latch
|
| 31. |
700112272
|
[1] |
ANGLE
|
HFI
|
| 32. |
463-3128
|
[2] |
SCREW,Hex Wash Hd, #12-24 x 1/2"
|
CAS
#12-24 X 1/2 HWHMS
|
| 33. |
27616R1
|
[2] |
WASHER,.281" x 5/8" x .075", HDN
|
IH
#12 PLAIN WASHER
|
| 34. |
492-11012
|
[2] |
LOCK WASHER,#12
|
CAS
WASHER, LOCK, #12
|
| 35. |
225-14112
|
[2] |
NUT,#12-24
|
CAS
#12-24 H GR2 Superseded by part number: 86512084
|
| 36. |
700707858
|
[2] |
SNAP RING
|
CAS
RING - retainer
|
| 37. |
700115914
|
[1] |
PIN
|
CAS
- hinge
|
| 38. |
700115913
|
[1] |
LID
|
CAS
- tool box
|
| 39. |
700115910
|
[1] |
TOOL BOX
|
CAS
BOX - tool
|
| 40. |
700706849
|
[1] |
LATCH
|
CAS
- tool box
|
| 41. |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 42. |
425-105
|
[2] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 43. |
413-512
|
[1] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
C Hex, 5/16"-18 x 3/4", G5, Full Thd Superseded by part number: 72187196, 87872
|
