| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

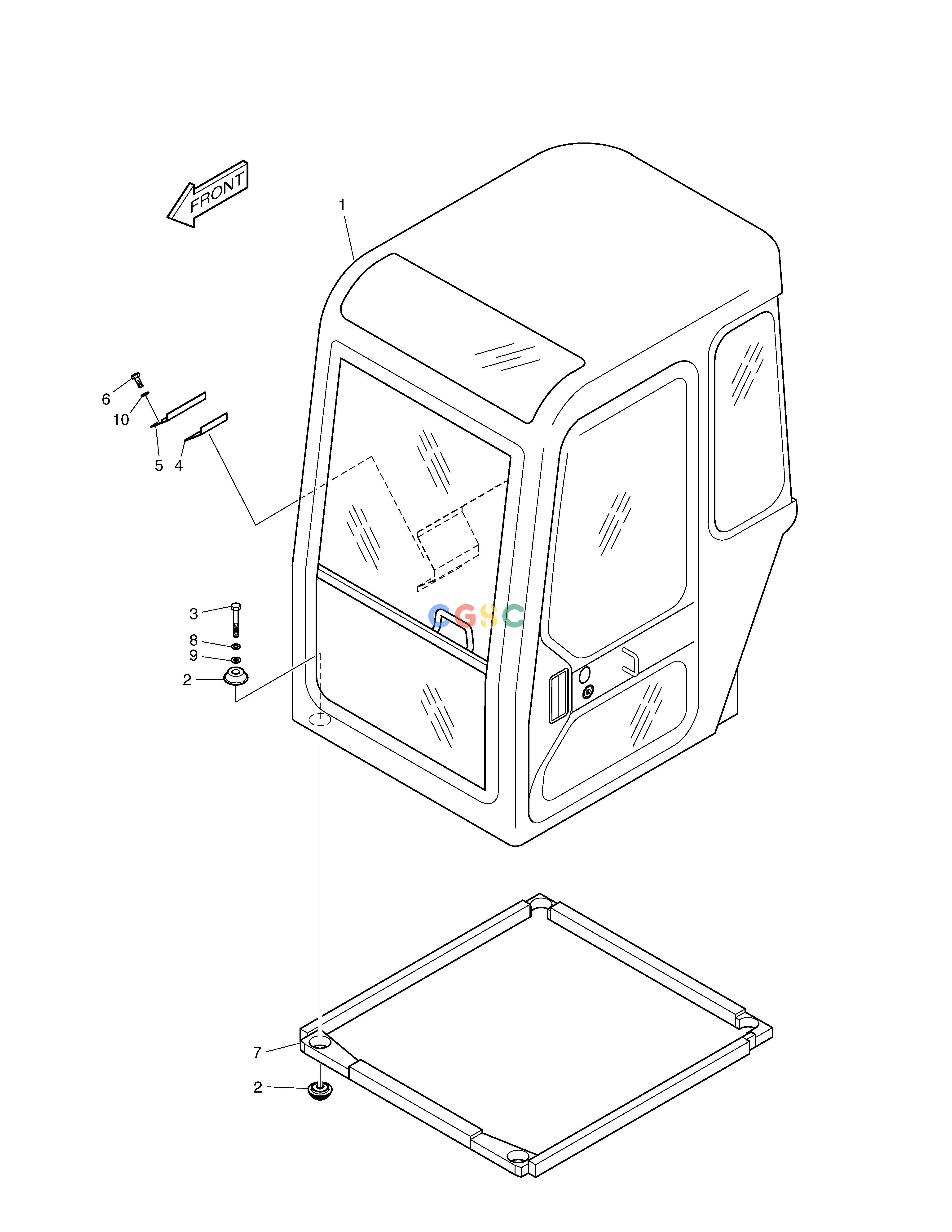

| -. | 622-00090C | [-] | CABIN ASS'Y | |
| 1. | 622-00088C | [1] | CABIN ASS'Y | |
| 10. | 2114-1898D5 | [4] | WASHER | |
| 2. | 854-10004 | [8] | RUBBER;MOUNTING | |
| 3. | S0561573 | [4] | BOLT M12X1.75X90 | |
| 4. | 160-00014A | [1] | RUBBER | |
| 5. | 621-00968A | [1] | COVER;FUEL TANK | |
| 6. | 2120-2166D6 | [4] | BOLT | |
| 7. | 161-00155 | [1] | SPONGE ASS'Y | |
| 8. | S5102703 | [4] | WASHER | |
| 9. | 2114-1058D73 | [4] | WASHER |
