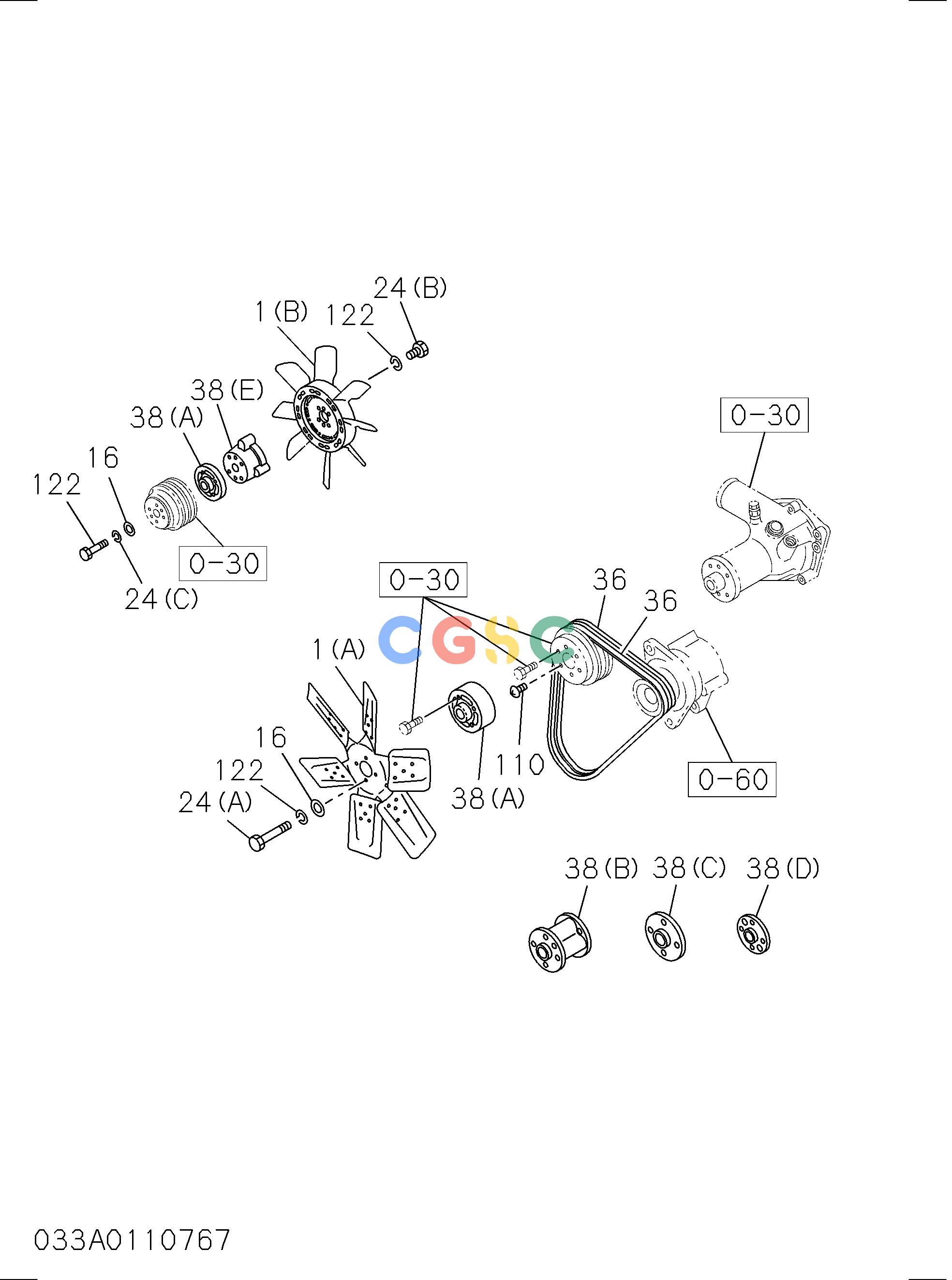

日立零件查询（CG45）FAN AND FAN BELT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 9136600460 | [1] | FAN; COOLING | D=500-6-SUCT-SP |
| 16. | 9091647080 | [4] | WASHER; PL,COOLING FAN | |
| 24(A). | 1090440721 | [4] | BOLT; FAN | M8X65 |
| 36. | 1136711430 | [1] | BELT; COOLING FAN | 2 PIECES SET,L=1226 |
| 36. | 1136711430 | [1] | BELT; COOLING FAN | 2 PIECES SET,L=1226 |
| 38(A). | 1136420250 | [1] | SPACER; FAN | T=43.0 |
| 68. | 9091505120 | [1] | WASHER; LK,ADJ PLATE,GEN | |
| 69. | 9091607120 | [1] | WASHER; PL,ADJ PLATE,GEN | |
| 69. | 9091607120 | [2] | WASHER; PL,ADJ PLATE,GEN | |
| 70. | 9991104120 | [1] | NUT; ADJ PLATE,GEN | |
| 71(A). | 0208012400 | [1] | BOLT; ADJ PLATE,GEN | C |
| 71(A). | 0208012500 | [1] | BOLT; ADJ PLATE,GEN | |
| 80(A). | 9136756330 | [1] | PLATE; ADJ | |
| 86. | 0500410250 | [1] | BOLT; ADJ | A |
| 86. | 0286810250 | [1] | BOLT; ADJ | |
| 122. | 9091505080 | [4] | WASHER; LK,FAN | ID=8.2 |
