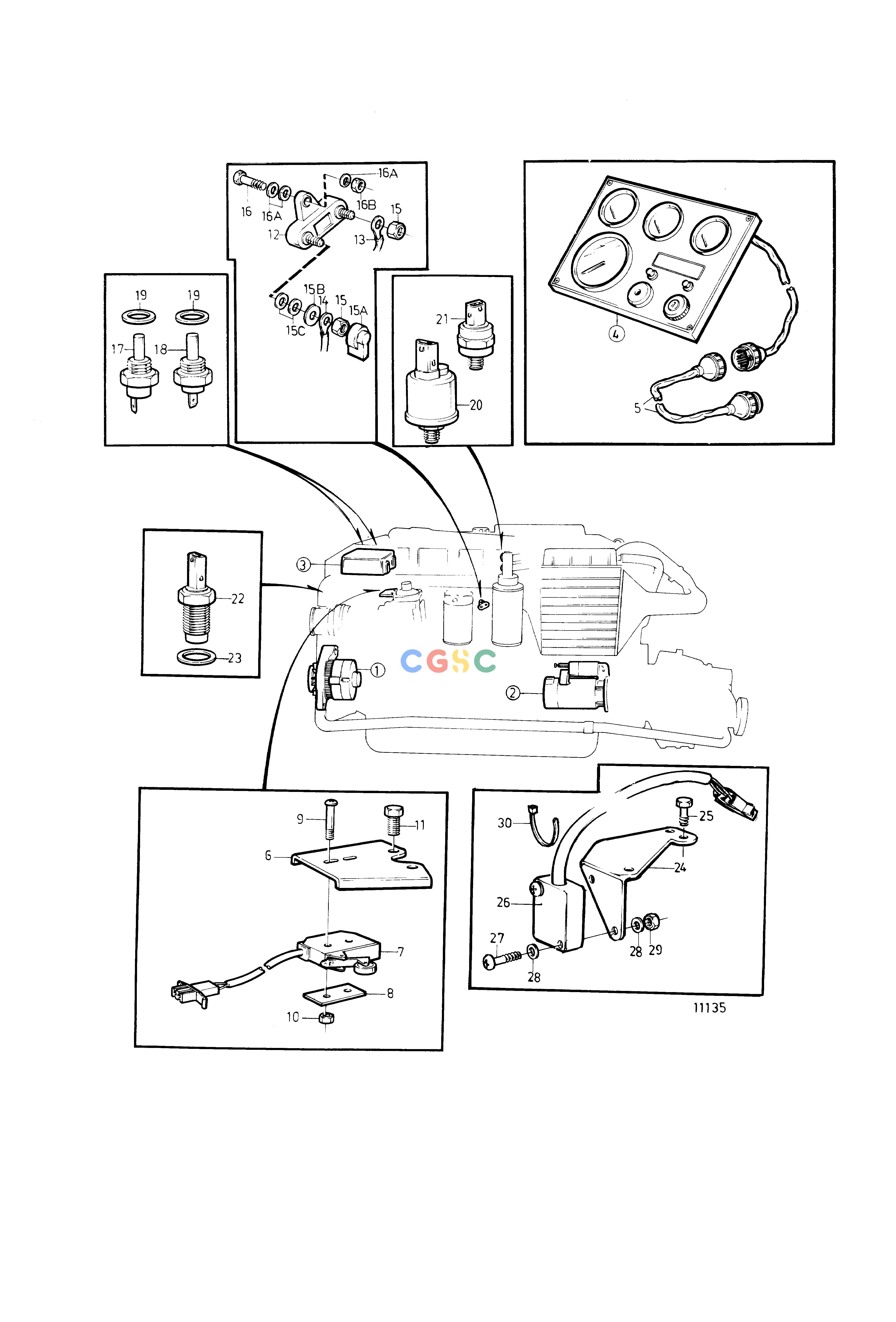

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BElectrical SystemElectrical System and Instruments: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7745930_034
|
|
alternator and installation comps
|
|
| 1. |
|
|
|
|
| 2. |
7745930_036
|
|
starter motor and installation comps
|
|
| 2. |
|
|
|
|
| 3. |
7745930_038
|
|
electrical box and installation comps
|
|
| 3. |
|
|
|
|
| 4. |
864040
|
[1] |
Instrument panel
|
|
| 5. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 5. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 5. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 6. |
860433
|
[1] |
Bracket
|
SN-2204202416
|
| 7. |
860435
|
[1] |
Microswitch
|
SN-2204202416
|
| 8. |
|
|
|
|
| 9. |
956050
|
[2] |
Cross recessed screw
|
|
| 10. |
955778
|
[2] |
Hexagon nut
|
|
| 11. |
965175
|
[2] |
Flange screw
|
|
| 12. |
856355
|
[1] |
Fuse
|
|
| 13. |
|
|
|
PT, see group 4A
|
| 14. |
|
|
|
PT, see group 4A
|
| 15. |
955781
|
[2] |
Hexagon nut
|
|
| 15A. |
1234326
|
[1] |
Protecting casing
|
|
| 15B. |
960140
|
[1] |
Washer
|
|
| 15C. |
955893
|
[2] |
Washer
|
|
| 16. |
947542
|
[1] |
Flange screw
|
|
| 16A. |
955893
|
[3] |
Washer
|
|
| 16B. |
945407
|
[1] |
Flange nut
|
|
| 17. |
833927
|
[1] |
Thermo monitor
|
93°C
|
| 18. |
827151
|
[1] |
Temperature sensor
|
40-120°C
|
| 18. |
840074
|
[1] |
Temperature sensor
|
For flybridge installations., Alt, see group 9
|
| 19. |
957181
|
[2] |
Gasket
|
|
| 20. |
862155
|
[1] |
Oil pressure sensor
|
0-10 bar
|
| 20. |
862568
|
[1] |
Oil pressure sensor
|
For flybridge installations., Alt, see group 9
|
| 21. |
863169
|
[1] |
Pressure monitor
|
0,7 bar
|
| 22. |
862251
|
[1] |
Tachometer sensor
|
For revolution relay
|
| 23. |
957181
|
[1] |
Gasket
|
|
| 24. |
860970
|
[1] |
Bracket
|
SN2204202417-
|
| 25. |
965175
|
[1] |
Flange screw
|
|
| 26. |
872597
|
[1] |
Position sensor
|
SN2204202417-
|
| 27. |
956050
|
[2] |
Cross recessed screw
|
|
| 28. |
955890
|
[4] |
Washer
|
|
| 29. |
966650
|
[2] |
Lock nut
|
|
| 30. |
948210
|
[1] |
Cable tie
|
|
