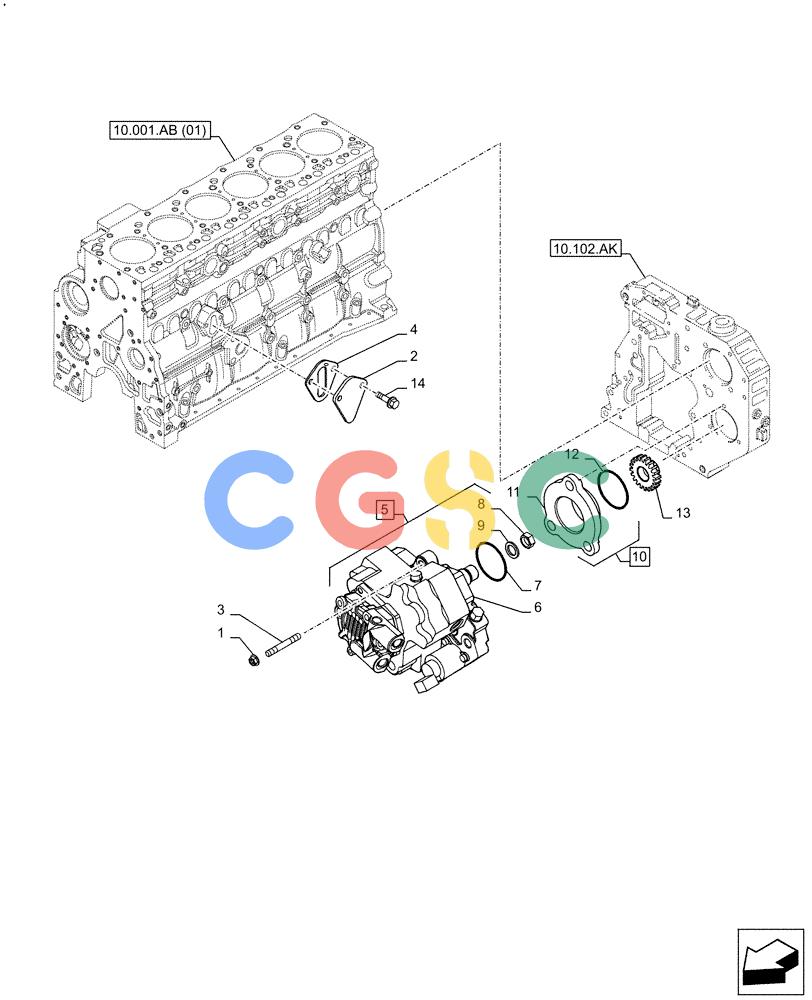

神钢零件查询(F4HFE613B B006) - ENGINE 5801731918 - 47519640 (2/14-) (10.218.AQ) - FUEL INJECTION PUMP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899003 | [3] | FLANGE NUT,M8 x 1.25 | TOR Superseded by part number: 9804277 |
| 2. | 4896952 | [1] | COVER | TOR |
| 3. | 2852488 | [3] | STUD,M8 x 1,25 x 50mm | SM Superseded by part number: 16747224 |
| 4. | 4890700 | [1] | GASKET,1.21mm Thk | TOR |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPump, Incl in 5 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONO-ring, Incl in 5 |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONNut, Incl in 5 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSping washer, Incl in 5 |
| 10. | 2852804 | [1] | HUB | TORAssy, Incl 11, 12 Superseded by part number: 504041278 |
| 12. | 2852805 | [1] | O-RING,2.6mm Thk x 72.6mm ID | TOR Superseded by part number: 17285381 |
| 13. | 4893389 | [1] | DRIVEN GEAR,27T | TOR |
| 14. | 2852234 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
