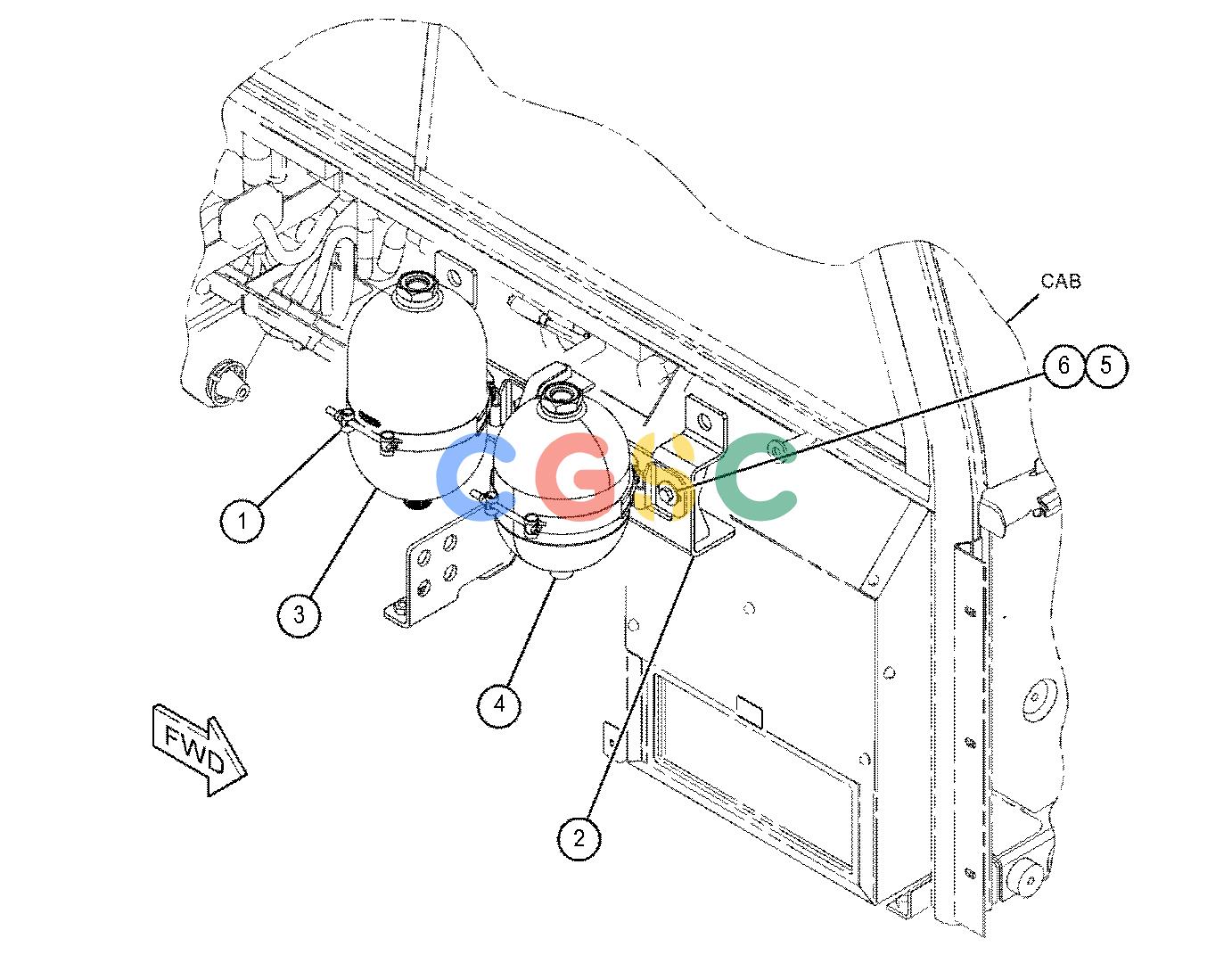

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 255-6195 | [2] | CLAMP AS | |
| 2. | 488-5322 | [1] | PLATE AS | |
| 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | ||
| 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | ||
| 3. | 333-4731Y | [1] | ACCUMULATOR GP-BRAKE(CHARGED) | |
| 4. | 236-7794Y | [1] | ACCUMULATOR GP-BRAKE(CHARGED) | |
| 5. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 6. | 7X-0579 | [4] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
