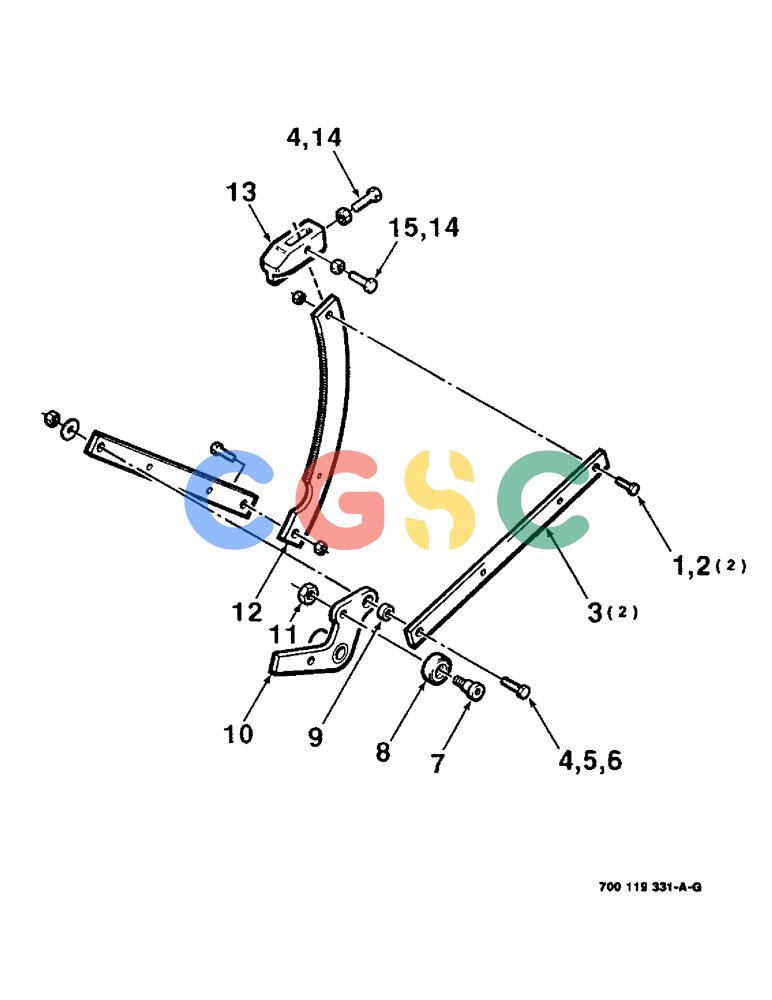

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (6-06) - SPACER CAM ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-512
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
C Hex, 5/16"-18 x 3/4", G5, Full Thd Superseded by part number: 72187196, 87872
|
| 2. |
230-4215
|
[2] |
NUT,5/16"-18, GA
|
CAS
5/16-18 HCLN
|
| 3. |
700108471
|
[2] |
STRAP
|
CAS
- trip (S.N. CFH0044501 thru CFH0044829)
|
| . . |
700121071
|
[2] |
STRAP
|
CAS
- trip (S.N. CFH0044830 and later)
|
| 4. |
413-620
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 5. |
496-11041
|
[1] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 6. |
230-4216
|
[1] |
LOCK NUT,3/8"-16, GA
|
CAS
3/8-16 HCLN Superseded by part number: 87039402
|
| 7. |
121-126
|
[1] |
STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"
|
CAS
SCREW, Hex Soc Hd, Shdr, 5/16"-18 x 3/8"
|
| 8. |
700119470
|
[1] |
ROLLER
|
CAS
- cam
|
| 9. |
6823769
|
[1] |
SPACER
|
CAS
|
| 10. |
700119468
|
[1] |
ARM
|
IH
- clutch
|
| 11. |
425-145
|
[1] |
JAM NUT,Jam, 5/16"-18, G5
|
CAS
Superseded by part number: 86637931
|
| 12. |
700108473
|
[1] |
CAM
|
IH
|
| 13. |
1661234
|
[1] |
CLAMP
|
IH
- stop
|
| 14. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 15. |
413-616
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
