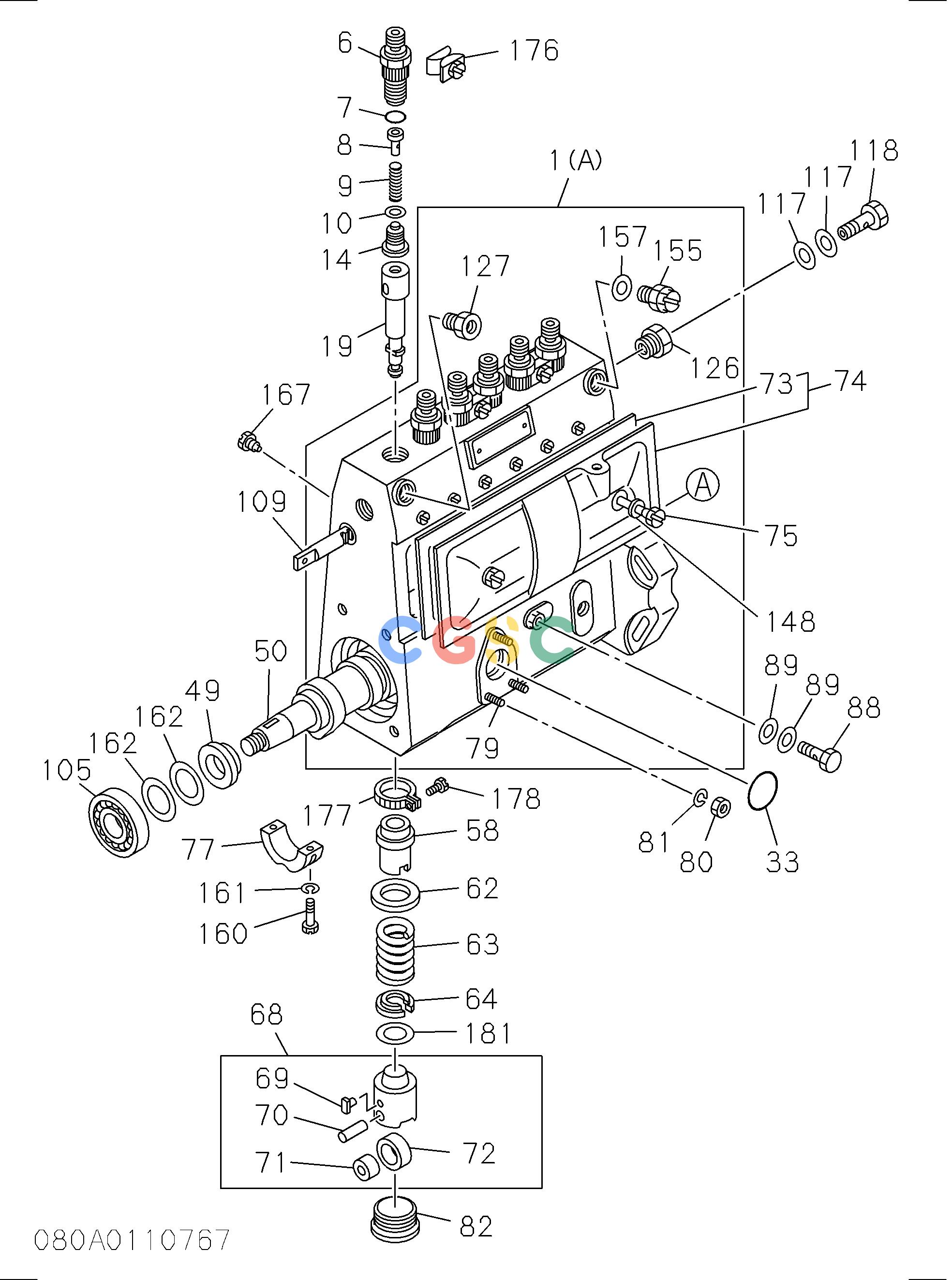

| 001. | 5156110250 | [1] | HOUSING; PUMP,FUEL INJ | |
| 001. | 5156110250 | [1] | HOUSING; PUMP,FUEL INJ | |
| 006. | 5156440100 | [6] | HOLDER; DELIVERY VLV,INJ PUMP | |
| 006. | 5156440100 | [6] | HOLDER; DELIVERY VLV,INJ PUMP | |
| 007. | 1096230520 | [6] | GASKET; HOLDER,DELIVERY VLV | |
| 007. | 1096230520 | [6] | GASKET; HOLDER,DELIVERY VLV | |
| 008. | 5156290450 | [6] | STOPPER; DELIVERY VLV,INJ PUMP | |
| 009. | 5156430010 | [6] | SPRING; DELIVERY VLV | |
| 009. | 5156430010 | [6] | SPRING; DELIVERY VLV | |
| 010. | 1156490010 | [6] | GASKET; DELIVERY VLV,INJ PUMP | |
| 010. | 1156490010 | [6] | GASKET; DELIVERY VLV,INJ PUMP | |
| 014. | 5156410110 | [6] | VALVE; DELIVERY,INJ PUMP | |
| 014. | 5156410110 | [6] | VALVE; DELIVERY,INJ PUMP | |
| 019. | 5156310070 | [6] | PLUNGER ASM; INJ PUMP | |
| 019. | 5156310070 | [6] | PLUNGER ASM; INJ PUMP | |
| 033. | 1096230130 | [1] | GASKET; FUEL FEED PUMP,INJ PUMP | |
| 033. | 1096230130 | [1] | GASKET; FUEL FEED PUMP,INJ PUMP | |
| 046. | 1156192430 | [1] | COVER; FRT,PUMP HSG | |
| 046. | 1156192430 | [1] | COVER; FRT,PUMP HSG | |
| 048. | 5156191560 | [1] | GASKET; FRT COVER TO HSG | |
| 048. | 5156191560 | [1] | GASKET; FRT COVER TO HSG | |
| 049. | 9812250470 | [1] | RING; FRT BRG,CM/SHF | |
| 049. | 9812250470 | [1] | RING; FRT BRG,CM/SHF | |
| 050. | 5156210160 | [1] | CAMSHAFT; INJ PUMP | |
| 050. | 5156210160 | [1] | CAMSHAFT; INJ PUMP | |
| 051. | 5156190490 | [1] | KEY; DRIVE GEAR,INJ PUMP | |
| 051. | 5196190490 | [1] | KEY; DRIVE GEAR,INJ PUMP | 16MM |
| 058. | 9812250580 | [6] | SLEEVE; CONT,INJ PUMP | |
| 058. | 9812250580 | [6] | SLEEVE; CONT,INJ PUMP | |
| 062. | 9812350150 | [6] | SEAT; PLUNGER SPRING,INJ PUMP | |
| 062. | 9812350150 | [6] | SEAT; PLUNGER SPRING,INJ PUMP | |
| 063. | 5156430090 | [6] | SPRING; PLUNGER,INJ PUMP | |
| 063. | 5156430090 | [6] | SPRING; PLUNGER,INJ PUMP | |
| 064. | 9812350210 | [6] | SEAT; PLUNGER SPRING LWR,INJ PUMP | |
| 064. | 9812350210 | [6] | SEAT; PLUNGER SPRING LWR,INJ PUMP | |
| 068. | 9812212230 | [6] | TAPPET; CM/SHF,INJ PUMP | |
| 068. | 9812212230 | [6] | TAPPET; CM/SHF,INJ PUMP | |
| 069. | 5156190410 | [6] | GUIDE; TAPPET,INJ PUMP | |
| 069. | 5156190410 | [6] | GUIDE; TAPPET,INJ PUMP | |
| 070. | 9812212200 | [6] | PIN; TAPPET ROLLER,INJ PUMP | |
| 070. | 9812222200 | [6] | PIN; TAPPET ROLLER,INJ PUMP | |
| 071. | 1156290010 | [6] | BUSHING; TAPPET ROLLER,INJ PUMP | |
| 071. | 1156290010 | [6] | BUSHING; TAPPET ROLLER,INJ PUMP | |
| 072. | 1156220030 | [6] | ROLLER; TAPPET,INJ PUMP | |
| 072. | 1156220030 | [6] | ROLLER; TAPPET,INJ PUMP | |
| 073. | 1157299600 | [1] | GASKET; COVER TO HSG | |
| 073. | 1157299600 | [1] | GASKET; COVER TO HSG | |
| 074. | 1156120500 | [1] | COVER; HSG,INJ PUMP | |
| 074. | 1156120500 | [1] | COVER; HSG,INJ PUMP | |
| 075. | 1156190030 | [2] | SCREW; COVER TO HSG | |
| 075. | 1156190030 | [2] | SCREW; COVER TO HSG | |
| 077. | 1156190330 | [1] | BEARING; CM/SHF CENTER,INJ PUMP | |
| 077. | 1156190330 | [1] | BEARING; CM/SHF CENTER,INJ PUMP | |
| 079. | 9812151150 | [3] | STUD; FUEL FEED PUMP TO HSG | |
| 079. | 9812151150 | [3] | STUD; FUEL FEED PUMP TO HSG | |
| 080. | 9091104060 | [3] | NUT; FUEL FEED PUMP FIX | M6 |
| 080. | 9091104060 | [3] | NUT; FUEL FEED PUMP FIX | M6 |
| 081. | 9091505060 | [3] | WASHER; LK,FUEL FEED PUMP FIX | ID=6 |
| 081. | 9091505060 | [3] | WASHER; LK,FUEL FEED PUMP FIX | ID=6 |
| 082. | 5156191360 | [6] | PLUG; HSG,INJ PUMP | |
| 082. | 5156191360 | [6] | PLUG; HSG,INJ PUMP | |
| 088. | 1156190920 | [1] | BOLT; EYE,OIL FEED,INJ PUMP | |
| 088. | 1156190920 | [1] | BOLT; EYE,OIL FEED,INJ PUMP | |
| 089. | 1156190930 | [2] | GASKET; OIL FEED BOLT,INJ PUMP | |
| 089. | 1157190930 | [2] | GASKET; OIL FEED BOLT,INJ PUMP | |
| 105. | 5098000380 | [1] | BEARING; CM/SHF RR,INJ PUMP | NTN |
| 105. | 9000906770 | [1] | BEARING; CM/SHF RR,INJ PUMP | NSK |
| 105. | 5098000380 | [1] | BEARING; CM/SHF RR,INJ PUMP | NTN |
| 105. | 9000906770 | [1] | BEARING; CM/SHF RR,INJ PUMP | NSK |
| 107. | 5156290150 | | SHIM; RR BEARING,CM/SHF | T=0.10 |
| 107. | 5156290160 | | SHIM; RR BEARING,CM/SHF | T=0.12 |
| 107. | 5156290170 | | SHIM; RR BEARING,CM/SHF | T=0.14 |
| 107. | 5156290180 | | SHIM; RR BEARING,CM/SHF | T=0.16 |
| 107. | 5156290190 | | SHIM; RR BEARING,CM/SHF | T=0.18 |
| 107. | 5156290200 | | SHIM; RR BEARING,CM/SHF | T=0.50 |
| 107. | 9812250330 | | SHIM; RR BEARING,CM/SHF | T=0.30 |
| 107. | 1156390880 | | SHIM; RR BEARING,CM/SHF | T=2.40 |
| 107. | 5156190390 | | SHIM; RR BEARING,CM/SHF | T=0.70 |
| 107. | 5156290150 | | SHIM; RR BEARING,CM/SHF | T=0.10 |
| 107. | 5156290160 | | SHIM; RR BEARING,CM/SHF | T=0.12 |
| 107. | 5156290170 | | SHIM; RR BEARING,CM/SHF | T=0.14 |
| 107. | 5156290180 | | SHIM; RR BEARING,CM/SHF | T=0.16 |
| 107. | 5156290190 | | SHIM; RR BEARING,CM/SHF | T=0.18 |
| 107. | 5156290200 | | SHIM; RR BEARING,CM/SHF | T=0.50 |
| 107. | 5156290380 | | SHIM; RR BEARING,CM/SHF | T=1.00 |
| 107. | 9812250330 | | SHIM; RR BEARING,CM/SHF | T=0.30 |
| 107. | 5156290900 | | SHIM; RR BEARING,CM/SHF | T=1.40 |
| 107. | 1156390880 | | SHIM; RR BEARING,CM/SHF | T=2.40 |
| 109. | 5156370030 | [1] | RACK; CONT,INJ PUMP | |
| 109. | 1156370020 | [1] | RACK; CONT,INJ PUMP | |
| 109. | 5156370030 | [1] | RACK; CONT,INJ PUMP | |
| 114. | 9000906770 | [1] | BEARING; CM/SHF FRT,INJ PUMP | NSK |
| 114. | 5098000380 | [1] | BEARING; CM/SHF FRT,INJ PUMP | NTN |
| 114. | 9000906770 | [1] | BEARING; CM/SHF FRT,INJ PUMP | NSK |
| 114. | 5098000380 | [1] | BEARING; CM/SHF FRT,INJ PUMP | NTN |
| 117. | 1157590120 | [2] | GASKET; EYE BOLT,INJ PUMP | |
| 117. | 1157590120 | [2] | GASKET; EYE BOLT,INJ PUMP | |
| 118. | 1157590110 | [1] | BOLT; EYE,FUEL INL,INJ PUMP | |
| 118. | 1157590110 | [1] | BOLT; EYE,FUEL INL,INJ PUMP | |
| 126. | 9812350170 | [1] | ADAPTER; EYE BOLT,PUMP HSG | |
| 126. | 9812350170 | [1] | ADAPTER; EYE BOLT,PUMP HSG | |
| 127. | 5156190440 | [1] | ADAPTER; FUEL PIPE | |
| 127. | 5156190440 | [1] | ADAPTER; FUEL PIPE | |
| 130. | 9019006140 | [4] | SCREW; FRT COVER TO HSG | M6X14 W/LK WASHER |
| 130. | 9019006140 | [4] | SCREW; FRT COVER TO HSG | M6X14 W/LK WASHER |
| 148. | 9812151440 | [2] | GASKET; COVER FIX BOLT | |
| 148. | 9812151440 | [2] | GASKET; COVER FIX BOLT | |
| 155. | 1156190240 | [1] | BOLT; AIR BLEED,INJ PUMP | |
| 155. | 1156190240 | [1] | BOLT; AIR BLEED,INJ PUMP | |
| 157. | 8941445880 | [1] | GASKET; BLEED BOLT,INJ PUMP | |
| 157. | 8941445880 | [1] | GASKET; BLEED BOLT,INJ PUMP | |
| 159. | 9812250470 | [1] | RING; RR BEARING,CM/SHF,INJ PUMP | |
| 159. | 9812250470 | [1] | RING; RR BEARING,CM/SHF,INJ PUMP | |
| 160. | 9884100660 | [2] | SCREW; CENTER BRG,INJ PUMP | |
| 160. | 9884100660 | [2] | SCREW; CENTER BRG,INJ PUMP | |
| 161. | 9812250430 | [2] | GASKET; SCREW,CENTER BRG | |
| 161. | 9812250430 | [2] | GASKET; SCREW,CENTER BRG | |
| 162. | 5156190380 | | SHIM; FRT BRG,CM/SHF | T=1.00 |
| 162. | 5156190390 | | SHIM; FRT BRG,CM/SHF | T=0.70 |
| 162. | 1156190900 | | SHIM; FRT BRG,CM/SHF | T=1.40 |
| 162. | 5156290150 | | SHIM; FRT BRG,CM/SHF | T=0.10 |
| 162. | 5156290160 | | SHIM; FRT BRG,CM/SHF | T=0.12 |
| 162. | 5156290170 | | SHIM; FRT BRG,CM/SHF | T=0.14 |
| 162. | 5156290180 | | SHIM; FRT BRG,CM/SHF | T=0.16 |
| 162. | 5156290190 | | SHIM; FRT BRG,CM/SHF | T=0.18 |
| 162. | 5156290200 | | SHIM; FRT BRG,CM/SHF | T=0.50 |
| 162. | 5156290210 | | SHIM; FRT BRG,CM/SHF | T=0.30 |
| 162. | 5156290380 | | SHIM; FRT BRG,CM/SHF | T=1.00 |
| 162. | 1156390880 | | SHIM; FRT BRG,CM/SHF | T=2.40 |
| 162. | 9812250330 | | SHIM; FRT BRG,CM/SHF | T=0.30 |
| 162. | 5156290900 | | SHIM; FRT BRG,CM/SHF | T=1.40 |
| 162. | 5156290380 | | SHIM; FRT BRG,CM/SHF | T=1.00 |
| 162. | 5156190390 | | SHIM; FRT BRG,CM/SHF | T=0.70 |
| 162. | 1156390880 | | SHIM; FRT BRG,CM/SHF | T=2.40 |
| 162. | 5156290150 | | SHIM; FRT BRG,CM/SHF | T=0.10 |
| 162. | 5156290160 | | SHIM; FRT BRG,CM/SHF | T=0.12 |
| 162. | 5156290170 | | SHIM; FRT BRG,CM/SHF | T=0.14 |
| 162. | 5156290180 | | SHIM; FRT BRG,CM/SHF | T=0.16 |
| 162. | 5156290190 | | SHIM; FRT BRG,CM/SHF | T=0.18 |
| 162. | 5156290200 | | SHIM; FRT BRG,CM/SHF | T=0.50 |
| 162. | 9812250330 | | SHIM; FRT BRG,CM/SHF | T=0.30 |
| 162. | 5156290900 | | SHIM; FRT BRG,CM/SHF | T=1.40 |
| 167. | 1156390030 | [1] | BOLT; CONT RACK,INJ PUMP | |
| 167. | 1156390030 | [1] | BOLT; CONT RACK,INJ PUMP | |
| 176. | 5156250010 | [3] | PLATE; LK,DELIVERY VLV HOLDER | |
| 176. | 5156490160 | [3] | PLATE; LK,DELIVERY VLV HOLDER | |
| 176. | 5156250010 | [3] | PLATE; LK,DELIVERY VLV HOLDER | |
| 177. | 9812250570 | [6] | PINION; CONT SLEEVE,INJ PUMP | |
| 177. | 9812250570 | [6] | PINION; CONT SLEEVE,INJ PUMP | |
| 178. | 9812350030 | [6] | SCREW; PINION,INJ PUMP | |
| 178. | 9812350030 | [6] | SCREW; PINION,INJ PUMP | |
| 181. | 5156190010 | | SHIM; TAPPET,INJ PUMP | T=0.60 |
| 181. | 5156190020 | | SHIM; TAPPET,INJ PUMP | T=0.70 |
| 181. | 5156190030 | | SHIM; TAPPET,INJ PUMP | T=0.80 |
| 181. | 5156190040 | | SHIM; TAPPET,INJ PUMP | T=0.90 |
| 181. | 5156190050 | | SHIM; TAPPET,INJ PUMP | T=1.00 |
| 181. | 5156190070 | | SHIM; TAPPET,INJ PUMP | T=1.10 |
| 181. | 5156190080 | | SHIM; TAPPET,INJ PUMP | T=1.20 |
| 181. | 5156190090 | | SHIM; TAPPET,INJ PUMP | T=1.30 |
| 181. | 5156191080 | | SHIM; TAPPET,INJ PUMP | T=1.35 |
| 181. | 5156190100 | | SHIM; TAPPET,INJ PUMP | T=1.40 |
| 181. | 5156191090 | | SHIM; TAPPET,INJ PUMP | T=1.45 |
| 181. | 5156191060 | | SHIM; TAPPET,INJ PUMP | T=1.50 |
| 181. | 5156191100 | | SHIM; TAPPET,INJ PUMP | T=1.55 |
| 181. | 5156191070 | | SHIM; TAPPET,INJ PUMP | T=1.60 |
| 181. | 5156190110 | | SHIM; TAPPET,INJ PUMP | T=0.55 |
| 181. | 5156190120 | | SHIM; TAPPET,INJ PUMP | T=0.65 |
| 181. | 5156190130 | | SHIM; TAPPET,INJ PUMP | T=0.75 |
| 181. | 5156190150 | | SHIM; TAPPET,INJ PUMP | T=0.85 |
| 181. | 5156190250 | | SHIM; TAPPET,INJ PUMP | T=0.20 |
| 181. | 5156190260 | | SHIM; TAPPET,INJ PUMP | T=0.25 |
| 181. | 5156190270 | | SHIM; TAPPET,INJ PUMP | T=0.35 |
| 181. | 5156190340 | | SHIM; TAPPET,INJ PUMP | T=0.30 |
| 181. | 5156190350 | | SHIM; TAPPET,INJ PUMP | T=0.40 |
| 181. | 5156190360 | | SHIM; TAPPET,INJ PUMP | T=0.50 |
| 181. | 9812350420 | | SHIM; TAPPET,INJ PUMP | T=0.95 |
| 181. | 9812350430 | | SHIM; TAPPET,INJ PUMP | T=1.05 |
| 181. | 9812350440 | | SHIM; TAPPET,INJ PUMP | T=1.15 |
| 181. | 9812350450 | | SHIM; TAPPET,INJ PUMP | T=1.25 |
| 181. | 5156190370 | | SHIM; TAPPET,INJ PUMP | T=0.45 |
| 181. | 5156190010 | | SHIM; TAPPET,INJ PUMP | T=0.60 |
| 181. | 5156190020 | | SHIM; TAPPET,INJ PUMP | T=0.70 |
| 181. | 5156190030 | | SHIM; TAPPET,INJ PUMP | T=0.80 |
| 181. | 5156190040 | | SHIM; TAPPET,INJ PUMP | T=0.90 |
| 181. | 5156190050 | | SHIM; TAPPET,INJ PUMP | T=1.00 |
| 181. | 5156190070 | | SHIM; TAPPET,INJ PUMP | T=1.10 |
| 181. | 5156190080 | | SHIM; TAPPET,INJ PUMP | T=1.20 |
| 181. | 5156190090 | | SHIM; TAPPET,INJ PUMP | T=1.30 |
| 181. | 5156191080 | | SHIM; TAPPET,INJ PUMP | T=1.35 |
| 181. | 5156190100 | | SHIM; TAPPET,INJ PUMP | T=1.40 |
| 181. | 5156191090 | | SHIM; TAPPET,INJ PUMP | T=1.45 |
| 181. | 5156191060 | | SHIM; TAPPET,INJ PUMP | T=1.50 |
| 181. | 5156191100 | | SHIM; TAPPET,INJ PUMP | T=1.55 |
| 181. | 5156191070 | | SHIM; TAPPET,INJ PUMP | T=1.60 |
| 181. | 5156190110 | | SHIM; TAPPET,INJ PUMP | T=0.55 |
| 181. | 5156190120 | | SHIM; TAPPET,INJ PUMP | T=0.65 |
| 181. | 5156190130 | | SHIM; TAPPET,INJ PUMP | T=0.75 |
| 181. | 5156190150 | | SHIM; TAPPET,INJ PUMP | T=0.85 |
| 181. | 5156190250 | | SHIM; TAPPET,INJ PUMP | T=0.20 |
| 181. | 5156190260 | | SHIM; TAPPET,INJ PUMP | T=0.25 |
| 181. | 5156190270 | | SHIM; TAPPET,INJ PUMP | T=0.35 |
| 181. | 5156190340 | | SHIM; TAPPET,INJ PUMP | T=0.30 |
| 181. | 5156190350 | | SHIM; TAPPET,INJ PUMP | T=0.40 |
| 181. | 5156190360 | | SHIM; TAPPET,INJ PUMP | T=0.50 |
| 181. | 5156190370 | | SHIM; TAPPET,INJ PUMP | T=0.45 |
| 181. | 9812350420 | | SHIM; TAPPET,INJ PUMP | T=0.95 |
| 181. | 9812350430 | | SHIM; TAPPET,INJ PUMP | T=1.05 |
| 181. | 9812350440 | | SHIM; TAPPET,INJ PUMP | T=1.15 |
| 181. | 9812350450 | | SHIM; TAPPET,INJ PUMP | T=1.25 |
