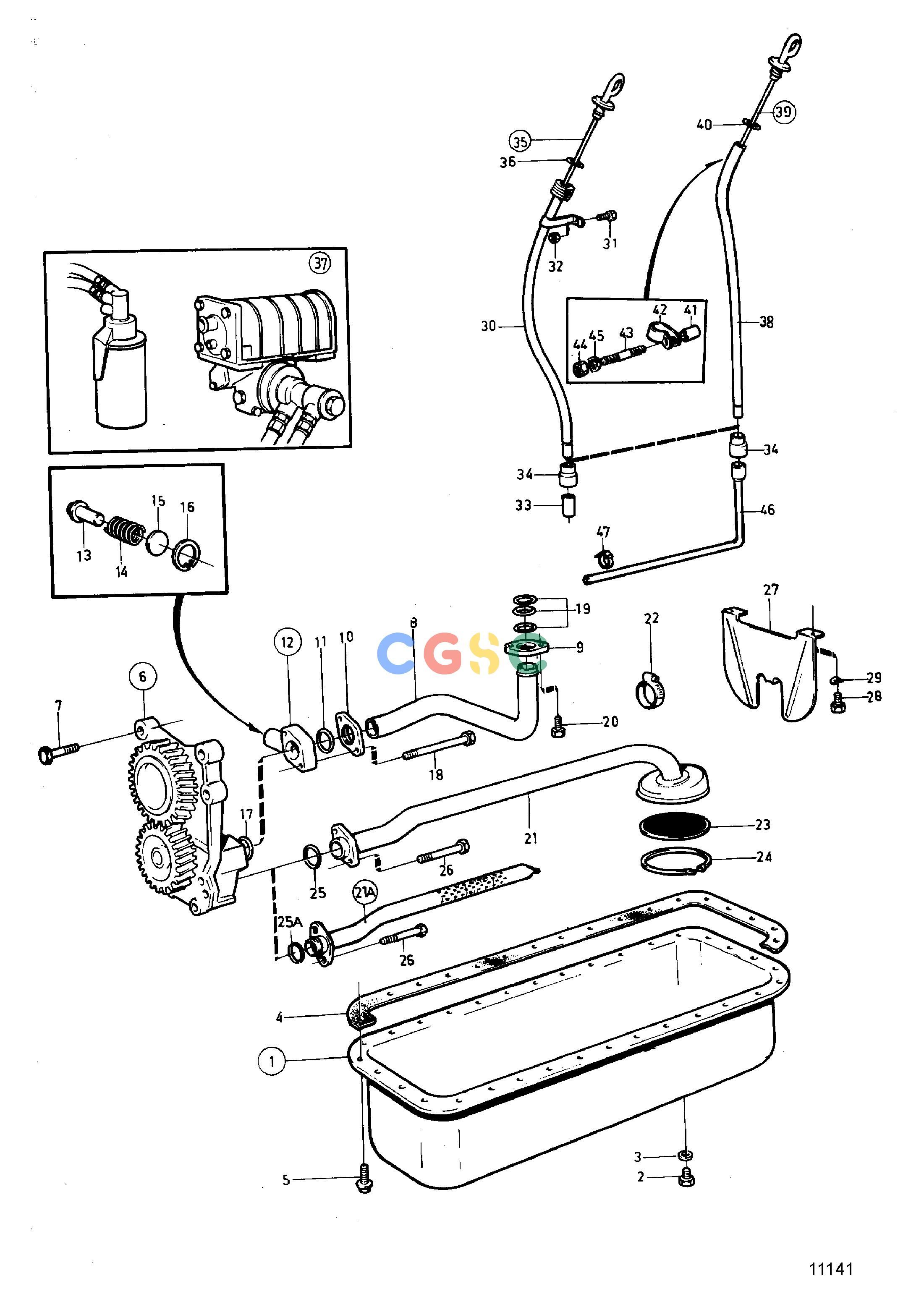

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BEngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861151
|
[1] |
Sump
|
|
| 2. |
948187
|
[1] |
Plug
|
Early type
|
| 3. |
18818
|
[1] |
Gasket
|
Early type
|
| 4. |
861251
|
[1] |
Gasket
|
(860685)
|
| 5. |
946440
|
[32] |
Flange screw
|
|
| 6. |
860721
|
[1] |
Oil pump
|
|
| 7. |
948217
|
[4] |
Flange screw
|
|
| 8. |
860821
|
[1] |
Delivery pipe
|
|
| 9. |
1542248
|
[1] |
Flange
|
|
| 10. |
1545272
|
[1] |
Flange
|
|
| 11. |
1545271
|
[1] |
Sealing ring
|
|
| 12. |
860790
|
[1] |
Reduction valve
|
|
| 13. |
471115
|
[1] |
Reduction valve
|
|
| 14. |
1542257
|
[1] |
Spring
|
|
| 15. |
948343
|
[1] |
Disc
|
|
| 16. |
914506
|
[1] |
Snap ring
|
|
| 17. |
469482
|
[1] |
Sealing ring
|
|
| 18. |
965184
|
[2] |
Flange screw
|
|
| 19. |
1542385
|
[3] |
Sealing ring
|
|
| 20. |
946173
|
[2] |
Flange screw
|
|
| 21. |
829491
|
[1] |
Suction pipe
|
Early type
|
| 21A. |
861064
|
[1] |
Suction pipe
|
Late type
|
| 22. |
943473
|
[1] |
Hose clamp
|
|
| 23. |
403483
|
[1] |
Wire gauze
|
|
| 24. |
118123
|
[1] |
Snap ring
|
|
| 25. |
949657
|
[1] |
O-ring
|
|
| 25A. |
469483
|
[1] |
Sealing ring
|
|
| 26. |
965217
|
[2] |
Flange screw
|
|
| 27. |
829492
|
[1] |
Baffle plate
|
For 829491
|
| 27. |
|
|
|
Late type
|
| 27. |
860999
|
[1] |
Baffle plate
|
For 861064
|
| 28. |
944926
|
[2] |
Flange screw
|
|
| 29. |
942385
|
[2] |
Disc spring
|
|
| 30. |
860522
|
[1] |
Tube
|
Replaced by pipe 861100,oil dipstick 861087, clamp 946384,spacer sleeve 843028 and stud bolt 953007.
|
| 31. |
965175
|
[1] |
Flange screw
|
|
| 32. |
945407
|
[1] |
Flange nut
|
|
| 33. |
829579
|
[1] |
Tube
|
|
| 34. |
843533
|
[1] |
Rubber hose
|
|
| 35. |
860621
|
[1] |
Oil dipstick
|
Replaced by pipe 861100,oil dipstick 861087, clamp 946384,spacer sleeve 843028 and stud bolt 953007.
|
| 36. |
949187
|
[1] |
O-ring
|
|
| 37. |
7745930_008
|
|
oil filter and installation comps
|
|
| 37. |
|
|
|
|
| 38. |
861100
|
[1] |
Tube
|
|
| 39. |
861087
|
[1] |
Dipstick
|
|
| 40. |
960155
|
[1] |
O-ring
|
|
| 41. |
843028
|
[1] |
Spacer sleeve
|
|
| 42. |
946834
|
[1] |
Clamp
|
|
| 43. |
953007
|
[1] |
Stud
|
See group 2B
|
| 44. |
971095
|
[1] |
Flange nut
|
See group 2B
|
| 45. |
941908
|
[1] |
Spring washer
|
See group 2B
|
| 46. |
861083
|
[1] |
Suction pipe
|
Combined oil bilge pipe and oil dipstick pipe., Late type
|
| 47. |
994555
|
[1] |
Hose clamp
|
For 861083
|
